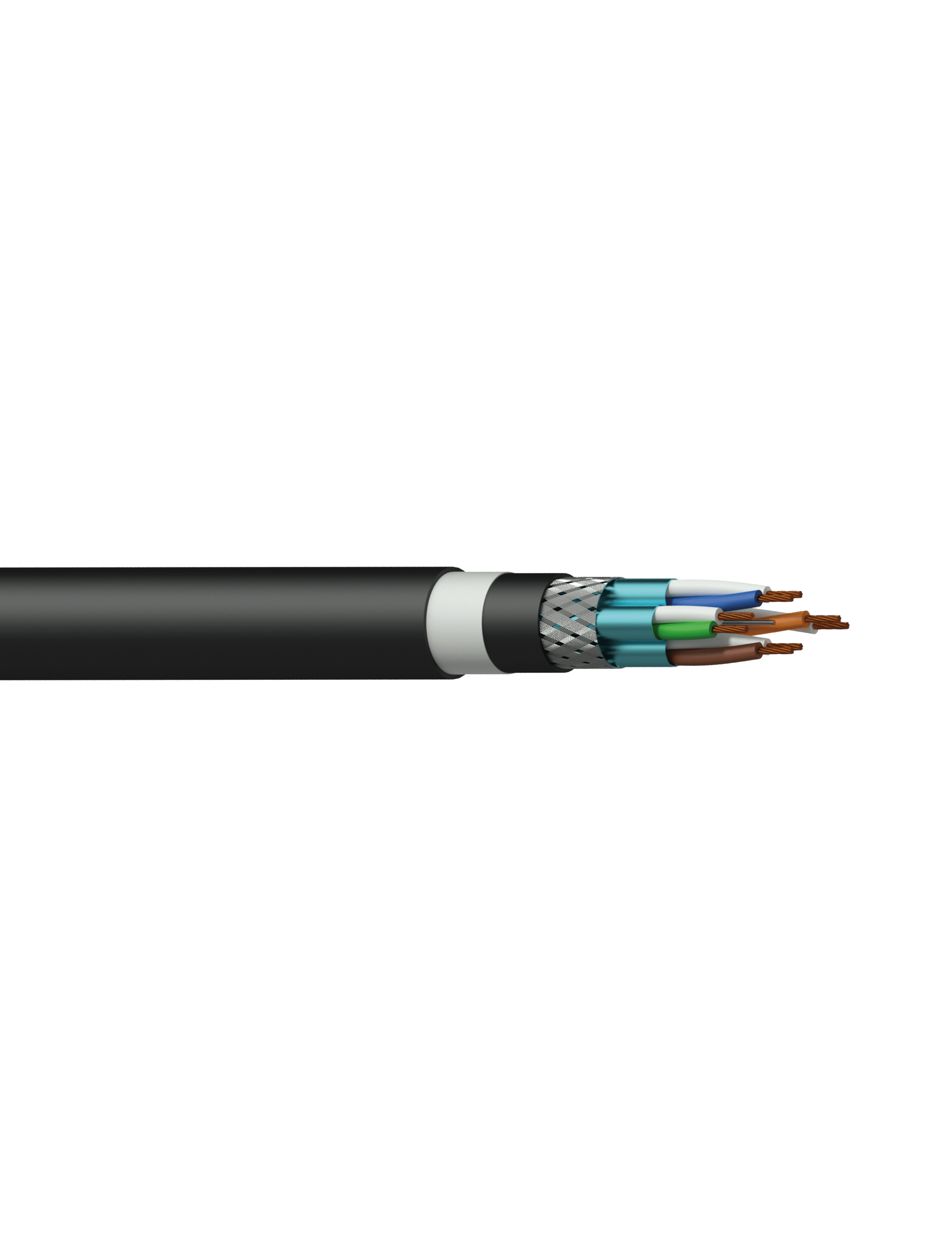

BCT65S/1 S/FTP CAT6A Networking Cable, BCT Series, Black, PVC, 100 m
Please sign in so that we can notify you about a reply
The BCT65S is a CAT6A networking cable featuring a Highflex™ outer jacket which is specifically designed for professional use in highly demanding applications. The conductor section of the BCT65S consists of 4 pairs with solid 24 AWG conductors which are individually shielded by an aluminum foil while the entire section is surrounded by an overall braiding. Due to the double shielding, better performance in terms of crosstalk and system noise is achieved resulting in a higher bandwidth and improved immunity against noise and interference caused by external devices. The combination with hard and solid inner jacket materials and soft outer jacket materials provides great flexibility with a solid touch. Even after numerous times of winding and unwinding. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.
Features- 24 AWG thin and dense stranded conductors
- Double shielding (Al-foil + Braiding)
- Highflex™ solid & flexible jacket
- 8.7 mm (Ø) outer diameter
Brand:
Procab
Specifications
Product Type:
S/FTP CAT6A Networking Cable
Wire Gauge:
24AWG
Conductor Type:
Stranded
Conductor Material:
Bare Copper
Outer Diameter:
0.8cm
Series:
BCT
Shielding Material:
Aluminium/Mylar
Colour:
Green/White/Green (Insulation), Blue/White/Blue (Insulation), Orange/White/Orange (Insulation), Brown/White/Brown (Insulation), Black (Jacket)
Jacket Material:
PVC
Insulation Material:
FPE
Resistant Properties:
Flame Resistant
Performance
Impedance Rating:
100Ω
Capacitance:
≤5.6nF/100m (Mutual), ≤160nF/100m (Pair to Ground Capacitance Unbalance)
Power
Voltage Rating:
72V
Standards
Standards Met:
CE, RoHS2 2011/65/EU, REACH Regulation 1907/2006, EN 50267-2-1, IEC 60754, IEC 61034, IEC 60332-1, ISO/IEC11801, IEC61156, UL444, ANSI TIA-EIA 568C.2
Dimensions
Length:
100m
Shipping Weight:
20.4kg
