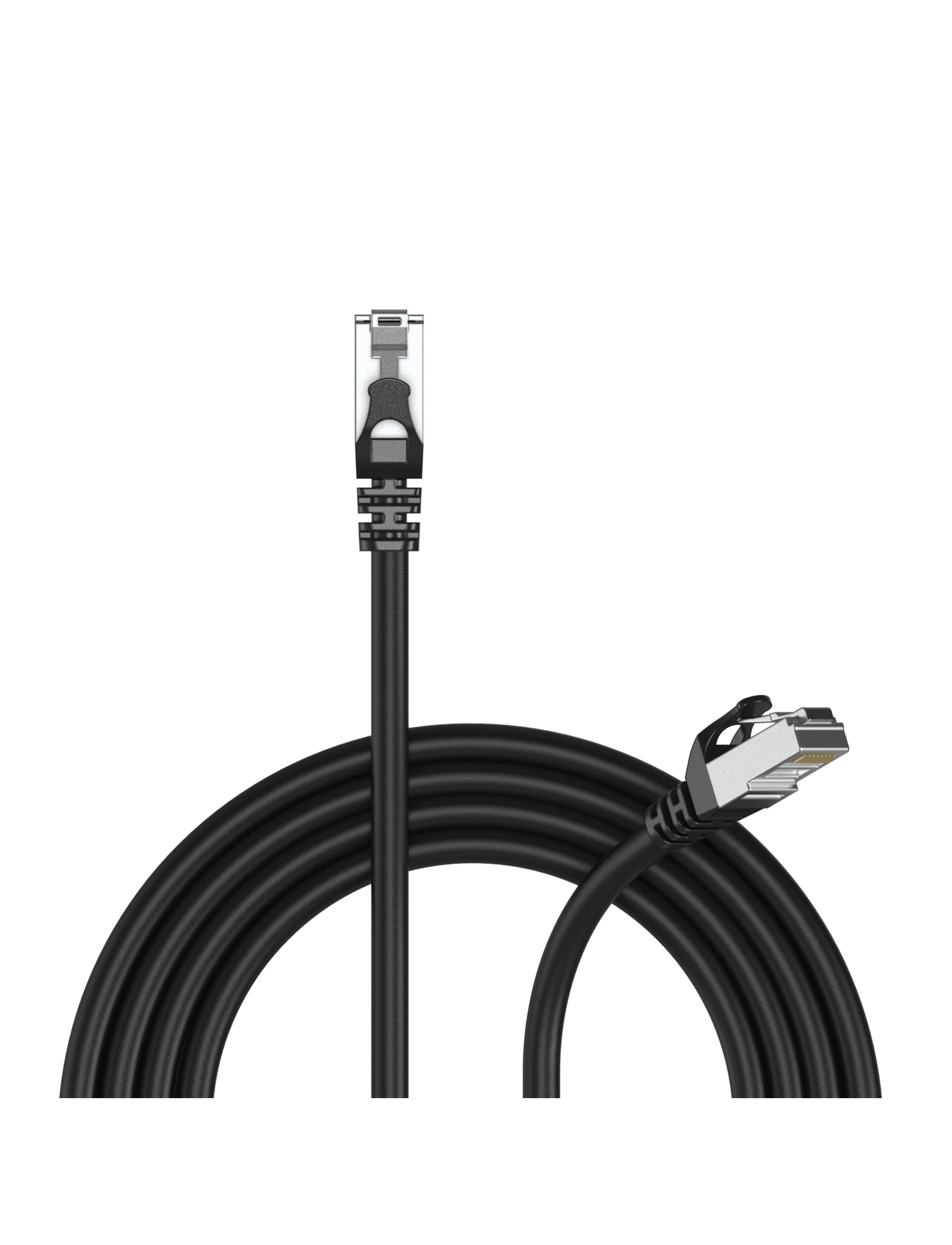

BSD560F/0.5 F/UTP CAT6 Networking Cable, BSD5 Series, Black, 0.5 m
Please sign in so that we can notify you about a reply
The BSD560F is a basic series CAT6 F/UTP networking cable, offering reliable interconnections in a wide variety of applications, ranging from general purpose office computer systems to digital AV network systems. Both ends are terminated by male RJ45 connectors with gold plated contacts.The conductor section consists of 4 pair solid 26 AWG conductors which guarantees an optimal signal transmission while the shielding consisting of an overall aluminum foil offers a high immunity to noise and interference caused by external devices. The low-smoke & halogen free jacket material allows usage in installations in public and other demanding buildings. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit. Supports Dante, Cobranet, Ethersound, HdbaseT and other AV network protocols.
Features- Flexible PVC jacket
- 26 AWG stranded conductors
- LSHF jacket
- Al-foil shielding
- 5.9 mm (Ø) outer diameter
- Oxygen free copper
- Wired according to ANSI/TIA/EIA 568B (straight)
Brand:
Procab
Specifications
Product Type:
F/UTP CAT6 Networking Cable
Wire Gauge:
26AWG
Connector A Gender:
Male
Connector B Gender:
Male
Connector A Type:
RJ45
Connector B Type:
RJ45
Conductor Type:
Stranded
Conductor Material:
Bare Copper
Outer Diameter:
0.5cm
Series:
Connect, BSD5
Shielding Material:
Aluminium/Mylar
Colour:
Green/White/Green (Insulation), Blue/White/Blue (Insulation), Orange/White/Orange (Insulation), Brown/White/Brown (Insulation), Black (Jacket)
Jacket Material:
LSHF
Insulation Material:
HDPE
Resistant Properties:
Flame Resistant
Performance
Impedance Rating:
100Ω
Capacitance:
≤5.6nF/100m (Mutual), ≤330nF/100m (Pair to Ground Capacitance Unbalance)
Power
Voltage Rating:
72V
Standards
Standards Met:
CE, RoHS2 2011/65/EU, REACH Regulation 1907/2006, EN 50267-2-1, IEC 60754, IEC 61034, IEC 60332-1, ANSI TIA-EIA 568B
Dimensions
Length:
0.5m
