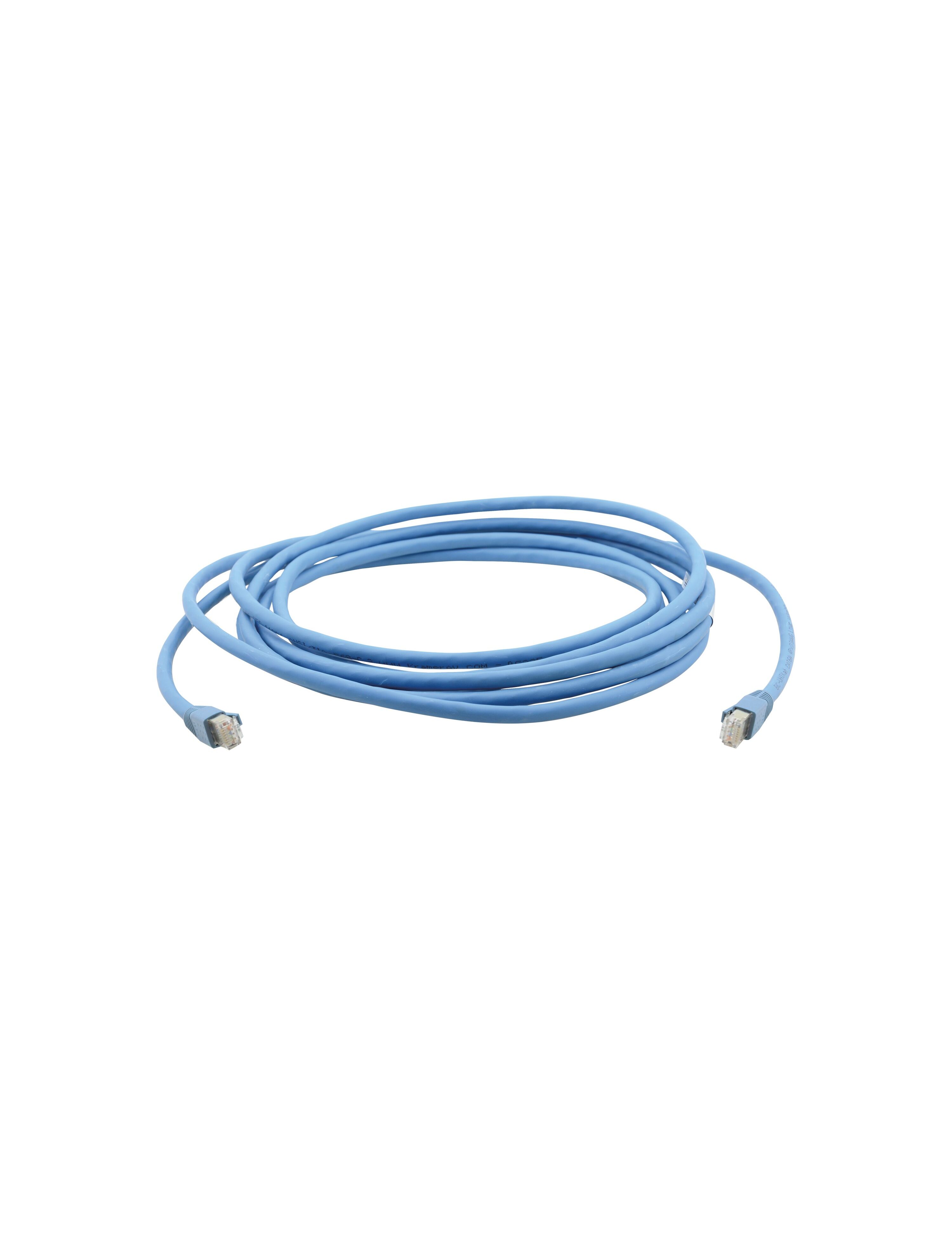

C-UNIKat-6 Four−Pair CAT6A U/FTP 4x2x23AWG Cable, 1.8 m
Please sign in so that we can notify you about a reply
Kramer's C−UNIKAT cable is a unified CAT6a cable that handles all the latest technology signals. Over four individually screened twisted pairs, this U/FTP CAT6a cable runs Kramer’s DGKat™ technology, 4K HDBaseT™ technology or LAN applications and ensures optimum signal performance.
Features
- Quality Construction -4 shielded twisted pairs (U/FTP) of 23AWG solid copper conductors are cabled together in an unshielded outer jacket.
- Optimized for Kramer Hardware -Use with any of Kramer’s wide range of twisted pair digital transmitter-receiver sets (DGKat™ and HDBaseT).
- High-Quality Shielded RJ-45 Connectors -50u gold plated contacts.
Brand:
Kramer
Part number:
99-3460006
Specifications
Product Type:
Four-Pair CAT6A U/FTP Video & LAN Cable Assembly
Wire Gauge:
23AWG
Connector A Gender:
Male
Connector B Gender:
Male
Connector A Type:
RJ45
Connector B Type:
RJ45
Conductor Type:
Solid
Conductor Material:
Annealed Copper
Outer Diameter:
0.72cm
Contact Material:
Gold
Shielding Material:
Aluminium/PET
Colour:
Blue
Insulation Material:
HDPE
Resistant Properties:
Low Smoke Density, Halogen Free, Fire Resistant
Performance
Impedance Rating:
100Ω
Capacitance:
≤42pF/m
Power
Voltage Rating:
30V
Standards
Standards Met:
EIA/TIA 568A, ISO/IEC 11801, IEC 60332-1, IEC 61034, IEC 60754
Dimensions
Length:
1.8m
