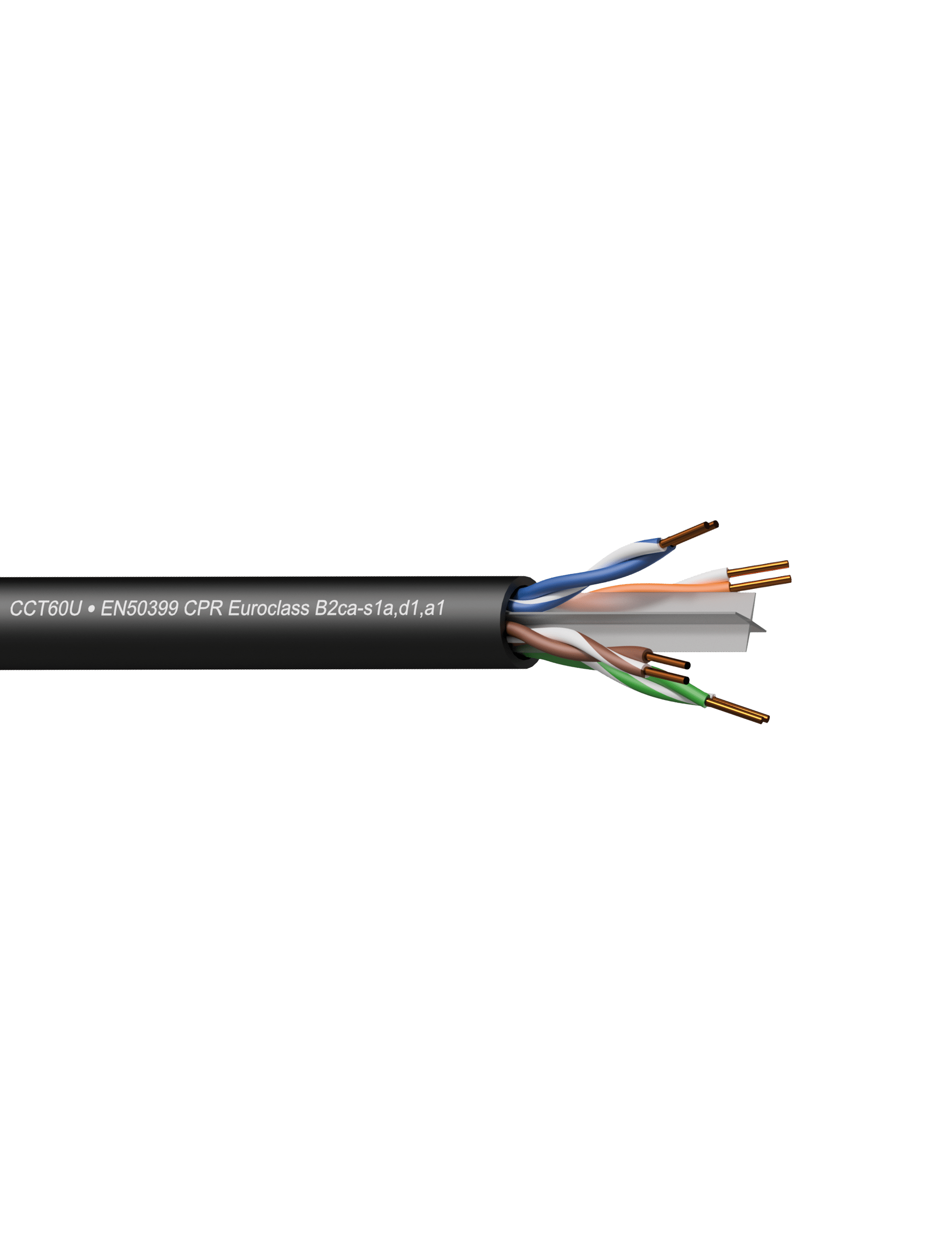

CCT60U-B2CA/3 U/UTP CAT6 Networking Cable, Black, 305 m
Please sign in so that we can notify you about a reply
The CCT60U-B2ca is a CAT6 installation networking cable compliant to the B2ca standard of the Construction Product Regulation (CPR) regarding fire and flammability resistance in fixed installations, minimizing toxic smokes and providing optimal resistance to spreading fire.In addition to its outstanding fire properties, the outer jacket of the cabling is smooth and durable for easy installation and pulling. The cable consists of 4 twisted pair cables with solid 23 AWG conductors and a “+” shaped separator. This way, crosstalk and system noise is reduced to a minimum, resulting in higher bandwidth and improved immunity against noise and interference caused by external devices. Providing an optimized solution for 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
Features
- EN50399 CPR Euroclass B2ca-s1a,d1,a1
- 250 Mhz performance, up to 1000Base-T
- "+" Shaped separator to reduce crosstalk
Brand:
Procab
Specifications
Product Type:
U/UTP CAT6 Networking Cable
Wire Gauge:
23AWG
Conductor Type:
Solid
Conductor Material:
Bare Copper
Outer Diameter:
0.6cm
Series:
Contractor
Colour:
Green/White/Green (Insulation), Blue/White/Blue (Insulation), Orange/White/Orange (Insulation), Brown/White/Brown (Insulation), Black (Jacket)
Jacket Material:
LSHF
Insulation Material:
HDPE
Resistant Properties:
Flame Resistant, UV Resistant
Performance
Impedance Rating:
100Ω
Capacitance:
≤5.6nF/100m (Mutual), ≤160nF/100m (Pair to Ground Capacitance Unbalance)
Power
Voltage Rating:
300V
Standards
Standards Met:
RoHS2 Compliant EU Directive 2011/65/EU, REACH Compliant EC 1907/2006, CPR Euroclass B2ca-s1,d1,a1, EN 60332-1-2, UL1581, IEC 61034, EN 50267-2-1, IEC 60754, TUV Rheinland
Dimensions
Length:
305m
Shipping Weight:
14kg
