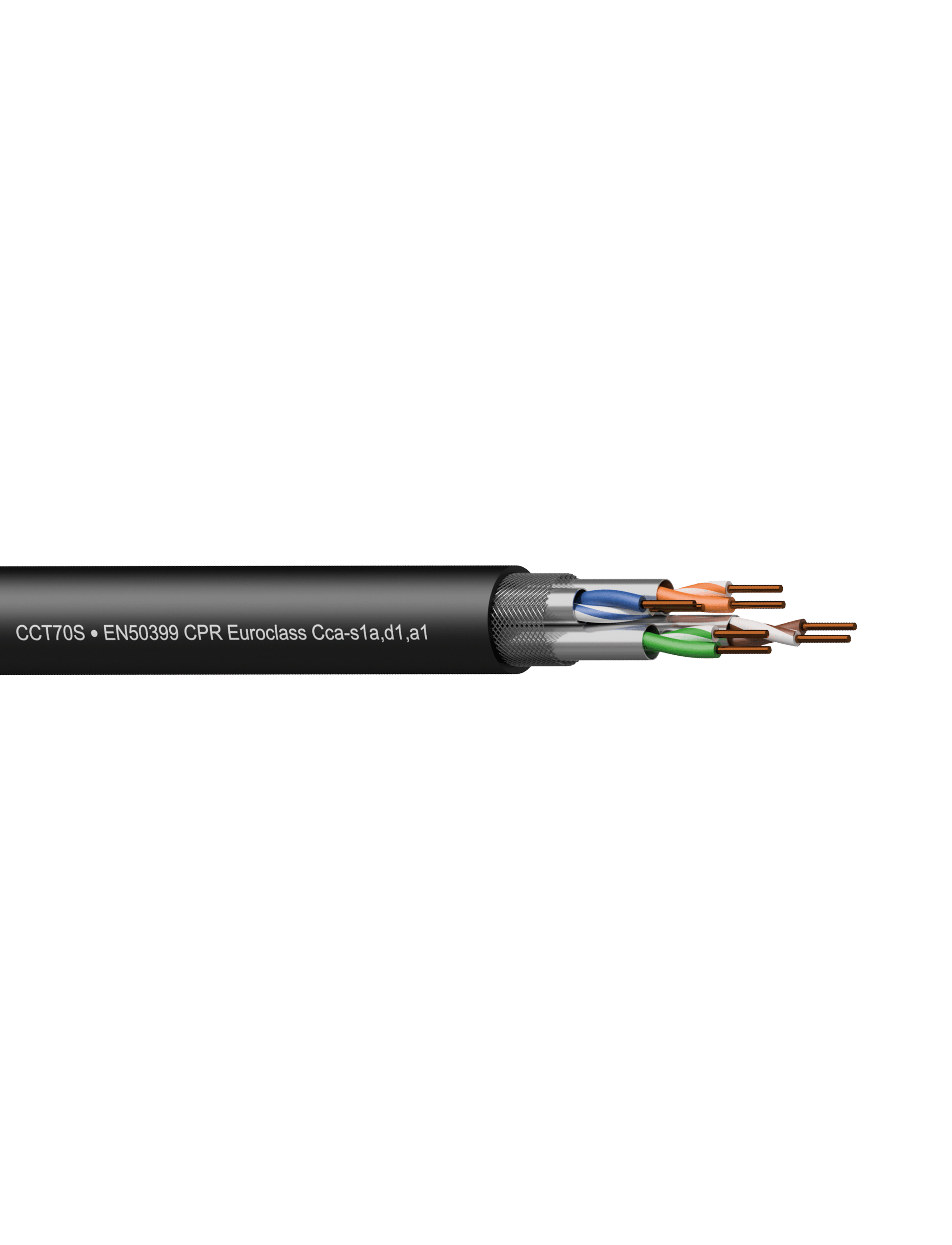

CCT70S-CCA/3 S/FTP CAT7 Networking Cable, Black, 305 m
Please sign in so that we can notify you about a reply
The CCT70S-Cca is a CAT7 installation networking cable compliant to the Cca standard of the Construction Product Regulation (CPR) regarding fire and flammability resistance in fixed installations, minimizing toxic smokes and providing optimal resistance to spreading fire.In addition to its outstanding fire properties, the outer jacket of the cabling is smooth and durable for easy installation and pulling. The cable consists of 4 individually shielded twisted pair cables with solid 23 AWG conductors, overall braided shielding is provided to reduce crosstalk and system noise to a minimum resulting in higher bandwidth and improved immunity against noise and interference caused by external devices. Providing an optimized solution for 100Base-T, 1000Base-TX and 10GBase-T gigabit networks.
Features
- EN50399 CPR Euroclass Cca-s1a,d1,a1
- 600 Mhz performance, up to 10GBase-T
- IEC 60332-1 NHFR compliant
- Al-foil individual & braided overall shielding
Brand:
Procab
Specifications
Product Type:
S/FTP CAT7 Networking Cable
Wire Gauge:
23AWG
Conductor Type:
Solid
Conductor Material:
Bare Copper
Outer Diameter:
0.7cm
Series:
Contractor
Shielding Material:
Aluminium
Colour:
Green/White/Green (Insulation), Blue/White/Blue (Insulation), Orange/White/Orange (Insulation), Brown/White/Brown (Insulation), Black (Jacket)
Jacket Material:
LSHF
Insulation Material:
FPE
Resistant Properties:
Flame Resistant, UV Resistant
Performance
Impedance Rating:
100Ω
Capacitance:
≤5.6nF/100m (Mutual), ≤330nF/100m (Pair to Ground Capacitance Unbalance)
Power
Voltage Rating:
300V
Standards
Standards Met:
RoHS2 Compliant EU Directive 2011/65/EU, REACH Compliant EC 1907/2006, CPR Euroclass Cca-s1a,d1,a1, EN 60332-1-2, UL1581, IEC 61034, EN 50267-2-1, IEC 60754, TUV Rheinland
Dimensions
Length:
305m
Shipping Weight:
20kg
