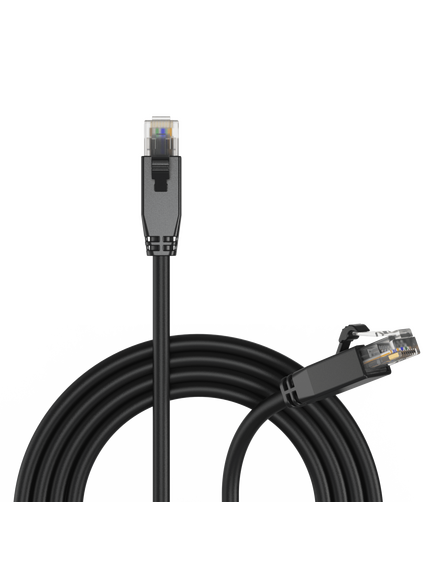

PRD500/5 CAT5E UTP Cable, PRD5x0 Series, Black, 5 m
Please sign in so that we can notify you about a reply
The PRD500 is a CAT5E UTP cable (PCT50SF) terminated with gold plated male RJ45 connectors at both ends. The PCT50SF networking cable specifically designed for the growing number of digital applications in the professional AV industry. Unlike any other CAT5E cable available on the market, the PCT50SF features Duraflex™ outer jacket constructed using a double-extrusion technique with a polyurethane outer and PVC inner jacket. The polyurethane outer jacket offers an excellent resistance against mechanical wear due to pulling, bending, cracking and UV exposure, while the PVC inner jacket keeps it easy to handle. The conductor section consists of 4 pairs with stranded 24 AWG conductors which guarantees an optimal signal transmission while the double shielding consisting of an overall aluminum foil surrounded by a braiding offers a high immunity to noise and interference caused by external devices. Supports 10Base-T, 100Base-TX and 1000Base-T gigabit networks.
Features- 24 AWG stranded conductors
- Double shielding (Al-foil + Braiding)
- Duraflex™ extremely robust PUR jacket
- 8.2 mm (Ø) outer diameter
- Oxygen free copper
- 60 mm transparent shrink sleeve
- NE8MC compatible
- 50 micron gold plated connectors
- Wired according to ANSI/TIA/EIA 568B (straight)
Brand:
Procab
Specifications
Product Type:
CAT5E UTP Cable
Wire Gauge:
24AWG
Connector A Gender:
Male
Connector B Gender:
Male
Connector A Type:
RJ45
Connector B Type:
RJ45
Conductor Type:
Stranded
Outer Diameter:
0.8cm
Series:
Prime, PRD5x0
Shielding Material:
Aluminium
Colour:
Black
Jacket Material:
PVC (Inner), PUR (Outer)
Resistant Properties:
Abrasion Resistant, Oil Resistant, Pull Resistant, Bend Resistant, Crack Resistant, UV Resistant, Flame Resistant
Performance
Impedance Rating:
100Ω
Standards
Standards Met:
CE, RoHS2 2011/65/EU, REACH Regulation 1907/2006, IEC 60332, HD Base T Compliant
Dimensions
Length:
5m
