MCR158 Balanced Signal Multicore Cable, MCR Series, Black, 1 m
Please sign in so that we can notify you about a reply

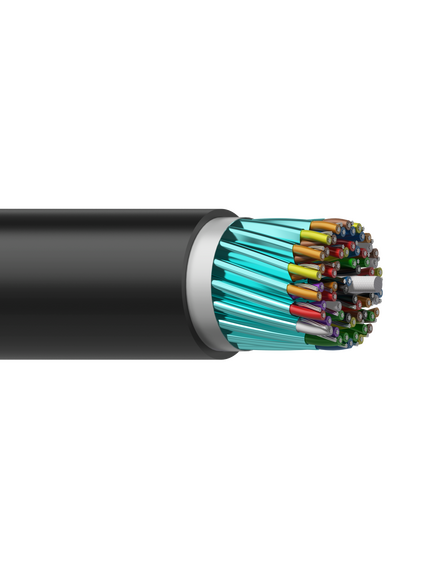

The MCR audio multipair cable is a very strong and rugged type of cable, suitable for indoor and outdoor applications. Each audio pair consists of two insulated and twisted conductors of 0.22 mm² and a stranded drain wire of 0.22 mm² to prevent any influence of hum, noise or electromagnetic fields from external equipment. Each balanced audio pair has an aluminium foil separator. All audio pairs are also fitted with a general paper foil packing and a strong Black PVC jacket. The PROCAB MCR multipair cable is suited for all kinds of applications such as stage box connections, live concerts, mobile installations and etc,.
Features
- 24 AWG stranded conductors
- Durable & strong jacket
- Individual foil shielding with drain wire
- Color coded pair identification
Brand:
Procab
Specifications
Product Type:
Balanced Signal Multicore Cable
Wire Gauge:
24AWG
Conductor Diameter:
0.02cm
Conductor Material:
Tinned Copper
Outer Diameter:
2.4cm
Series:
MCR
Shielding Material:
Aluminium Foil
Colour:
Black
Jacket Material:
PVC
Performance
Capacitance:
74pF/m@1kHz (Conductor/Shield), 25pF/m@1kHz (Conductor/Conductor)
Standards
Standards Met:
CE, Low Voltage Directive 2014/35/EU, RoHS2 Directive 2011/65/EU, REACH Regulation: 1907/2006
Dimensions
Length:
1m
