CMX222-CCA/1 DMX-AES (110 Ohm) Digital Signal Cable,cmX222-CCA Series, Black, 100 m
Please sign in so that we can notify you about a reply

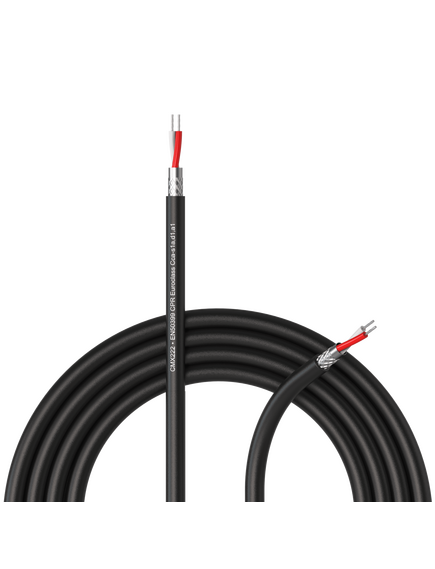

The CMX222-Cca series are 2-core 110 Ohm DMX-AES Digital signal cables compliant to the Cca standards of the Construction Product Regulation (CPR) regarding fire and flammability resistance in fixed installations, minimizing toxic smokes and providing optimal resistance to spreading fire.
In addition to its outstanding fire properties, the outer jacket of the cabling is smooth and durable for easy installation and pulling. The stranding keeps the cable flexible and easy to handle. The cable can be used in both indoor and outdoor or in humid environments.
Features
- 22 AWG (0.34 mm²) thin and dense stranded conductors
- EN50399 CPR Euroclass Cca-s1a,d1,a1
- Class 5 IEC 60228 compliant
Brand:
Procab
Specifications
Product Type:
110Ω DMX-AES Digital Signal Cable
Wire Gauge:
22AWG
Outer Diameter:
0.5cm
Number of Conductors:
2
Cross Sectional Area:
2x0.3sq mm
Series:
Contractor, CMX222-Cca
Maximum Operating Temperature:
+80°C (Fixed), +80°C (Mobile)
Colour:
White/Red (Insulation), Black (Jacket)
Jacket Material:
Polyolefin
Applications:
AV, IT
Insulation Material:
Polypropylene
Resistant Properties:
Fire Resistant, Flame Resistant
Minimum Operating Temperature:
-15°C (Fixed), -5°C (Mobile)
Performance
Impedance Rating:
110Ω
Capacitance:
38.88pF/m@1 (±10%)kHz
Power
Voltage Rating:
100V
Standards
Standards Met:
IEC 60332, EN50399 CPR Euroclass Cca-s1a,d1,a1, EN50575:2014+A1:2016
Dimensions
Length:
100m
