PMX222/1 DMX-AES (110 Ohm) Cable, PMX Series, Dark Grey, 100 m
Please sign in so that we can notify you about a reply

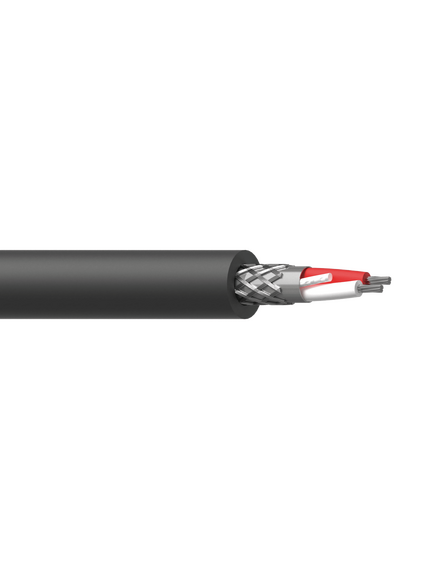

The PMX222 is a 110 Ohm DMX-AES cable which is especially developed for professional use in highly demanding applications. It’s 22 AWG (0.34 mm²) tinned copper conductors surrounded by an Aluminum foil and high coverage tinned copper braiding provide a double layered shielding. This ensures an optimal signal transmission with high immunity against noise and interference caused by external devices. The combination of stranded conductors and the smooth flexible PVC outer jacket provides a great flexibility with a solid feel. The dark grey outer jacket further improves the ease of use by making it easy to distinguish these 110 Ohm cables from standard microphone cables while remaining discrete in installations.
Features- 22 AWG thin and dense stranded conductors
- Double shielding (Al-foil + Braiding)
- Highflex™ solid & flexible jacket
- 110 Ohm digital signal cable
- Easy pulling capabilities
Brand:
Procab
Specifications
Product Type:
110Ω DMX-AES Cable
Wire Gauge:
22AWG
Outer Diameter:
0.6cm
Number of Conductors:
2
Cross Sectional Area:
2x0.3sq mm
Series:
PMX
Maximum Operating Temperature:
+80°C (Fixed), +70°C (Mobile)
Colour:
White/Red (Insulation), Dark Grey (Jacket)
Jacket Material:
PVC
Applications:
Rental, MI
Minimum Operating Temperature:
-40°C (Fixed), -25°C (Mobile)
Performance
Impedance Rating:
110Ω
Capacitance:
79pF/m@1MHz (Conductor/Shield), 50pF/m@1MHz (Conductor/Conductor)
Standards
Standards Met:
CE, Low Voltage Directive 2014/35/EU, RoHS2 Directive 2011/65/EU, REACH Regulation: 1907/2006
Dimensions
Length:
100m
