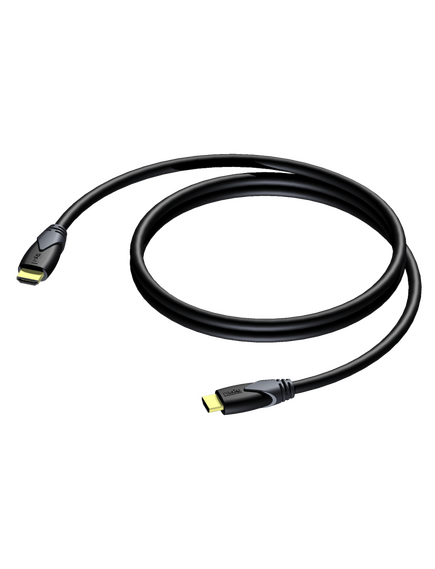

CLV200/7.5 HDMI High Speed Cable with Ethernet, CLV Series, Black, LSHF, 7.5 m
Please sign in so that we can notify you about a reply
The CLV200 is a high quality HDMI cable featuring a low smoke & halogen free outer jacket compliant to related standards for installations in public installations. The smooth and durable outer jacket guarantees a great installers convenience. It consist of a conductor section with 5 individually shielded 24 AWG pairs and four separate wires, guaranteeing high speed HDMI with ethernet up to 10 meters and a standard speed HDMI with ethernet for longer distances. The highly effective overall shielding consists of an Al-mylar foil with high coverage braiding, which results in a triple shielding offering excellent immunity against noise and interference caused by external devices.
Features- LSHF jacket
- Oxygen free copper
- Triple shielding (2 x Al-foil + braiding)
Brand:
Procab
Specifications
Product Type:
HDMI High Speed with Ethernet Cable
Wire Gauge:
24AWG
Connector A Gender:
Male
Connector B Gender:
Male
Connector A Type:
HDMI A
Connector B Type:
HDMI - Type A
Outer Diameter:
0.8cm
Cable Bend Radius:
7cm (Fixed), 8.8cm (Mobile)
Series:
Classic, CLV
Screening Type:
Triple Shielding
Shielding Material:
Aluminium/Mylar
Maximum Operating Temperature:
-20 to +80°C (Fixed), -15 to +60°C (Mobile)
Colour:
White/Red (Insulation), Black (Jacket)
Jacket Material:
LSHF
Connector Plating:
Gold
Performance
Maximum Resolution:
1080pixels
Standards
Standards Met:
CE, RoHS2 Compliant: EU Directive 2011/65/EU, REACH Compliant: EC 1907/2006, IEC 61034, EN 50267-2-1, IEC 60754
Dimensions
Length:
7.5m
