PRX102/100 HighFlex Balanced Microphone Cable, Black, 100 m
Please sign in so that we can notify you about a reply

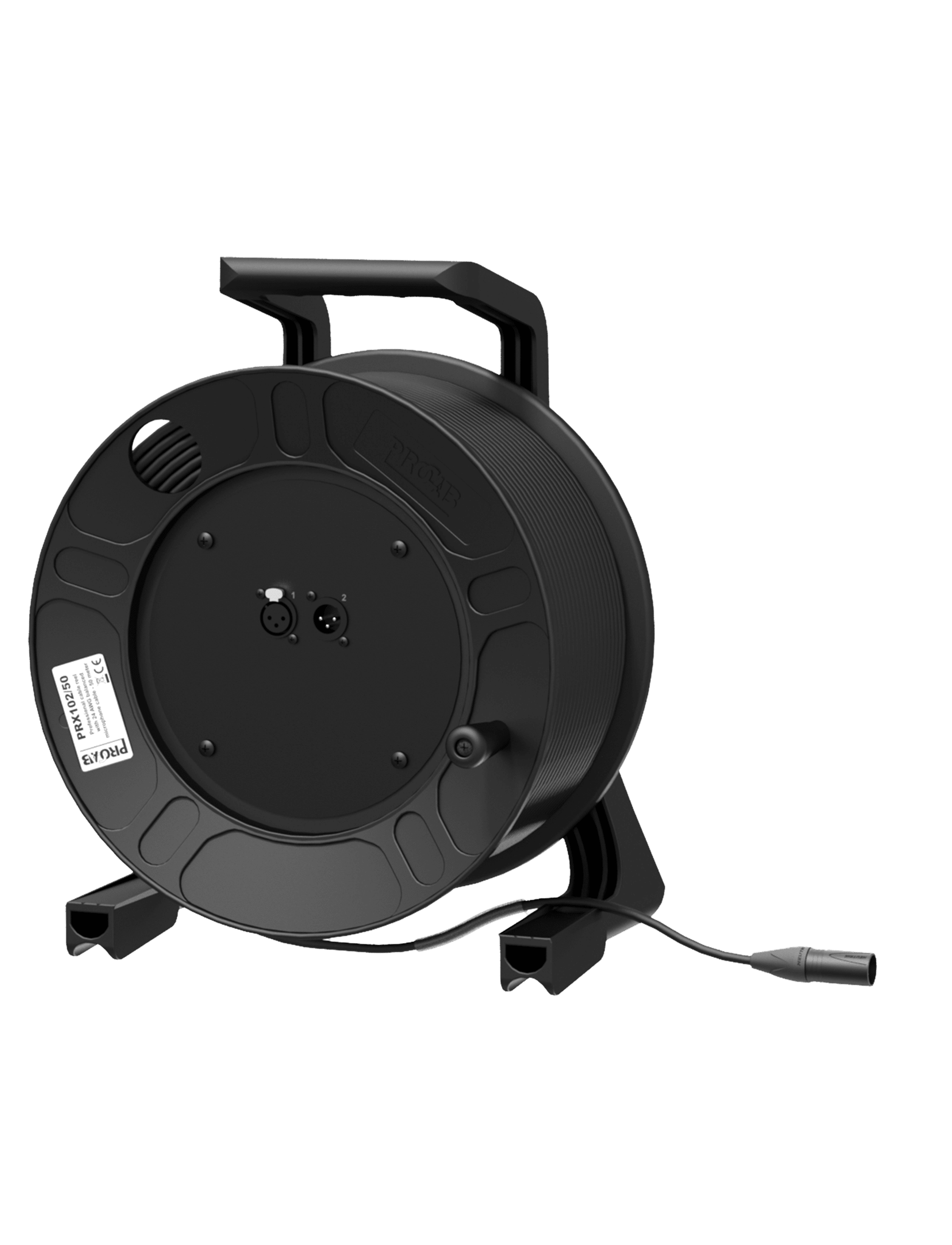

The PRX102 is a HighFlex balanced microphone cable (RMC306) assembled on a lightweight, extremely strong and impact resistant plastic reel (CDM310). The conductor section is constructed using two 24 AWG stranded conductors which are surrounded by a braided shielding, offering a high immunity against noise and interference caused by external devices. The cable is jacketed using highly flexible and durable PVC materials, which guarantee a high flexibility and reliability for mobile applications. The cable end is terminated using a male Neutrik XLR connector (Silver contacts, black metal XLR housing) while the chassis side is fitted with both a male and femaleNeutrikXLR connector allowing linkthrough.
Features- Silver contacts, black metal XLR housing
Brand:
Procab
Specifications
Product Type:
HighFlex Balanced Microphone Cable
Wire Gauge:
24AWG
Connector A Gender:
Female, Male
Connector B Gender:
Male
Connector A Type:
XLR
Connector B Type:
XLR
Outer Diameter:
0.6cm
Number of Conductors:
2
Cross Sectional Area:
2x0.2sq mm
Series:
PRX
Maximum Operating Temperature:
+80°C (Fixed), +70°C (Mobile)
Colour:
White/Red (Insulation), Black (Jacket)
Jacket Material:
PVC
Applications:
Rental, MI
Resistant Properties:
Impact Resistant
Minimum Operating Temperature:
-40°C (Fixed Installation), -25°C (Mobile Installation)
Power
Voltage Rating:
300V
Standards
Standards Met:
CE, RoHS2 2011/65/EU, REACH Regulation 1907/2006
Dimensions
Length:
100m
