BXD630/10 USB 3.2 Gen 1 Extender Cable, Black, 10 m
Please sign in so that we can notify you about a reply

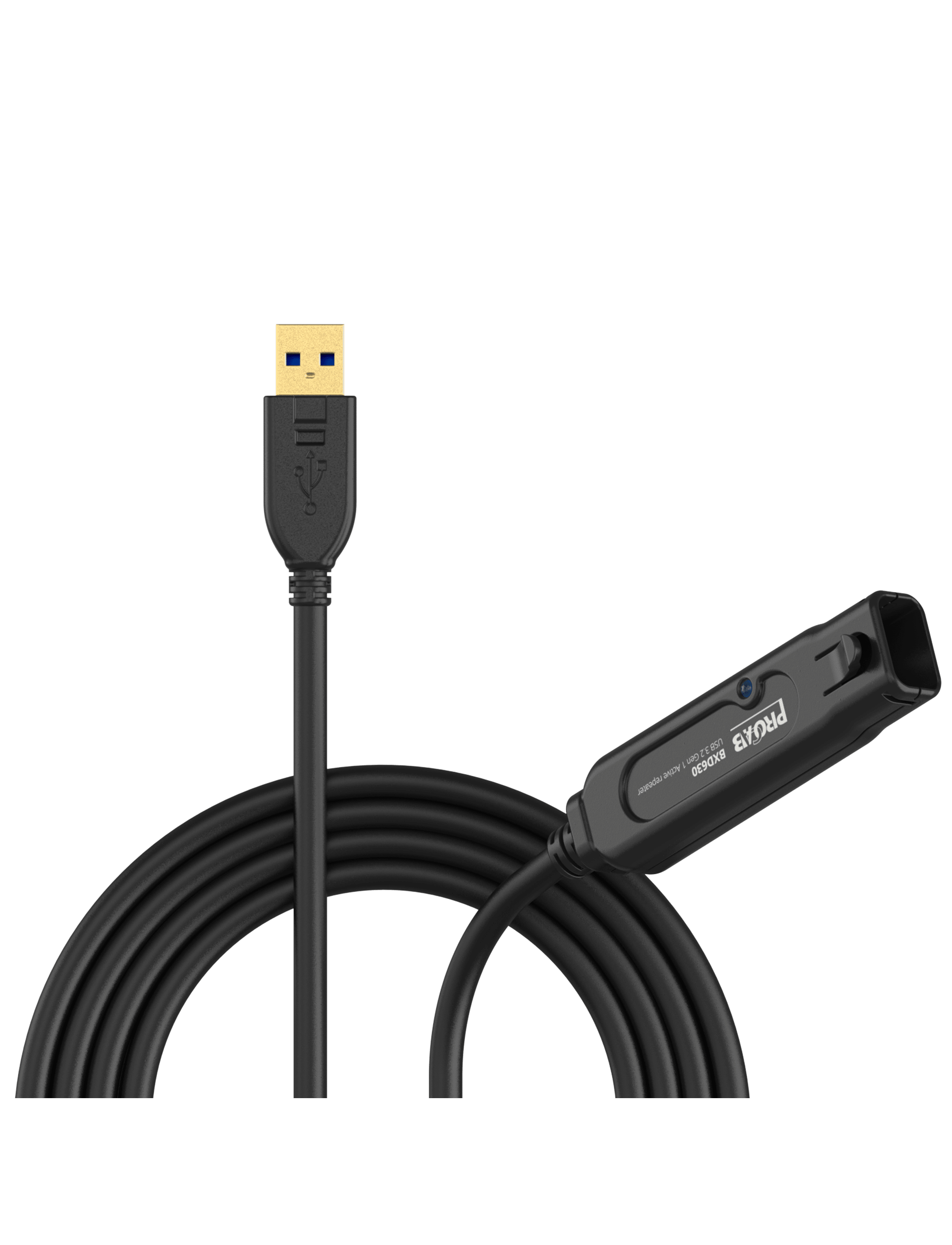

The BXD630 is an active USB 3.2 Gen 1 extender cable, allowing extension between a USB host and devices up to 10 meters distance and with bitrates up to 5 Gbps. The cable is constructed using high-quality materials with high purity oxygen-free copper and flexible PVC. One side is terminated using a male USB type A connector, while the other is fitted with an active extender with a lockable female USB type A connector. Both ends feature a unique lockable mechanic design that securely links the male and female ends. It comes in a fixed length of 10 meters and a maximum of 5 extender cables can be daisy-chained with each, resulting in a maximum distance of up to 50 meters.When using a single BXD630, no external power adapter has to be applied. When daisy-chaining two BXD630’s, an (optional) power supply should be applied to the last (device side) cable in the chain. When daisy chaining more than two (up to 5) BXD630’s, an (optional) power supply should be applied to the first (host side) and last (device side) cable in the chain.Multi-platform support (Windows & Mac) and bus-powered construction (up to 3A or max. 15W) guarantee true plug & play operation.
Features
- Supports USB 3.2 Gen 1 - 5 Gbps data rate
- Backwards compatible with USB 2.0/1.1
- USB Bus powered (self powered) up to 3A (max 15W)
- Optional external power adapter possibility for high power device
- Daisy chain connection possibility (up to 50m)
- Over current detection & protection
Brand:
Procab
Specifications
Product Type:
USB 3.2 Gen 1 Extender Cable
Connector A Gender:
Male
Connector B Gender:
Female
Connector A Type:
USB A
Connector B Type:
USB A
Series:
Connect
Power Rating:
15W
Colour:
Black
Applicable Devices:
Windows, Mac
Jacket Material:
PVC
Connector Plating:
Gold
Performance
Data Transfer Rate:
5Gbps
Dimensions
Length:
10m
