BC-1X-100M RG-6 super high resolution (18AWG Bare copper) cable, 100 m
Please sign in so that we can notify you about a reply

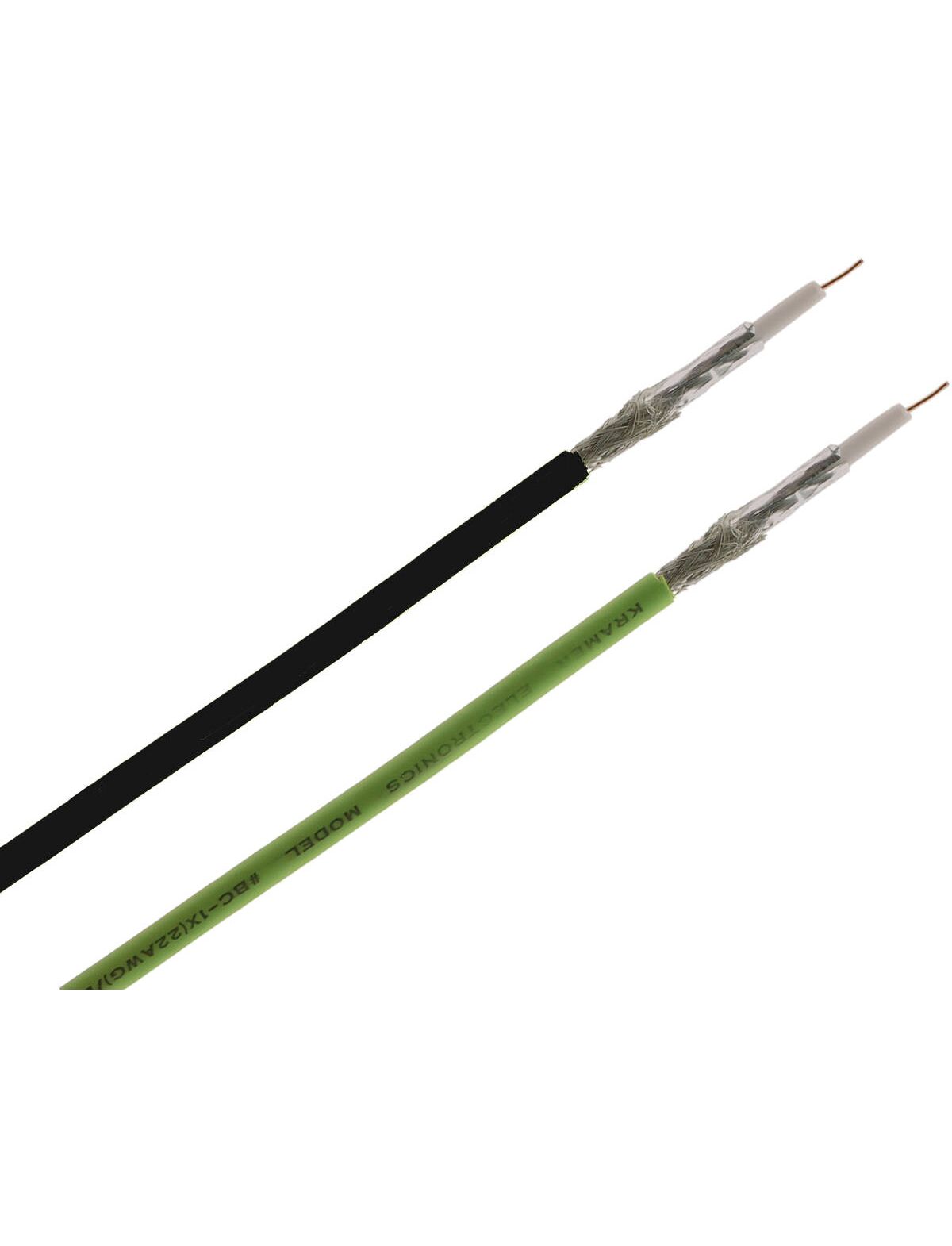

Kramer’s BC−1X is a super high−resolution RG−6 style coaxial cable perfect for long distance composite and HD−SDI runs that require precision performance with analog or digital video signals.
Features
- Quality Construction -18AWG solid center conductor and dual shield design consisting of aluminum braid and dual aluminum Mylar foil. Rugged and flexible with low attenuation.
- Universal Compatibility -Compatible with Kramer’s compression connectors as well as typical crimp systems.
- Length -Available in reels of 100/300m (328/984ft).
Brand:
Kramer
Part number:
99-0101100
Specifications
Product Type:
1 Coax Super High-Resolution Bulk Cable
Wire Gauge:
18AWG
Coaxial Type:
RG6
Outer Diameter:
0.69cm
Signal Type:
3G HD-SDI
Colour:
Dark Grey
Jacket Material:
PVC
Insulation Material:
Skin Foam
Performance
Impedance Rating:
75Ω
Attenuation:
12.9dB@3000MHz
Capacitance:
53pF/m
Power
Voltage Rating:
300V
Standards
Standards Met:
UL/cUL CL2, CSA FT4, RoHS 2011/65/EU
Dimensions
Length:
100m
