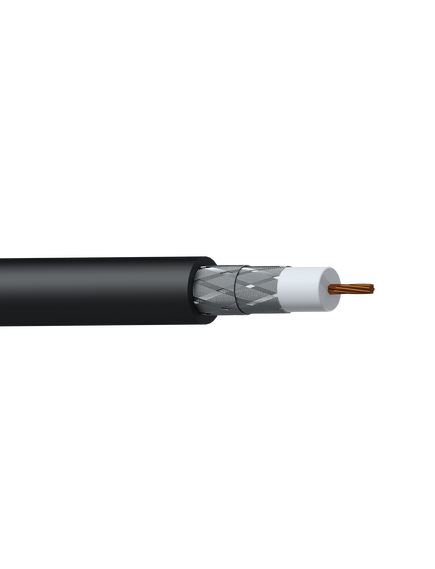

PCX160/1 Coaxial Video Cable, Black, PVC, 100 m
Please sign in so that we can notify you about a reply
The PCX160 is an RG6/U coaxial video cable specifically designed for digital SDI, HD-SDI and 3G-SDI video transmissions in mobile applications. Its Highflex™ PVC outer jacket in combination with other high-grade materials guarantee a great flexibility, long service life span and accurate signal transmission under all circumstances. The conductor section of 19 AWG is constructed using 7 strands of high purity copper with a thickness of 0,345 mm, resulting in an overall section of 0,65 mm² surrounded by a foamed polyethylene isolator. The dual braided overall shielding consists of two individual layers with a coverage percentage of 95%, guaranteeing the best possible immunity against noise and interference. Compatible with Neutrik NBNC75BRU11.
Features- Highflex™ solid & flexible jacket
- HD-SDI up to 85 meter
- 3G-SDI up to 58 meter
Brand:
Procab
Specifications
Product Type:
75Ω Coaxial Video Cable
Wire Gauge:
19AWG
Coaxial Type:
RG6/U
Outer Diameter:
0.7cm
Series:
PCX
Colour:
White (Insulation), Black (Jacket)
Jacket Material:
PVC
Insulation Material:
FPE
Resistant Properties:
Flame Resistant, UV Resistant
Performance
Impedance Rating:
75Ω
Capacitance:
53pF/m
Power
Voltage Rating:
300V
Standards
Standards Met:
RoHS2 Compliant: EU Directive 2011/65/EU, REACH Compliant: EC 1907/2006, IEC 60332-1, UL1581, IEC 61034, EN 50267-2-1, IEC 60754
Dimensions
Length:
100m
Shipping Weight:
18.3kg
