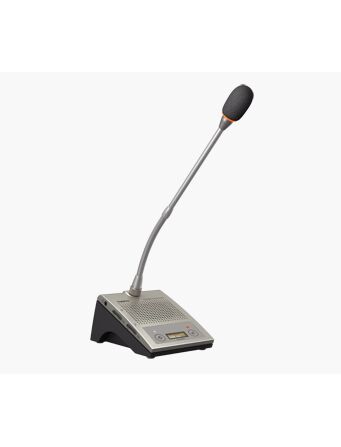

HCS-4338NCS_D/50 Fully Digital Congress System Chairman Unit, 64 Channels, Charcoal Grey Panel, Tabletop, 128x36 OLED
Please sign in so that we can notify you about a reply
The stylish and ergonomically designed chairman unit has all the necessary facilities to enable the user to chair a conference. It has excellent immunity to RF interference from mobile phones. Similar in appearance to HCS-4338NDS/50 Delegate Unit, the HCS-4338NCS/50 Chairman Unit includes a microphone prioritybutton. When pressed, the priority button causes all currently active delegate microphones to be switched off temporarily or permanently, allowing the chairman to take control of the meeting. A graphic OLED can display channel number and language name. Channel selection is automatically limited to the number of language channels available. The loudspeaker offers superior acoustics with minimal feedback for enhanced intelligibility.
Features- Elegant and ergonomic design
- Exquisite and delicate tabletop design for ease of use and transport
- Cable coming out of the base for a tidier wiring
- Hi-Fi loudspeaker
- Priority button
- Pluggable microphone
- OLED screen with high brightness and contrast, wide viewing angle and low power consumption
- “Closed Loop - Daisy Chain” connection topology
- Transmitting up to 64 CHs high quality digital audio signals on a dedicated 6-pin cable
- Supporting 48 kHz audio sampling rate, all 64 channels perfectly reproducing audio frequencies between 30 Hz and 20 kHz
- Built-in channel selector consists of up/down channel select buttons and SI information display
- Water resistant and noise-free buttons with long service life
- Excellent immunity to RF interference from mobile phones
- Separate adjustment of gain and EQ (5 band) of each microphone for the perfect sound
- Supporting "PnP" (plug and play)
Brand:
Taiden
Specifications
Product Type:
Fully Digital Congress System Chairman Unit
Polar Pattern:
Unidirectional
Display Type:
128x36 OLED
Microphone Type:
Electret Condenser
Mounting Type:
Tabletop Mount
Number of Channels:
64
Colour:
Charcoal Grey (Panel)
Applications:
Conference
Performance
Impedance Rating:
>16Ω (Load-Headphone), 2kΩ (Input-Microphone)
Headphone Output:
10mW
Sensitivity Rating:
-46dBV/Pa
Frequency Rating:
30Hz to 20kHz (Headphone), 50Hz to 20kHz (Microphone)
Directivity@ 0?°/180?°:
>20dB
Maximum Sound Pressure Level:
125dB
Equivalent Noise:
20dBA
Inputs and Ports
Connector Type:
3.5mm Jack Stereo
Power
Voltage Rating:
5V DC
Standards
Standards Met:
ISO 22259
Dimensions
Width:
10.1cm (without Mic)
Depth:
13.3cm (without Mic)
Height:
7.3cm (without Mic)
Weight:
1kg (Including Stem Microphone)
