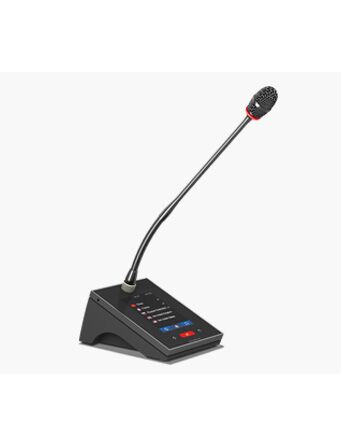

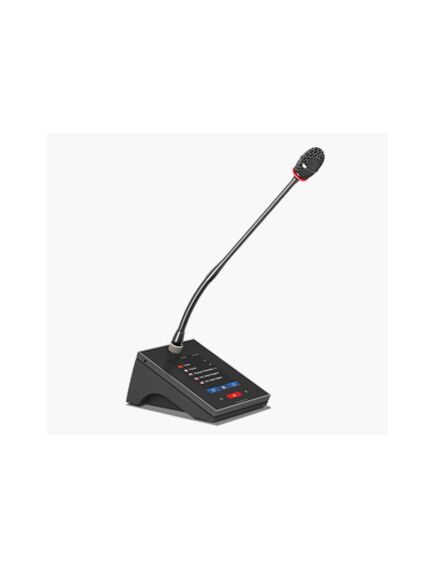

HCS-4891CVS_B/50 Fully Digital Congress System Chairman Unit, Black, 64 Channels x2, 3 Voting Keys
Please sign in so that we can notify you about a reply
The stylish and ergonomically designed chairman unit has all the necessary facilities to enable the user to chair a conference. It has excellent immunity to RF interference from mobile phones. Similar in appearance to HCS-4891DVS/50 Delegate Unit, the HCS-4891CVS/50 Chairman Unit includes a microphone priority button. When pressed, the priority button causes all currently active delegate microphones to be switched off temporarily or permanently, allowing the chairman to take control of the meeting. A 4.3" touch screen can display speaking list, sign-in and voting information, channel number and language name, operation menu, etc. Channel selection is automatically limited to the number of language channels available.
Features
- Elegant and ergonomic design
- Exquisite and delicate tabletop design for ease of use and transport
- Cable coming out of the base for a tidier wiring
- Priority button
- Pluggable microphone
- 3 voting keys
- Exquisite and sleek 4.3" touch screen for information display of meeting proceedings
- Supports custom boot screen and background picture
- “Closed Loop - Daisy Chain” connection topology
- 64 CHs×2 interpretation with independent volume control. Two delegates may share one unit thus cutting the facility cost by half
- Transmitting up to 64 CHs high quality digital audio signals on a dedicated 6-pin cable
- Supporting 48 kHz audio sampling rate, all 64 channels perfectly reproducing audio frequencies between 30 Hz and 20 kHz
- Water resistant and noise-free button with long service life
- Excellent immunity to RF interference from mobile phones
- Separate adjustment of gain and EQ (5 band) of each microphone for the perfect sound
- Supporting “PnP” (plug and play)
Brand:
Taiden
Specifications
Product Type:
Fully Digital Congress System Chairman Unit
Polar Pattern:
Unidirectional
Display Size:
4.3in
Display Type:
Touch Screen
Microphone Type:
Electret Condenser
Mounting Type:
Tabletop Mount
Number of Voting Keys:
3
Number of Channels:
64x2
Colour:
Black
Applications:
Conference
Performance
Impedance Rating:
>16Ω (Load-Earphone), 2kΩ (Input-Microphone)
Headphone Output:
10mW
Sensitivity Rating:
-46dBV/Pa
Frequency Rating:
30Hz to 20kHz (Headphone), 50Hz to 20kHz (Microphone)
Directivity@ 0?°/180?°:
>20dB
Maximum Sound Pressure Level:
125dB
Equivalent Noise:
20dBA
Inputs and Ports
Connector Type:
3.5mm Jack Stereo
Power
Voltage Rating:
5V DC
Standards
Standards Met:
ISO 22259
Dimensions
Width:
9.9cm (without Microphone)
Depth:
14.5cm (without Microphone)
Height:
6.8cm (without Microphone)
Weight:
1kg (Including Stem Microphone)
