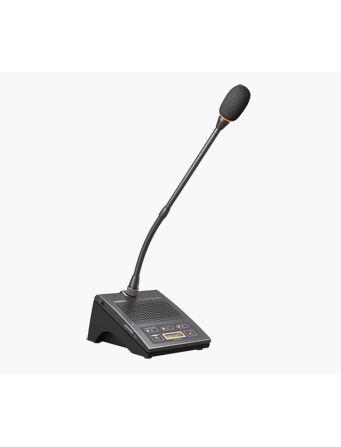

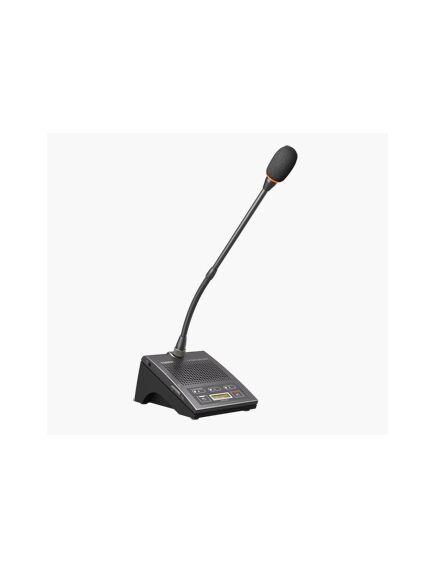

HCS-4338NDV_D/50 Fully Digital Congress System Delegate Unit, Charcoal Grey Panel, 3 Voting Keys, Tabletop, OLED
Please sign in so that we can notify you about a reply
The multi-functional delegate unit meets the demands of even the largest conferences. It provides facilities for speaking, registering a request-to-speak, registering a request-to-respond, listening and voting. Excellent immunity to RF interference from mobile phones. A graphic OLED screen can display operation menu. The loudspeaker offers superior acoustics with minimal feedback for enhanced intelligibility.
Features- Elegant and ergonomic design
- Exquisite and delicate tabletop design for ease of use and transport
- Cable coming out of the base for a tidier wiring
- Hi-Fi loudspeaker
- Pluggable microphone
- 3 voting keys
- OLED screen with high brightness and contrast, wide viewing angle and low power consumption
- “Closed Loop - Daisy Chain” connection topology
- Water resistant and noise-free buttons with long service life
- Excellent immunity to RF interference from mobile phones
- Separate adjustment of gain and EQ (5 band) of each microphone for the perfect sound
- Supporting "PnP" (plug and play)
- Built-in multi-channel intercom facility
Brand:
Taiden
Specifications
Product Type:
Fully Digital Congress System Delegate Unit
Polar Pattern:
Unidirectional
Display Type:
OLED
Microphone Type:
Electret Condenser
Mounting Type:
Tabletop Mount
Number of Voting Keys:
3
Colour:
Charcoal Grey (Panel)
Applications:
Conference
Performance
Impedance Rating:
>16Ω (Load-Earphone), 2kΩ (Input-Microphone)
Headphone Output:
10mW
Sensitivity Rating:
-46dBV/Pa
Frequency Rating:
30Hz to 20kHz (Headphone), 50Hz to 20kHz (Microphone)
Directivity@ 0?°/180?°:
≥20dB
Maximum Sound Pressure Level:
125dB
Equivalent Noise:
20dBA
Inputs and Ports
Connector Type:
3.5mm Jack Stereo
Power
Voltage Rating:
5V DC
Standards
Standards Met:
ISO 22259
Dimensions
Width:
10.1cm (without Microphone)
Depth:
13.3cm (without Microphone)
Height:
7.3cm (without Microphone)
Weight:
1kg (Including Stem Microphone)
