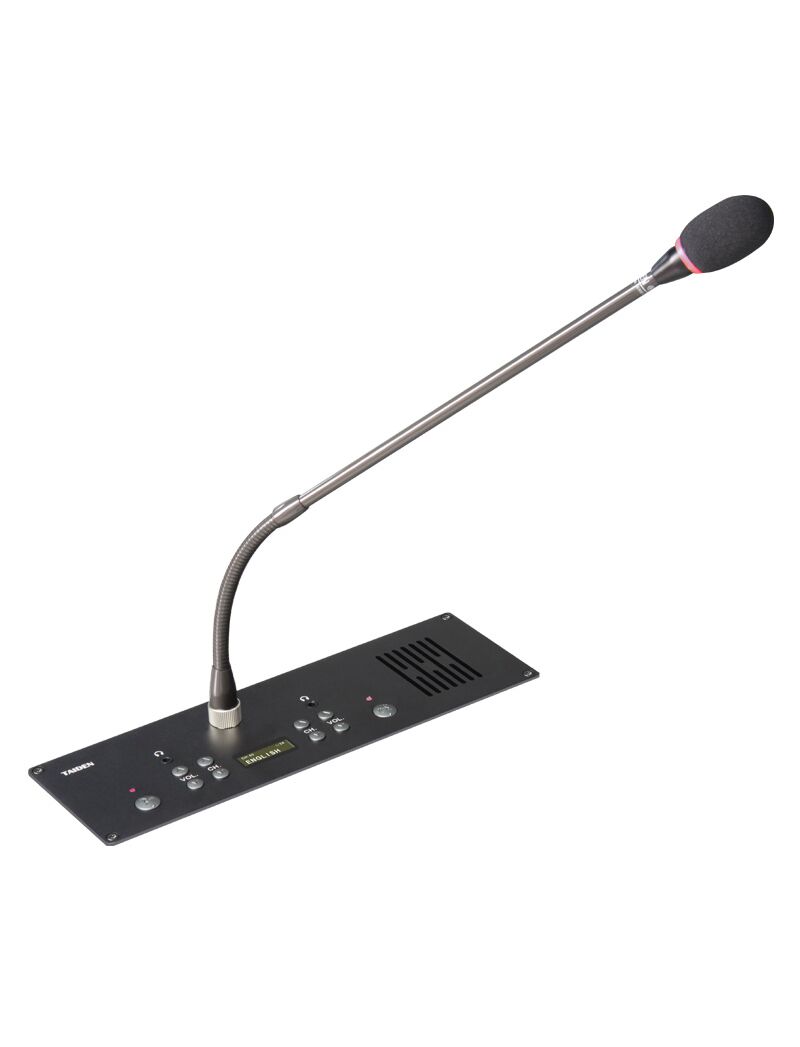

HCS-48U10DDS/50 Fully Digital Congress System Delegate Unit with Dual Channel Selector, Black, 64 Channels
Please sign in so that we can notify you about a reply
The multi-functional delegate unit meets the demands of even the largest conferences. It provides facilities for speaking, listening, and selecting language channels. Excellent immunity to RF interference from mobile phones. It features dual channel selectors, the microphone buttons provide dual delegate identification, used for individual delegate identification on the left and right. A graphic OLED screen can display operation menu, channel number and language name. Channel selection is automatically limited to the number of language channels available. The loudspeaker offers superior acoustics with minimal feedback for enhanced intelligibility.
Features
- Elegant and ergonomic design
- Hi-Fi loudspeaker
- Pluggable microphone
- OLED screen with high brightness and contrast, wide viewing angle and low power consumption
- “Closed Loop - Daisy Chain” connection topology
- Transmitting up to 64 CHs high quality digital audio signals on a dedicated 6-pin cable
- Supporting 48 kHz audio sampling rate, all 64 channels perfectly reproducing audio frequencies between 30 Hz and 20 kHz
- Built-in dual channel selectors consist of up/down channel select buttons and SI information display
- The microphone buttons provide dual delegate identification, used for individual delegate identification on the left and right respectively and easy for automatic video tracking
- Excellent immunity to RF interference from mobile phones
- Separate adjustment of gain and EQ (5 band) of each microphone for the perfect sound
- Supporting “PnP” (plug and play)
Brand:
Taiden
Specifications
Product Type:
Fully Digital Congress System Delegate Unit with Dual Channel Selector
Polar Pattern:
Unidirectional
Display Type:
128x36 OLED
Microphone Type:
Electret Condenser
Mounting Type:
Flush Mount
Number of Channels:
64
Colour:
Black
Applications:
Conference
Performance
Impedance Rating:
>16Ω (Load-Earphone), 2kΩ (Input-Microphone)
Headphone Output:
10mW
Sensitivity Rating:
-46dBV/Pa
Frequency Rating:
30Hz to 20kHz (Headphone), 50Hz to 20kHz (Microphone)
Directivity@ 0?°/180?°:
>20dB
Maximum Sound Pressure Level:
125dB
Equivalent Noise:
20dBA
Inputs and Ports
Connector Type:
3.5mm Jack Stereo
Power
Voltage Rating:
5V DC
Standards
Standards Met:
ISO 22259
Dimensions
Width:
24.5cm (without Microphone)
Depth:
8cm (without Microphone)
Height:
5.4cm (without Microphone)
Weight:
0.8kg (Including Stem Microphone)
