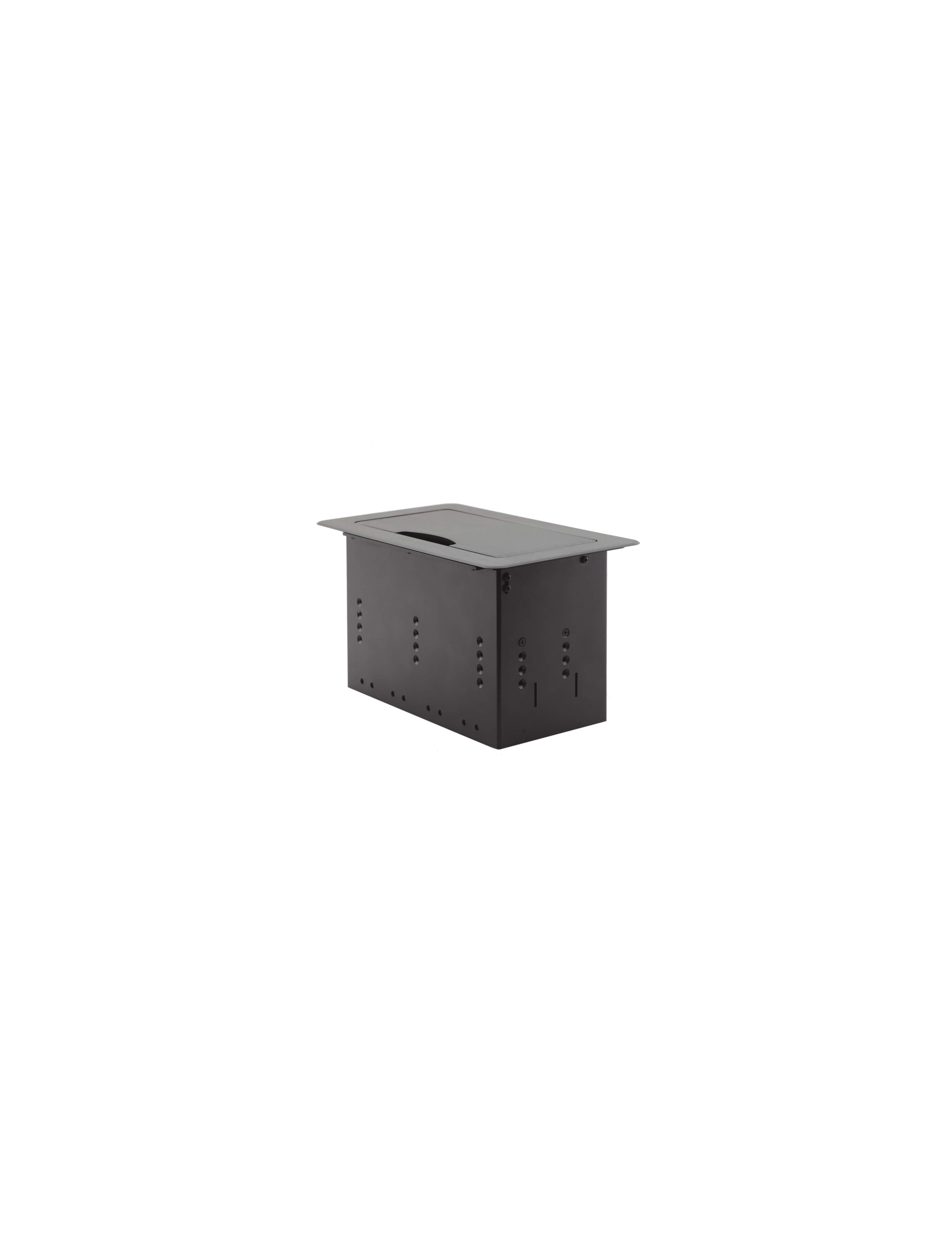

TBUS-4XL(B) Table Top Enclosure, Black Blasted Anodized Aluminium
Please sign in so that we can notify you about a reply
The TBUS−4xl is the enclosure of a new modular system with a tilt−up lid. A complete TBUS system requires the enclosure, an inner frame, a power socket, inserts and a power cord. NOTE: The TBUS enclosure, power socket, power cord & inserts are purchased separately.
Features
- Inner Frame — 2 different "T4F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass–through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
- Power Sockets — 8 different "TS" single socket options are available to accommodate the power requirements worldwide.
- Power Cord — 8 different "C–AC" single power cords (and 3 "Y" power cords) for each power socket.
- Optional Accessories — TBUS Brackets, K–Able Box Cable Reels, Step–In Modules and Controllers are available.
- Cover — Manually opens & closes.
- Connector Depth — Adjustable.
- Installation Requirement — Table cutout of 225mm x 123mm (8.87" x 4.85").
- Dimensions — Top plate: 24.3cm x 14.0cm (9.6" x 5.5") W, D; Enclosure: 20.3cm x 10.2cm x 13.0cm (8.0" x 4.0" x 5.1") W, D, H.
- Weight — TBUS–4xl: 1.35kg (2.8lbs) approx.; table clamps: 0.25kg (0.6lbs).
Brand:
Kramer
Part number:
80-003399
Specifications
Product Type:
Table Mount Modular Multi-Connection Solution
Mounting Type:
Table Mount
Cut-Out Size:
22.5 x 12.3cm
Number of Connection Sockets:
8 Different Ts Single Power Socket
Series:
TBUS
Lid Included (Yes/No):
Yes
Lid Type:
Tilt-Up Lid
Colour:
Black
Coating Material:
Aluminium
Coating Type:
Anodized
Material:
Aluminium
Dimensions
Width:
20.3cm
Depth:
10.2cm
Height:
13cm
Weight:
1.35kg
