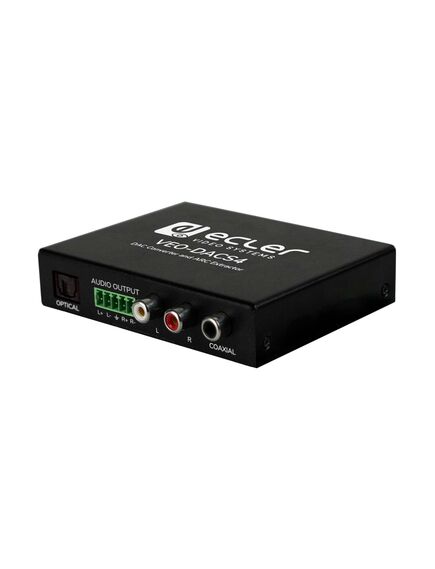

VEO-DACS4 HDMI 2.0 Audio Embedder and Extractor, 20Hz to 20kHz, Up to 192kHz
Please sign in so that we can notify you about a reply
VEO-DACS4 allows converting digital audio signals from HDMI ARC and S/PDIF optical or coaxial inputs to a stereo analogue signal. In addition it can be used to convert digital S/PDIF audio coming from the optical input to coaxial and vice versa. It provides a stereo unbalanced analogue output on Euroblock and RCA connectors. Function mode is selectable through the onboard switch.
Features
- HDMI ARC, S/PDIF optical and coaxial inputs
- Includes stereo analogue balanced output on Euroblock connector, stereo analogue unbalanced output on RCA connector and digital S/PDIF output on optical and coaxial connectors
- Frontal switch for input source selection
- Supports DTS, Dolby Digital and PCM up 5.1 channels
Brand:
Ecler
Specifications
Product Type:
HDMI 2.0 Audio Embedder and Extractor
Output Audio Format Type:
5-Pin Euroblock, S/PDIF Toslink, S/PDIF Coaxial
Converter Type:
DAC
Special Features:
Frontal Switch
Maximum Operating Temperature:
40°C
Applications:
ARC Audio Extraction, Digital-to-Analog S/PDIF Conversion, Digital-to-Digital S/PDIF Formats Conversion
Material:
Metal (Chassis)
Humidity:
5 to 90% RH
Minimum Operating Temperature:
0°C
Includes:
Power Supply, Euroblock 5-Pin Connector, Warranty Card
Performance
Bit Depths:
16 to 24bits
Frequency Rating:
20Hz to 20KHz
Sample Rate:
Up to 192kHz
Inputs and Ports
Digital I/O Interface Type:
HDMI (ARC) Input, S/PDIF Toslink Input, S/PDIF Coaxial Input
Input Audio Format Type:
HDMI (ARC), S/PDIF Toslink, S/PDIF Coaxial
Number of Ports:
3 (Input Port), 3 (Output Port)
Power
Current Rating:
1A
Dimensions
Width:
9.6cm
Depth:
2.1cm
Height:
5.7cm
Weight:
0.1kg
Shipping Weight:
0.4kg
