CLUX-H2SDIA HDMI 4Kx2K Audio Extractor
Please sign in so that we can notify you about a reply
This unit allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the HDMI embedded audio, and send to the SDI output.
Features
- Shows HDMI source on SDI display
- Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s
- Converts HDMI format to SDI:
- - 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s) - 720p/1080i to HD-SDI (SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s) - 1080p to 3G-SDI (SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s)
- Supports HDMI input timings of 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
Brand:
Cypress Technology
Specifications
Product Type:
HDMI Audio Extractor
Special Features:
Shows HDMI Source on SDI Display, Supports SDI Bitrates of 2.97G & 2.97/1.001G, 1.485G & 1.485/1.001G, 270M Converts HDMI Format to SDI:- 480i/576i to SD-SDI (SMPTE 259M-C@270M Bit/s)-720p/1080i to HD-SDI (SMPTE 292M@1.485G & 1.485/1.001G)-1080p to 3G-SDI
Power Rating:
5W
Maximum Operating Temperature:
+40°C
Colour:
Silver
Chassis Material:
Aluminium
Applications:
Smart Home/Luxury House, Smart Building or any Smart AV Installation System, HDMI Signal Conversion to 3G-SDI Display
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
HDMI to 3G-SDI Converter, 5V/2.6A DC Power Adaptor, Operation Manual
Performance
Video Bandwidth:
6.75Gbps
Inputs and Ports
Input Port Type:

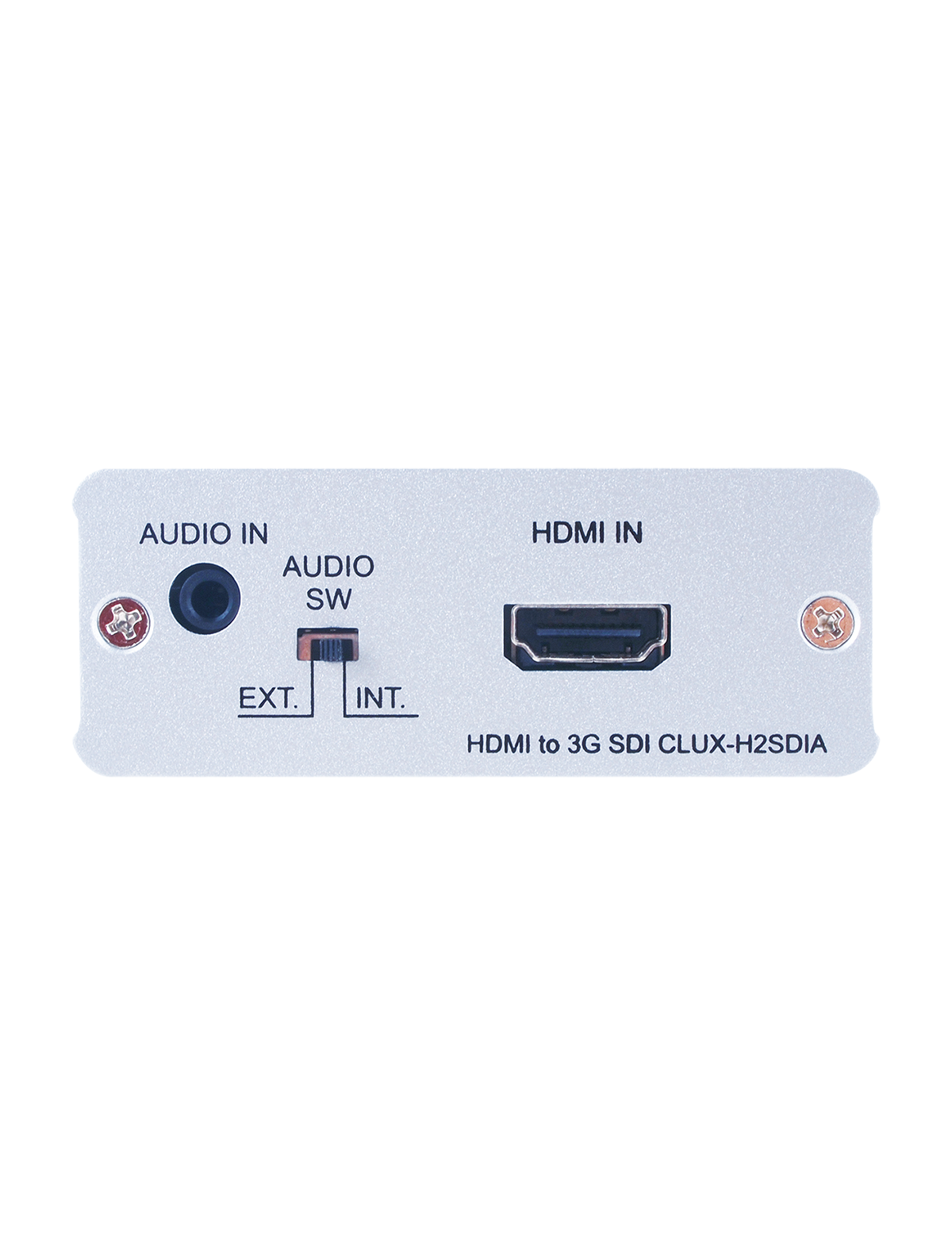

1xHDMI, 1x3.5mm Phone Jack
Output Port Type:
1xBNC (SD/HD/3G-SDI)
Power
Input Voltage:
5V
Current Rating:
2.6A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±4KV (Contact Discharge)
Standards
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
Dimensions
Width:
7.85cm
Depth:
12.4cm
Height:
3cm
Weight:
198g
