CPRO-11SI HDMI 4K2K Audio Inserter
Please sign in so that we can notify you about a reply

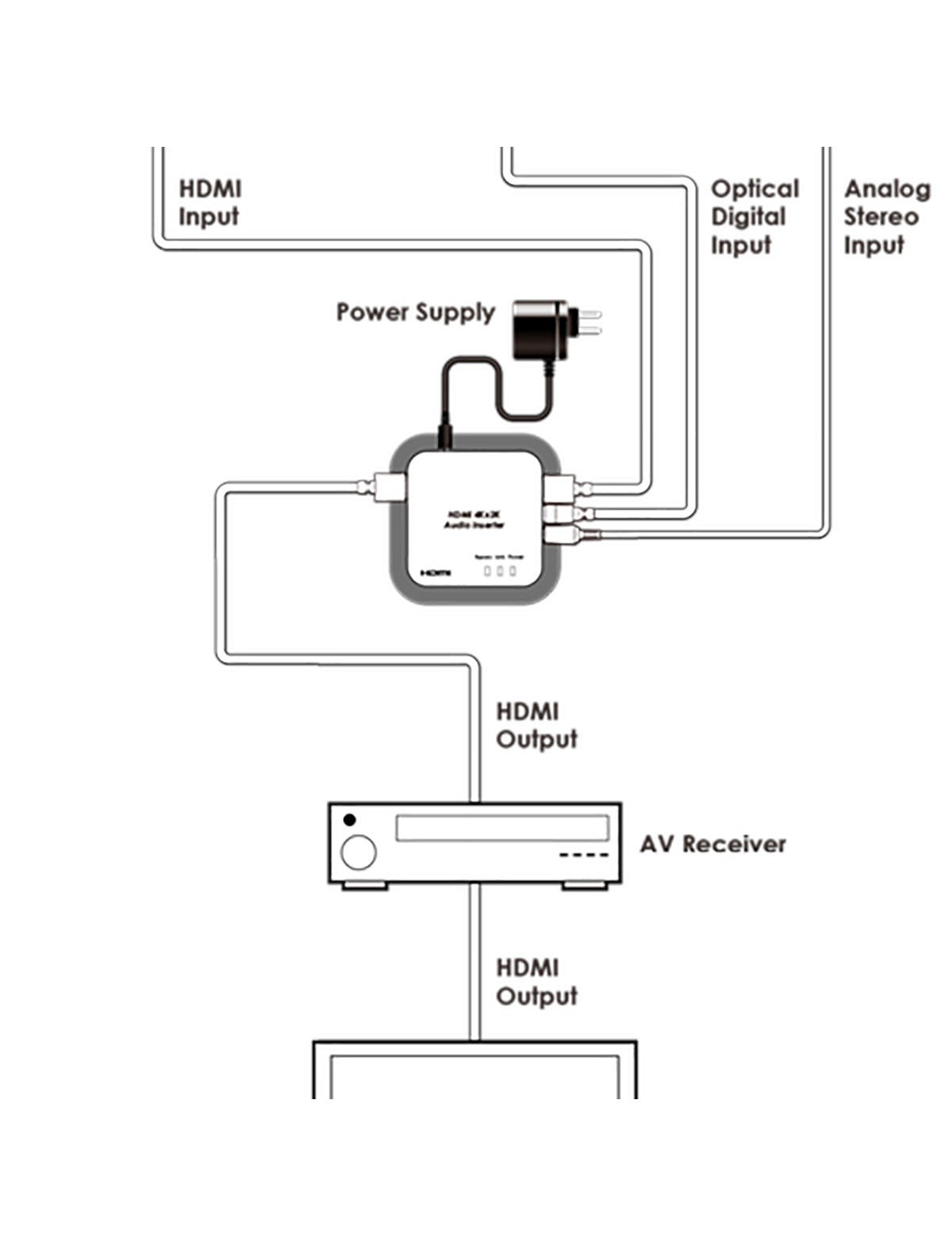

The HDMI™ 4Kx2K Audio Inserter lets you insert an external audio signal intoyour HDMI or DVI (with HDMI to DVI adaptor) signal path. The unit allows you to insert stereo or multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal. Further, both input and output HDMI support HD resolution up to 3D and 4Kx2K allowing a full enjoyment over synchronize video and audio.
Features
- Compliant with HDMI, HDCP 1.2 and DVI 1.0
- Supports HDMI audio sampling rate up to 192 kHz
- Supports Optical S/PDIF audio sampling rate up to 192 kHz
- Supports L/R audio sampling rate up to 48 kHz
- Supports external HDMI, Digital or Analog audio signal embeds into HDMI
- HDMI supports high-bit-rate (HBR) audioMaximum input and output HDMI cable length can run up to 15 meters at 1080p at 8-bit resolution or 10 meters at 1080p at 12-bit resolution
- Supports DVI conversion with HDMI to DVI adaptor
- Supports CEC bypass
- Supports 4Kx2K resolution and 3D signal
Note: When displaying HDMI 4Kx2K signal, equivalent source signal, output display and HDMI cables are required in order to secure the best image display.
Brand:
Cypress Technology
Specifications
Product Type:
HDMI 4Kx2K Audio Inserter
Cable Length:
15m, 10m
L/R Audio Format Type:
Analog Stereo 2 CH
Optical Audio Format:
LPCM 2 CH, Dolby Digital 2 to 5.1 CH, DTS 2 to 5.1 CH
Special Features:
Compliant with HDMI, HDCP 1.2And DVI 1.0, Supports HDMI Audio Sampling Rate Up to 192kHz, Supports Optical S/PDIF Audio Sampling Rate Up to 192kHz, Supports L/R Audio Sampling Rate Up to 48kHz, Supports External HDMI, Digital or Analog Audio Signal Embeds
Power Rating:
2.37W
Maximum Operating Temperature:
+40°C
Colour:
White
Chassis Material:
Plastic
Applications:
Embeds External Audio into HDMI Signal, Integrates Audio and DVI Video to HDMI Signal Output, Replaces Audio in the Original HDMI Signal by other Input Source
Humidity:
20 to 90%
Minimum Operating Temperature:
0°C
Includes:
1xHDMI 4Kx2K Audio Inserter, 1x5V/1.2A DC Power Adaptor, 1xOperation Manual
Performance
Video Bandwidth:
10.2Gbps
Audio Sample Rate:
Up to 192kHz
Inputs and Ports
Input Port Type:
1xHDMI, 1xOptical, 1x3.5mm Mini-Jack, 1xMini-USB
Output Port Type:
1xHDMI
Power
Voltage Rating:
5V DC
Current Rating:
1.2A
ESD Protection Rating:
±8kV (Air-Gap Discharge), ±6kV (Contact Discharge)
Standards
Standards Met:
US/EU, CE/FCC Compliant/UL Listed
Dimensions
Width:
8.5cm
Depth:
8.7cm
Height:
3.4cm
Weight:
102g
