eCOMPACT4BT Analogue Mixer, Input Port: 4 (Microphone)/6 (ST Line), Output Port: 3 (Main/Subwoofer/Alt) Channels
Please sign in so that we can notify you about a reply

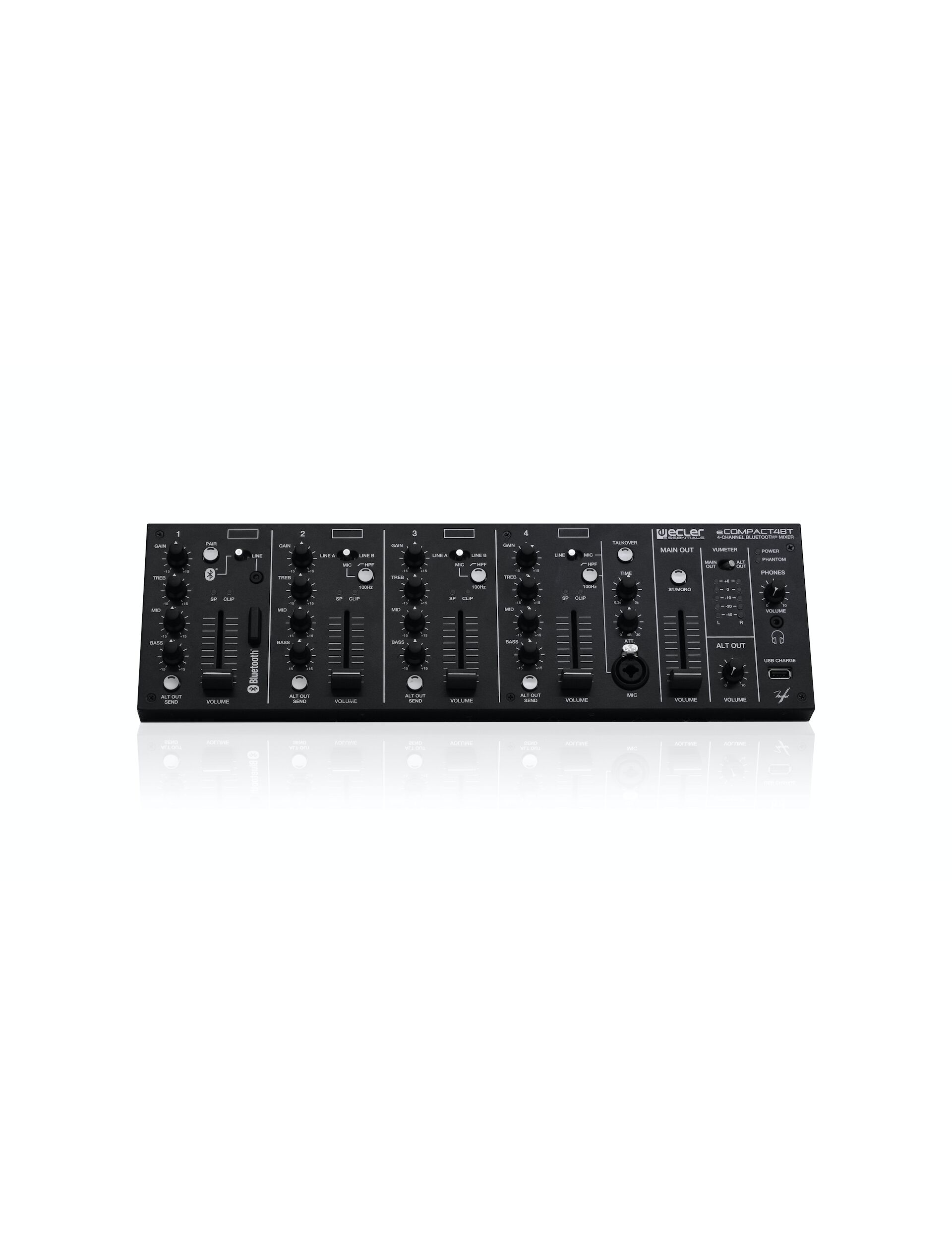

eCOMPACT4BT is a desktop and 19" rackmount 4-channel mixer with Bluetooth® for professional installation. Simple to operate, suitable for both experienced and novice users. Features 4 microphone inputs, 6 stereo line inputs, USB charging port, Bluetooth® wireless connection and a mini-jack input for external devices. All microphone inputs have a switchable high-pass filter. 3-band tone control and ALT Send (sub-mix channel) on all channels.
Features
- 4-channel analogue mixer, one channel with adjustable Talkover
- 19" rack installation or desktop
- 4 microphone inputs, one with combo connector (front panel)
- 48 V phantom power for microphone inputs (rear panel selector)
- 6 RCA stereo line inputs, and one stereo mini-jack line input on front panel
- Class 1 Bluetooth® wireless connection (up to 25 m range under ideal conditions)
- Source selector on each channel
- Selectable high-pass filter for MIC inputs (fc = 100 Hz)
- 3-band tone control (treble, midrange and bass)
- Input signal presence and overload indicators
- 45 mm faders
- ALT OUT send per channel. Sub-mix available
- USB port for charging mobile devices
- Balanced main output (MAIN OUT), XLR connector
- Stereo/mono switch for main output
- Signal indicators (LED) with measured output signal selector (MAIN OUT or ALT OUT)
- Unbalanced alternative or sub-mix output (ALT OUT), RCA connector
- Sub-bass or auxiliary output (SUB OUT), XLR connector. Mono sum of the main output signal
- Low-pass filter available on SUB OUT (fc = 150 Hz)
- Front panel headphone output, mini-jack
- 3URMKIT included (rack-mount accessory)
- Universal external power supply with interchangeable connectors (American, European, British and Chinese).
Brand:
Ecler
Specifications
Product Type:
Analogue Mixer
Rack Mountable (Yes/No):
Yes
Power Rating:
15W
Applications:
Pubs, Night Club, Retail Shop, Fitness Centre
Overload Protection (Yes/No):
Yes
Includes:
3URMKIT Rack Mount Accessory
Performance
Signal-to-Noise Ratio:
>100dB (Line/AUX Input IN1/BT Input)/90dB (Mic)
Minimum Frequency Response:
10Hz
Inputs and Ports
Connector Type:
Input: Euroblock/Double RCA, Output: Euroblock
Number of Microphone Input:
4
Number of Ports:
Input Port: 4 (Microphone)/6 (ST Line), Output Port: 3 (Main/Subwoofer/Alt)
Power
Voltage Rating:
48V DC (Phantom Power)
Phantom Power (Yes/No):
Yes
Standards
Standards Met:
47 CFR PART 15, Subpart B (20-01-17 Edition), Device Class A
Dimensions
Width:
44cm
Depth:
12.5cm
Height:
13.2cm
Weight:
3kg
Shipping Weight:
3kg
