eHMA120 Self-Powered Audio Mixer, Input Port: 4 (Microphone/Line Level), Output Port: 3 + 1 Auxillary Channels
Please sign in so that we can notify you about a reply

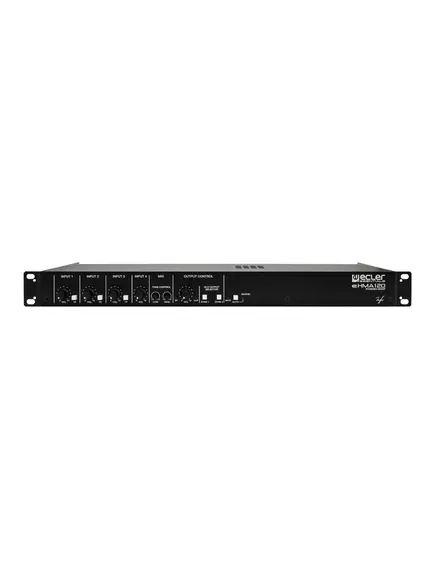

eHMA120 is a self-powered audio mixer including three MIC/LINE ST inputs and one LINE ST input. It features a 120W powered mono output that supports both low (4 ohm) and high impedance (70V, 100V) loudspeaker lines, with independent 2-ZONE ON/OFF switches (ZONE 1, ZONE 2). It also includes an audio priority system (voice messages, emergencies, etc.) available in 3 inputs, Pager and embedded Chime function (compatible with 1 zone paging microphones), 2 band tone control, auto stand-by mode, MUTE port and universal power supply unit, being compatible with external 24 VDC IN backup supply systems.
Features
- 1 x 95W @ 4ohm
- 1 x 95W @ 70V / 100V
- 2 x ZONE ON/OFF selection switches
- 1 ST LINE input
- 3 MIC / LINE inputs, including Talkover function (priority)
- 1 Pager port, including embedded Chime tone
- 2-band EQ (BASS/TREBLE) for Mix Output
- 24VDC external power supply included, with external battery backup connector
- Auto Stand-by function
- 24VDC Phantom Power (external switch)
- MUTE port to remotely mute the unit from an external device, via dry contact closure.
- Rack mount kit included
Brand:
Ecler
Specifications
Product Type:
Self-Powered Audio Mixer
Rack Mountable (Yes/No):
Yes
Power Rating:
95W (4Ω/100Ω)
Applications:
Retail Store, Restaurant, Bars, BGM, Paging Solution with Message Priority and Source/Volume Independent Selection
Includes:
3 Mic/Line Input with Talkover Function, 1 Pager Port with Chime Tone, 2-Band EQ (Bass/Treble), 24V DC External Power Supply with External Battery Backup Connector, 24V DC Phantom Power (External Switch), Rack Mount Kit
Performance
Signal-to-Noise Ratio:
>85dB (Line), 75dB (Mic Bal)
Minimum Frequency Response:
70Hz
Frequency Rating:
100Hz (Bass), 10kHz (Treble)
Inputs and Ports
Connector Type:
Input: Euroblock/Double RCA, Output: Euroblock
Number of Ports:
Input Port: 4 (Microphone/Line Level), Output Port: 3 + 1 Auxillary
Power
Voltage Rating:
24V, 100 to 240V AC, 24V DC
Maximum Operating Voltage:
240V AC
Minimum Operating Voltage:
100V AC
Phantom Power (Yes/No):
Yes
Standards
Standards Met:
47 CFR PART 15, Subpart B (10-01-14 Edition), Device Class A
Dimensions
Width:
43.5cm
Depth:
12cm
Height:
4.4cm
Weight:
2.9kg
Shipping Weight:
4.2kg
