900XL Stereo Power Amplifier, 2x10W
Please sign in so that we can notify you about a reply

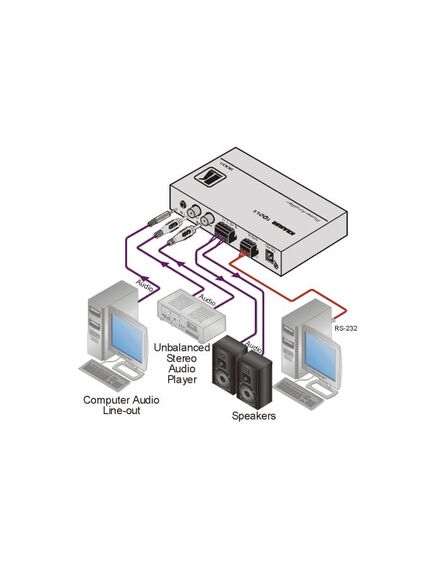

The 900xl is a high−performance power amplifier for line level stereo audio signals. The unit accepts unbalanced audio signals on either of two RCA or 3.5mm connectors and delivers a speaker output of 10 watts RMS per channel into a 4Ω load.
Features
- High Efficiency — Class D operation.
- S/N Ratio — 60dB.
- Control — Volume & input selection from front panel & RS-232.
- Compact Kramer TOOLS™ — 3 units can be rack mounted side-by-side in a 1U rack space with the recommended rack adapter.
Brand:
Kramer
Part number:
90-7622090
Specifications
Product Type:
Stereo Power Amplifier
Number of Channels:
Special Features:
High Efficiency S/N Ratio Controls, Compact Kramer TOOLS™
Power Rating:
2x10W
Maximum Operating Temperature:
+40°C
Applications:
Presentation Rooms and Multimedia for Quick, Local Audio Amplification, Personal Audio Listening
Humidity:
10 to 90%
Minimum Operating Temperature:
-0°C
Includes:
Stereo Power Amplifier, 4 Rubber feet1 Bracket set, Power Adapter (12V DC)1 Quick Start guide
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
85dB@1kHz
Input Impedance Rating:
4Ω
Crosstalk Level:
85dB@1kHz
Input Sensitivity:
460mV
Power
Current Rating:
2.0A
Dimensions
Width:
12cm
Depth:
7.1cm
Height:
2.4cm
Weight:
0.2kg
