CAP248 Power Amplifier 2 X 480W, Dual Channel
Please sign in so that we can notify you about a reply
The CAP series are professional 100V multi-channel power amplifiers. The CAP248 offers two channels and has an output power of 480 watts. This way, a flexible solution is created for multi-zone audio distribution systems with two independent zones. They are designed as no-nonsense amplifiers with only the necessary controls and connections, which creates great simplicity in use and installation. A high efficiency and reliability of the devices is achieved by using switching power supplies in combination with Class-D amplifier technology. A temperature controlled fan constantly keeps all parts within the right operation range, while avoiding excessive buzz. A built-in multipurpose protection circuit protects against DC malfunction, Short circuits, overheating, overload, and limits the signal when necessary.

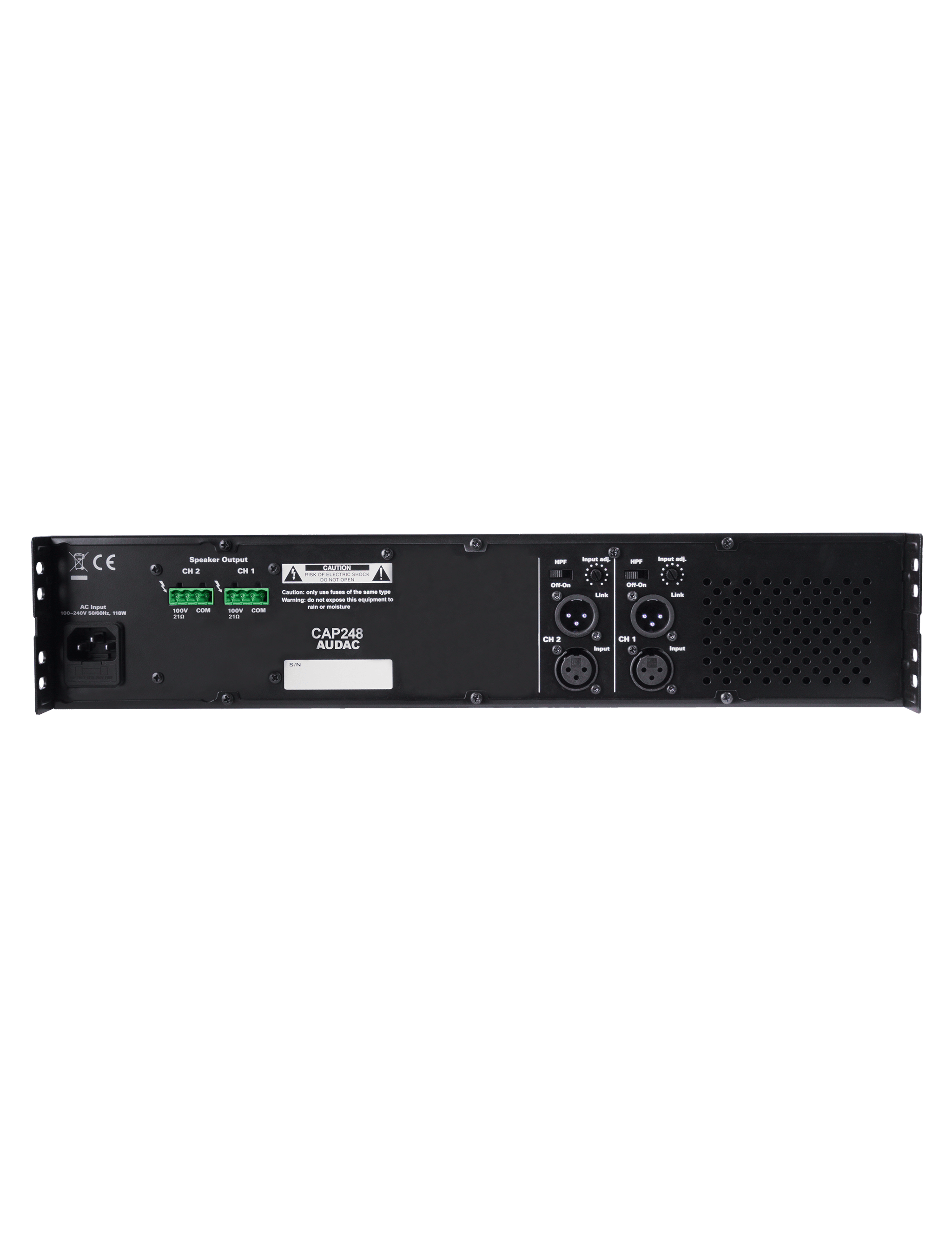

The input connections are performed using balanced XLR connectors and Link output connectors are provided for link through to other amplifiers. Besides, a high-pass filter switch (400 Hz) and a Gain adjustment potentiometer are provided for each channel. The output connections are performed using reliable terminal block connectors and this all is housed into a solid constructed, double rack space (2 HE) 19” rack mounting housing.
Features
- Lightweight class-D amplifier
- Advanced protection circuit
- XLR input & link through connections with gain control & HPF switch
- Terminal block output connections
- High-pass filter switch
Brand:
Audac
Specifications
Product Type:
Multi Channel Power Amplifier
Special Features:
Advanced Protection Circuit, XLR Input, Linkthrough Connections with Gain Control, HPF Switch, Terminal Block Output Connections, High-Pass Filter Switch
Power Rating:
50W (Idle), 187W (1/8 Rated Power), 400W (1/3 Rated Power), 2x480W (Output Power)
Maximum Operating Temperature:
40°C
Colour:
Black
Applications:
Bar, Restaurant, Education, Corporate, Clubs, Retail
Indicator Type:
LED
Material:
Steel
Humidity:
95%
Minimum Operating Temperature:
0°C
Includes:
2x4-Pin Euro Terminal Block Outputs Connector
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
>100dB
Frequency Rating:
50Hz
Input Impedance Rating:
10kΩ
Crosstalk Level:
>80dB@1kHz
Input Sensitivity:
-0.5 to 10.5dB
Signal Processing Compressor (Yes/No):
Yes
Dimensions
Width:
48.2cm
Depth:
42cm
Height:
8.8cm
Weight:
7.5kg
