CPA24 Power Amplifier 240 W
Please sign in so that we can notify you about a reply
The CPA24 is a professional single channel 100V power amplifier with a power of 240 watts, specially designed for most common 100V PA systems, and perfect to be used in combination with the CPR12 pre-amplifier. It is designed as a no-nonsense amplifier with only the necessary controls and connections. This creates great simplicity in use and installation. There are several power output taps available for use in 100V, 70V, and even 4 Ohm Low impedance installations and they are fitted with an advanced multipurpose protection circuit.

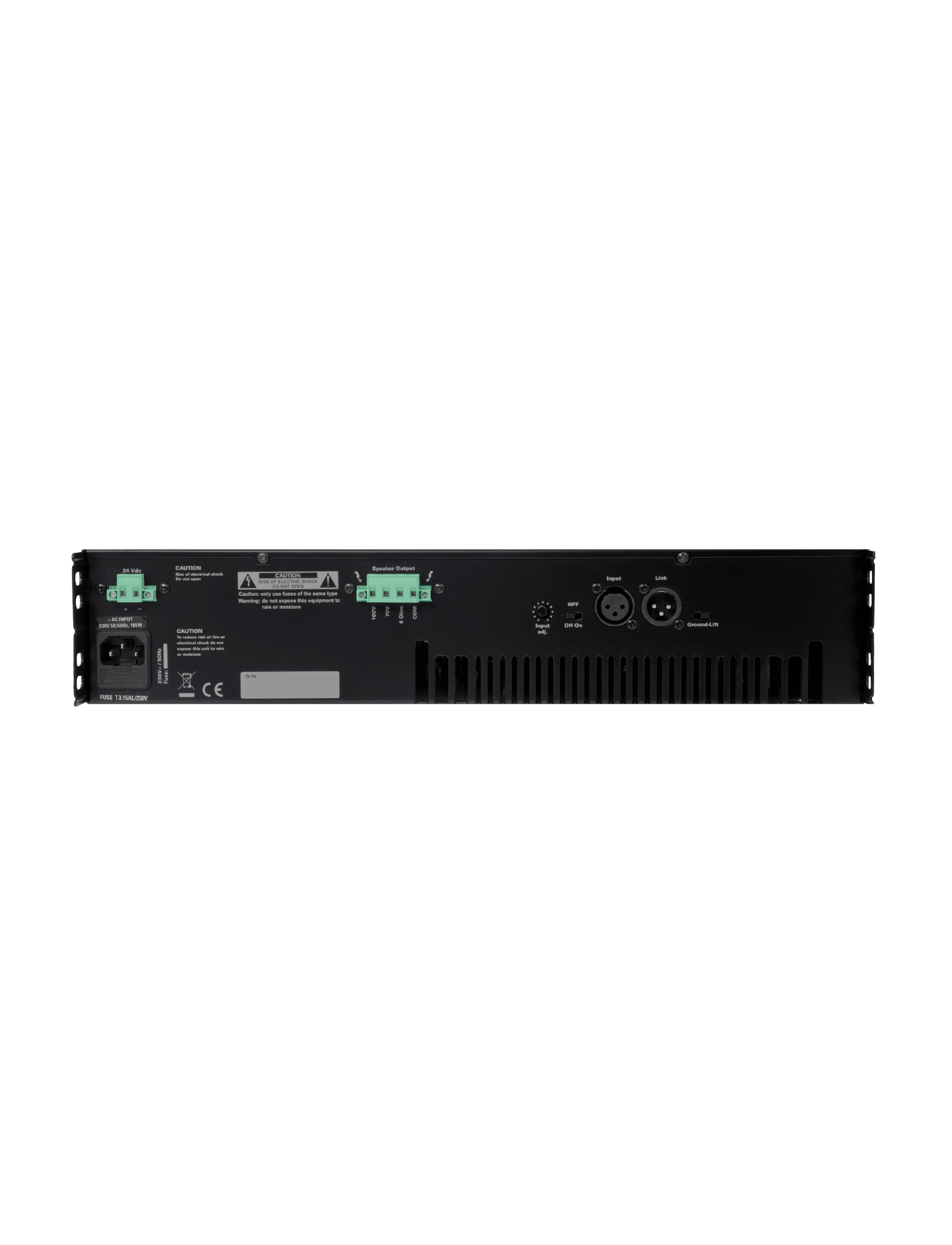

The protection circuit detects DC malfunction, short circuit, overheating, and overload, and limits the signal when necessary. Another present feature is the 24 V DC connection for powering the amplifier with emergency power when the main power is shut down. At the back of the amplifier, there are trim potentiometers to set the input level, a high pass filter switch, and a ground lift switch provided. The input connection is made with balanced XLR connectors, and there’s a signal output for linking with other amplifiers. The steel 19" housing has a height of 2 HE.
Features
- 24 Volts emergency power operation
- Advanced protection circuit
- XLR input & link through connections with gain control
- Terminal block output connections ( 4Ω, 25V, 70V & 100V)
- Class A/B amplifier technology
- Ground lift switch
- High-pass filter switch
Brand:
Audac
Specifications
Product Type:
Power Amplifier
Special Features:
Flexible Audio Solution to Control Multiple Functions, Offering a User-Friendly Device, Guaranteeing an Excellent Sound Quality, Creating a Modern and Advanced Design
Power Rating:
240W (Output Power), 361W (1/8 Rated Power)
Maximum Operating Temperature:
40°C
Colour:
Black
Applications:
Bar, Restaurant, Retail, Corporate
Indicator Type:
LED
Material:
Steel
Humidity:
95%
Minimum Operating Temperature:
0°C
Includes:
4-Pin Euro Terminal Block Outputs Connector, 2-Pin Euro Terminal Block 24V Power Connector
Performance
Amplifier Class:
Class A, Class B
Signal-to-Noise Ratio:
>90dB
Frequency Rating:
50/60Hz
Input Impedance Rating:
10kΩ
Input Sensitivity:
1.0 to ± 0.1VRMS
Signal Processing Compressor (Yes/No):
Yes
Voltage Gain:
-12 to 0dB
Dimensions
Width:
48.2cm
Depth:
34cm
Height:
8.8cm
Weight:
13.8kg
