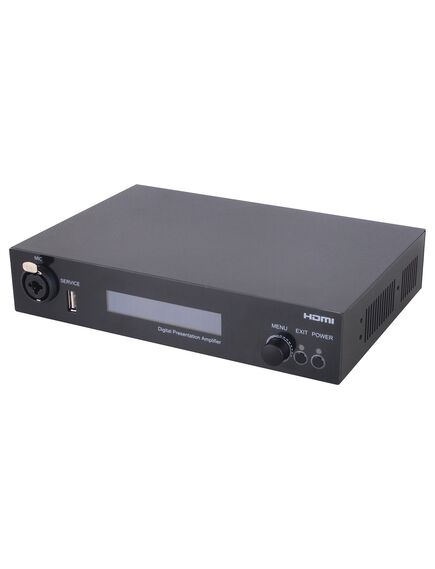

DCT-23 Integrated Zone Amplifier
Please sign in so that we can notify you about a reply
The Integrated Zone Amplifier accepts analog and digital stereo audio signals via RCA, 3.5mm mini-jack, optical and coaxial digital, and HDMI with an additional microphone input. As well as speaker outputs, it boasts line level output, optical and digital outputs, and HDMI outputs for wider systems integration. Suitable for use at musical events, sound presentation and sound amplification. With output audio sampling rate support up to 48 kHz and I/O data rate support up to 24-bit, it provides a high quality sound reproduction.
Features
- 30 watts per channel Digital Stereo Amplifier
- Supports Digital to Analog audio Conversion (DAC) and Analog to Digital audio Conversion (ADC)
- HDMI audio embedding and de-embedding
- Supports input audio sampling rates up to 96 kHz and output at 48 kHz
- Supports HDMI audio sampling rates loop-through and video bypass output
- Supports a wide range of resolutions from 480i to 1080p and VGA to WUXGA(RB)
- Dedicated XLR microphone input with independent volume control
- Supports microphone sound being embedded into video output
- Simultaneous output of sound on both digital and analog
- Analog line output selectable to be either fixed or variable output level
- Supports control via IR (Remote and IR Extender input), RS-232 or IP (Telnet/WebGUI)
- Compact design easy to use
Brand:
Cypress Technology
Specifications
Product Type:
Zone Amplifier
Special Features:
30 Watts Per Channel Digital Stereo Amplifier, Supports Digital to Analog Audio Conversion (DAC) and Analog to Digital Audio Conversion (ADC) HDMI Audio Embedding and De-Embedding
Power Rating:
82.5W
Maximum Operating Temperature:
+40°C
Applications:
Public Speech, Corporate Events, Home Systems, Ceiling Speaker Systems, Matrix Zone Amplification
Indicator Type:
LED
Material:
Aluminium
Humidity:
20 to 90%
Minimum Operating Temperature:
-0°C
Includes:
IR Receiver
Performance
Frequency Rating:
38kHz
Inputs and Ports
Number of Ports:
11 (HDMI ARC), 6 (Output)
Power
Current Rating:
3.75A
Standards
Standards Met:
CE, FCC Compliant, UL Certified
Dimensions
Width:
2.15cm
Depth:
4.6cm
Height:
17.2cm
Weight:
1060g
