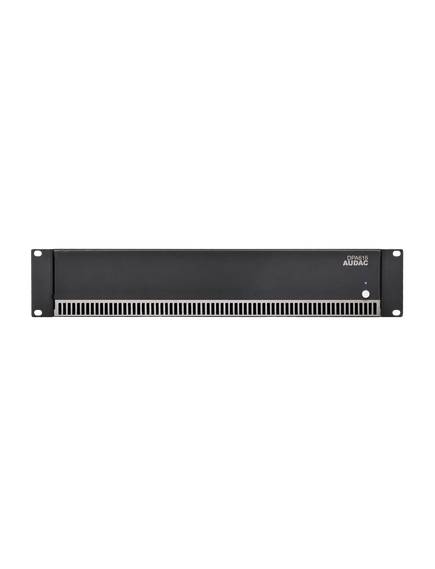

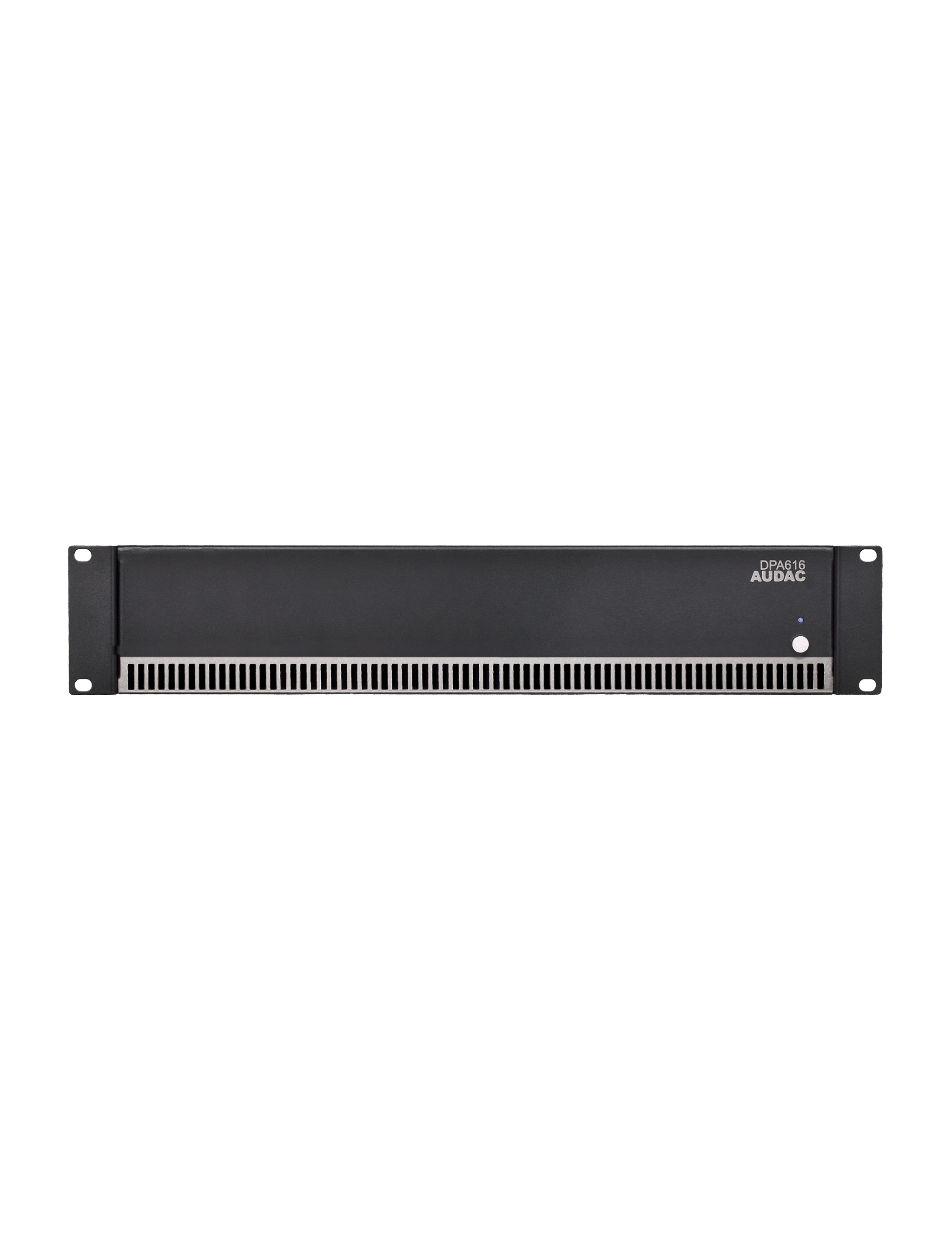

DPA616 Class-D Amplifier 16X60W, 16 Channel
Please sign in so that we can notify you about a reply
The DPA616 is a professional sixteen channel power amplifier which is capable of delivering a power of 60 Watt to 4 Ohm loads connected to the 16 output channels. When used in bridge mode, it can deliver a power of 120 Watt to 8 Ohm loads connected to the 8 bridged outputs. This way, the DPA616 is the perfect solution for installed multi-zone audio distribution systems with 8 or 16 zones. This amplifier is designed as a no-nonsense amplifier with only the necessary controls and connections which creates great simplicity in use and installation. The input connections are all performed with 3-pin Terminal block connectors, allowing the connection of balanced input signals. Every channel is fitted with a separate gain control potentiometer and for every two input connectors, there is a stereo / bridge & parallel switch provided whereby two channels can be bridged or linked in parallel, avoiding a cable clutter when multiple channels should be fed with the same input signal.
The output connections are performed with 4-pin Terminal block connectors allowing connections for separate or bridged output channels. A built-in multipurpose protection circuit protects against DC malfunction, short circuit, overheating, overload and limits the signal when necessary. This all is housed in a double rack space, steel 19” rack mount housing.
Features
- Lightweight class-D amplifier
- Stereo & bridged mode
- Terminal block output connections
- 16 Channel design (8 channel bridged)
Brand:
Audac
Specifications
Product Type:
Power Amplifier
Applications:
Bar, Restaurant, Education, Corporate, Retail
Material:
Steel
Humidity:
95%
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
>100dB
Frequency Rating:
20 Hz - 20 kHz
Input Impedance Rating:
20kΩ
Crosstalk Level:
>65dB (Paired Channel), >110dB (Unpaired Channel)
Input Sensitivity:
-20 to +20dB
Signal Processing Compressor (Yes/No):
Yes
Dimensions
Width:
48.2cm
Depth:
32.2cm
Height:
8.8cm
Weight:
8.2kg
