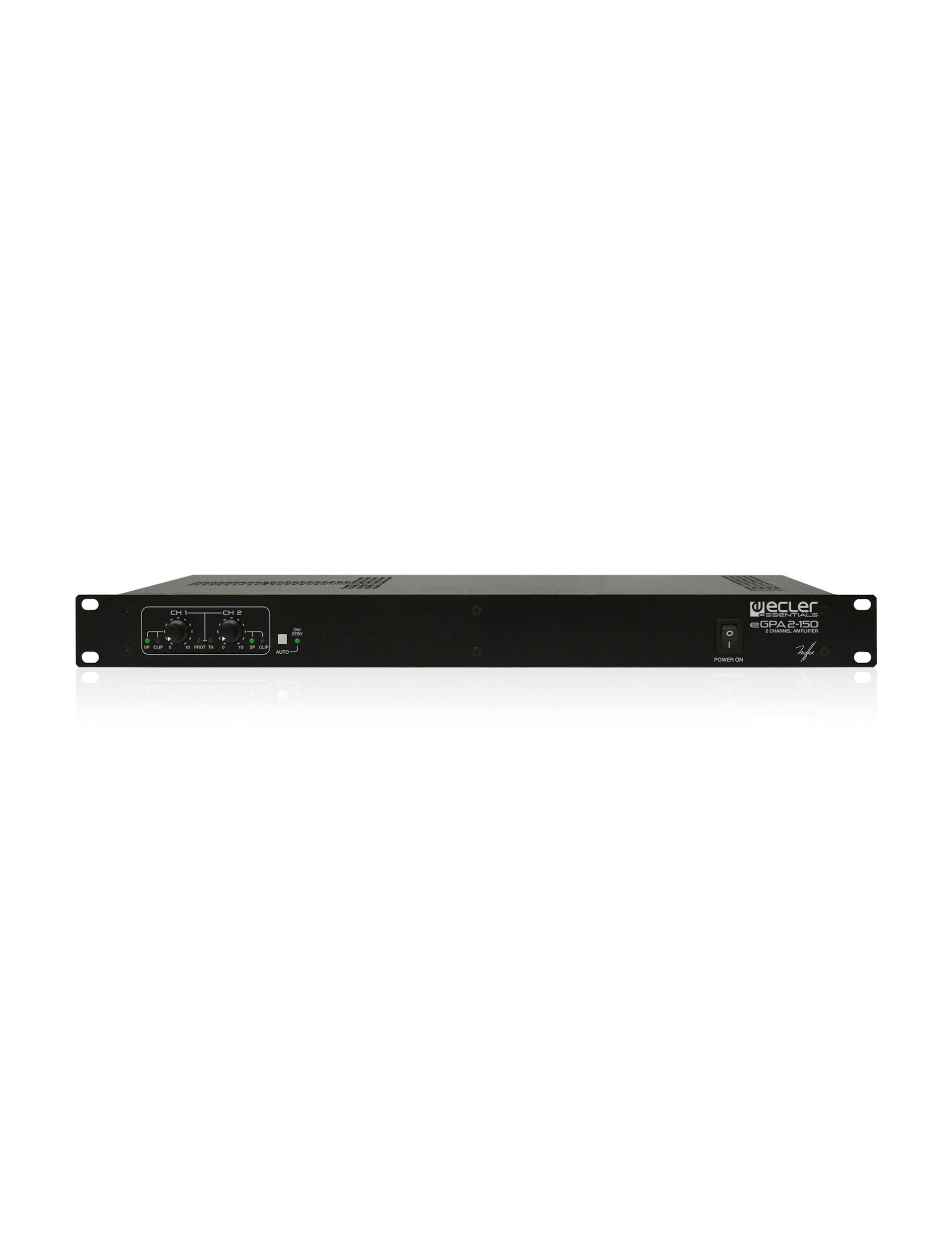

eGPA2-150 Stereo High Efficiency Amplifier (Class D), 2X150WRMS @4Ω, Auto Stand-By Function
Please sign in so that we can notify you about a reply
eGPA2-150 is a stereo, 2x150 W RMS @ 4 Ω, high efficiency amplifier (class D). Auto stand-by function and fanless design, 100% silent. Thermal and overload protections. Anti-clip system.
Features
- 2 analogue audio inputs x 2 powered audio outputs
- Euroblock input and output connectors
- High efficiency, auto standby function and convection cooling (fanless, 100% silent)
- BRIDGE mode ready
- Thermal protection
- Overload protection
- Anti-clip system
Brand:
Ecler
Specifications
Product Type:
Stereo Amplifier
Number of Channels:
Input: 2, Output: 2
Special Features:
Bridge Mode Ready, Thermal Protection, Overload Protection, Anti-Clip System
Power Rating:
13W (Standby), 19W (Idle), 63W (1/8 Rated Power), 139W (1/3 Rated Power)
Maximum Operating Temperature:
40°C
Applications:
Education, Corporate, Leisure, Sport, Wellness, Hospitality
Indicator Type:
LED
Humidity:
<85%
Minimum Operating Temperature:
-10°C
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
>85dB@1W/4Ω
Frequency Rating:
50/60Hz
Input Impedance Rating:
>20kΩ
CMRR:
>55dB
Crosstalk Level:
>55dB
Input Sensitivity:
0dBV
Inputs and Ports
Number of Ports:
Input: 2 (Analogue Audio), Output: 2 (Powered Audio)
Dimensions
Width:
44cm
Depth:
16.1cm
Height:
4.4cm
Weight:
2.6kg
