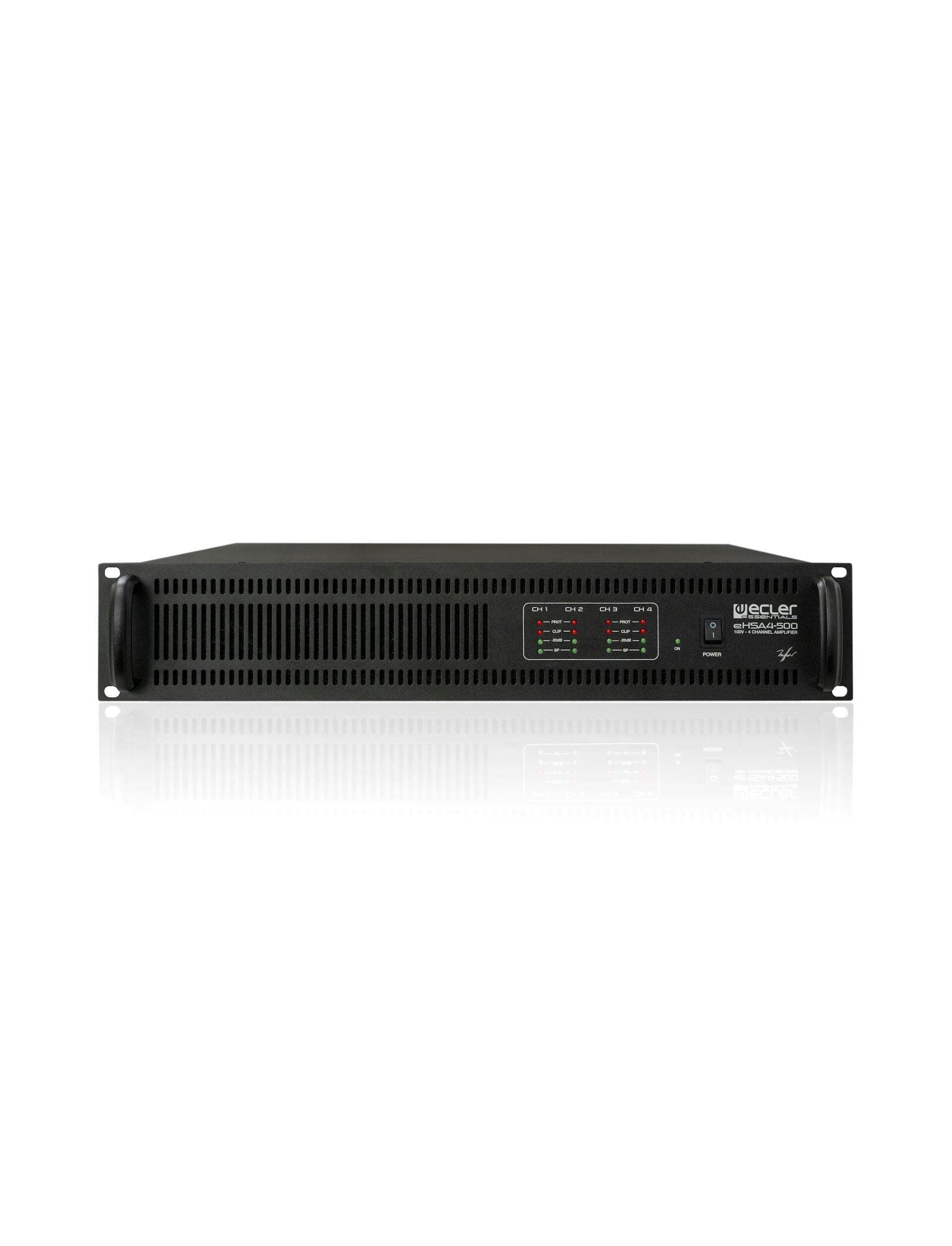

eHSA4-500 Multichannel Amplifier with 4X500WRMS @100V (High Impedance) Powered Outputs
Please sign in so that we can notify you about a reply
eHSA4-500 is a multichannel amplifier with 4 high impedance powered outputs. New light-weight format in 2RU, versatile and affordable.
Features
- 4 mono balanced inputs (Euroblock terminals) with stack outputs
- 4 x 500 WRMS output (100V line level)
- Euroblock output connectors
- Selectable HPF (Cut-off freq. = 75Hz)
- Thermal protection
- Overload protection
- Anti-clip system
- Volume control trimmers on rear panel
Brand:
Ecler
Specifications
Product Type:
Multi Channel Amplifier
Number of Channels:
Input: 4, Output: 4
Special Features:
Thermal Protection, Overload Protection, Anti-Clip System, Volume Control Knobs on Front Panel
Power Rating:
65W (Idle), 380W (1/8 Rated Power), 860W (1/3 Rated Power)
Maximum Operating Temperature:
40°C
Applications:
Retail, Education, Corporate, Hospitality
Indicator Type:
LED
Humidity:
<85%
Minimum Operating Temperature:
-10°C
Performance
Signal-to-Noise Ratio:
>80dB
Frequency Rating:
50/60Hz
Input Impedance Rating:
>20kΩ
CMRR:
>55dB
Crosstalk Level:
>55dB
Input Sensitivity:
0dBV
Inputs and Ports
Number of Ports:
Input: 4 (Mono Balanced), Output: 4
Dimensions
Width:
48.2cm
Depth:
36.5cm
Height:
8.8cm
Weight:
7.6kg
