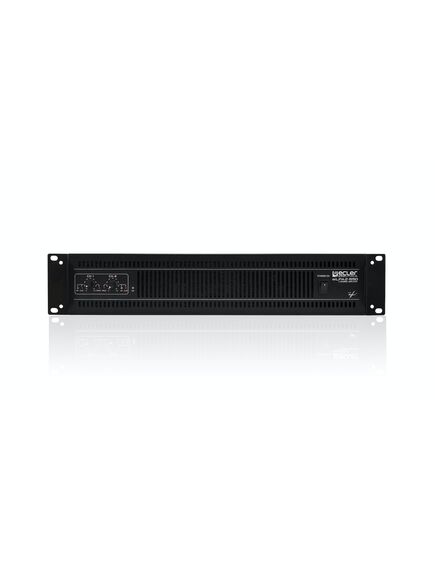

eLPA2-650 Stereo Amplifier Delivering 2X630WRMS @4Ω, 2 XLR Balanced Inputs
Please sign in so that we can notify you about a reply
eLPA2-650 is a stereo amplifier delivering 650 W. eLPA series brings all the classic, well-known reliability and amplification quality of ECLER to a new light-weight format that is versatile and affordable.
Features
- 2 analogue audio inputs x 2 powered audio outputs
- Ultra light technology
- Efficient progressive ventilation system
- Rotary input attenuation controls that are easily accessible on the front panel
- POWER ON, SIGNAL, CLIP y PROTECT LED indicators.
- Efficient short-circuit, overheat and DC signal protection system
- Permanently activated built-in anti-clip circuit
- Balanced inputs via XLR3 connectors.
- Amplified outputs with terminal-type connectors and Speakon® connectors
Brand:
Ecler
Specifications
Product Type:
Stereo Amplifier
Number of Channels:
Input: 2, Output: 2
Special Features:
Permanently Activated Built-in Anti-clip Circuit, Ultra-Light Technology
Power Rating:
32W (Idle), 223.5W (1/8 Rated Power), 542W (1/3 Rated Power)
Maximum Operating Temperature:
40°C
Applications:
Retail, Leisure, Hospitality
Indicator Type:
LED
Humidity:
<85%
Minimum Operating Temperature:
-10°C
Performance
Signal-to-Noise Ratio:
>85dB
Frequency Rating:
50/60Hz
Input Impedance Rating:
20kΩ (Balanced), 10kΩ (Unbalanced)
CMRR:
>55dB
Voltage Gain:
32dB
Inputs and Ports
Number of Ports:
Input: 2 (Analogue Audio), Output: 2 (Powered Audio)
Dimensions
Width:
48.2cm
Depth:
26.6cm
Height:
8.8cm
Weight:
5.5kg
