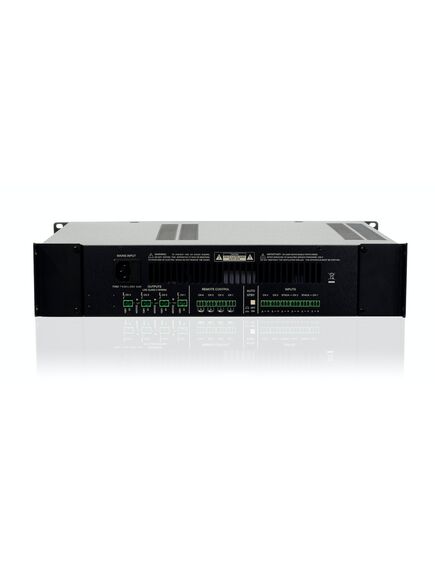

HZA4-120F 4Xmerging Channel Amplifier with Direct 4X120WRMS
Please sign in so that we can notify you about a reply
The HZA4-120F is a four MERGING channel amplifier with direct 4 x 120 WRMS @ 100 V line (high impedance) outputs. It integrates Ecler’s proprietary SPM 100 Technology - Channel N, which allows for 100 V speaker lines connection without using 100 V line transformers at the amplified outputs, as this kind of amplifiers usually do. This fact has many advantages, being the main ones the audio quality improvement (specially in the low-end frequencies) and the convection cooling, 100% silent.
Features
- 4 mono balanced inputs
- 4 x 120 W amplified outputs (100V line level)
- 4 volume remote control ports (0 - 10 VDC)
- Euroblock connectors
- SPM 100 amplification Technology - Channel N (no 100 V output transformers used):Improved frequency response (specially at the low-end)- Convection cooling (100% silent and increased reliability)- Great efficiency- Low weight
- Auto stand-by function after 2 minutes without audio input signals, with instantaneous auto-recovery
- Thermal protection
- Overload protection
- Anti-clip system
- Volume control knobs on front panel with protection cap, against undesired manipulation
- Every 2, 3 or 4 adjacent channels can be merged, adding their ouput power and managing their signal routing and volume control as a single merged channel
Brand:
Ecler
Specifications
Product Type:
High Impedance Amplifier
Number of Channels:
Input: 4, Output: 4
Special Features:
Thermal Protection, Overload Protection, Anti-Clip System, Volume Control Knobs on Front Panel
Power Rating:
<3W (Standby)
Maximum Operating Temperature:
40°C
Applications:
Retail, Corporate, Hospitality
Indicator Type:
LED
Humidity:
<85%
Minimum Operating Temperature:
-10°C
Performance
Signal-to-Noise Ratio:
>90dB@100V
Input Impedance Rating:
>20kW
Crosstalk Level:
>90dB@1kHz/100V
Input Sensitivity:
0dBV
Inputs and Ports
Number of Ports:
Input: 4 (Mono Balanced), Output: 4
Power
Current Rating:
0.1A
Dimensions
Width:
48.2cm
Depth:
39.2cm
Height:
8.8cm
Weight:
13.6kg
