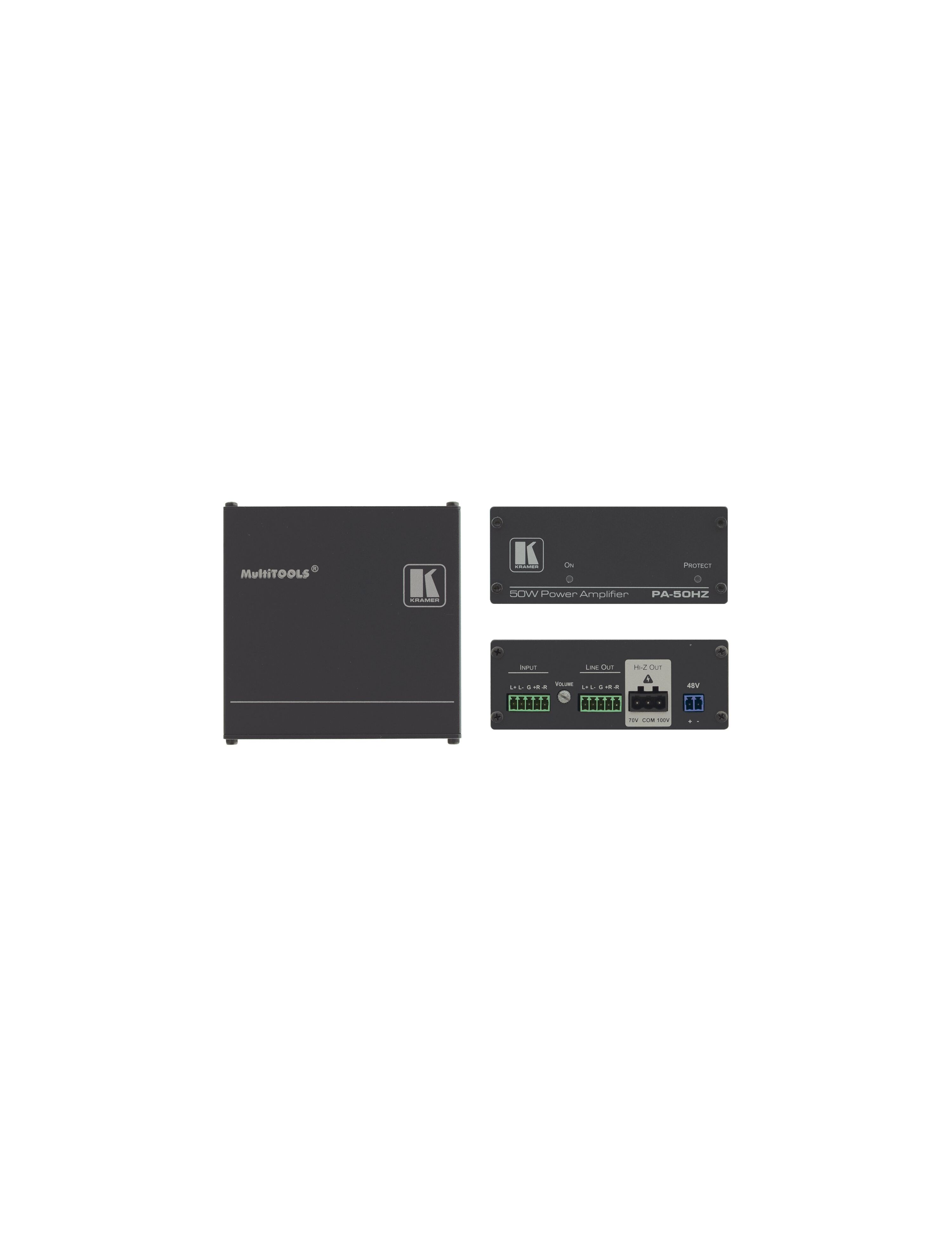

PA-50HZ Power Amplifier (50W into 70V/100V)
Please sign in so that we can notify you about a reply
PA−50HZ (PA−50Z) is a compact Hi−Z (70V/100V) power amplifier with line−level output, ideal for small to medium−size meeting spaces and classrooms.
Features
- Simple and flexible speaker array installation.
- Line level output for cascading, recording or conferencing scenarios.
- Small form factor and convection cooling for simple installation.
- 50W of power into a 70V or 100V line.
Brand:
Kramer
Part number:
13-80477190
Specifications
Product Type:
Power Amplifier
Special Features:
Simple and Flexible Speaker Array Installation, Line Level output for Cascading, Recording or Conferencing Scenarios Small form Factor and Convection Cooling for Simple Installation 50W of Power into a 70V or 100V Line
Power Rating:
50W
Maximum Operating Temperature:
+40°C
Applications:
Small to Medium-Size Meeting Spaces, Classroom and Educational Facility
Humidity:
10 to 90%
Minimum Operating Temperature:
-0°C
Includes:
Power Amplifier, 4 Rubber Feet, Power Adapter, Cord, Quick Start Guide
Performance
Amplifier Class:
Class D
Signal-to-Noise Ratio:
90dB
Frequency Rating:
20Hz to 20kHz@±0.3dB
Input Sensitivity:
Full Power@1.5V (+5dBV)
Voltage Gain:
37dB BTL
Power
Current Rating:
1.2A
Standards
Standards Met:
CE, UL Certified, RoHS, WEEE
Dimensions
Width:
10.68cm
Depth:
10.3cm
Height:
4.3cm
Weight:
0.8kg
