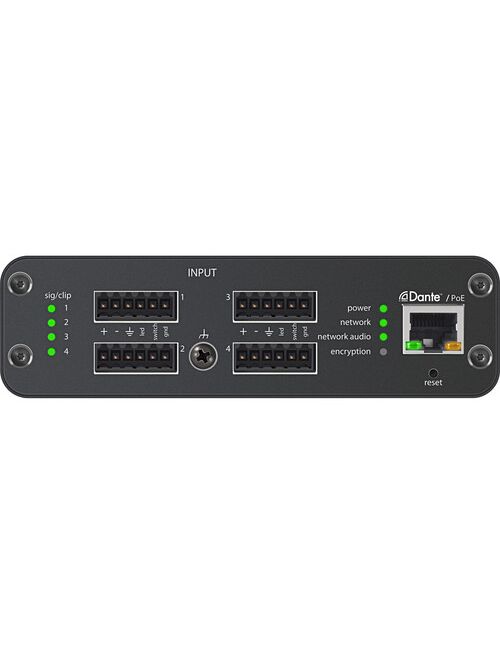

ANI4IN-BLOCK Audio Network Interface, RJ45, 4 Channels MIC/LINE IN-DNTE+LGC
Please sign in so that we can notify you about a reply
Audio network interface brings up to 4 analog wired microphones onto Dante for easy audio routing and convenient browser-based remote control.
Features
- Single Ethernet port carries Dante audio, power (PoE – class 0)
- LEDs indicate device status and audio signal
- Control strings for third-party preset controllers including Crestron® and AMX®
- 4 Band C/S PEQ on every channel
- Provides channel summing to combine input signals and send them over a single Dante™ channel
- Browser-based software control for all device parameters, per input channel:
- Preamp gain
- Mute control
- Digital gain
- Polarity control
- Phantom power
- 1/3 Rack unit wide
- Chassis ground screw (BLOCK version only) provides common chassis ground for multiple inputs
- Available in block connector (audio + logic) and standard XLR variations
Brand:
Shure
Specifications
Product Type:
Audio Network Interface
Special Features:
Single Ethernet Port
Power Rating:
10W
Maximum Operating Temperature:
40°C
Colour:
Black
Minimum Operating Temperature:
-6.7°C
Performance
Maximum Gain:
51dB
Frequency Rating:
20Hz to 2000Hz
Total Harmonic Distortion:
<0.05%
Sampling Frequency:
48kHz
Audio Dynamic Range:
113dB
A/D and D/A Conversion Type:
24bits
Input Impedance Rating:
5kΩ
Inputs and Ports
Input Port Type:
Block
Output Port Type:
1xRJ45
Interface Type:
RJ45
Dimensions
Width:
14cm
Depth:
12.8cm
Height:
4cm
Weight:
672g
