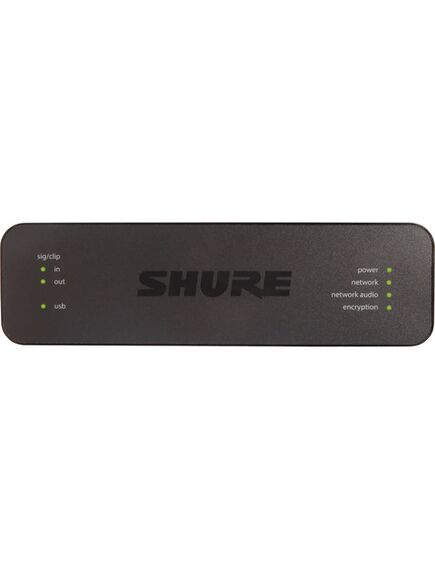

ANIUSB-MATRIX Audio Network Interface, RJ45, 4 Channels In/2 Channels Out
Please sign in so that we can notify you about a reply
The ANIUSB-MATRIX USB Audio Network Interface complements the existing ANI4IN, ANI4OUT, and ANI22 products. It offers the ideal performance, connectivity, and affordability for audio/video conferencing installations in small and medium-size meeting rooms when a premium microphone solution is desired, and acoustic echo cancellation of an A/V conferencing codec will be used.The ANIUSB-MATRIX connects 4 Microflex Advance or Microflex Wireless microphone channels via Dante (4 in / 2 out), provides analog connectivity (1 block in / 1 block out) to a room audio/video conferencing system or a PC-based A/V conferencing application via USB (1 in/out).An internal matrix mixer offers flexible routing, allowing users to route any input to any output. A 4-band parametric EQ filter is also available on the analog and USB outputs.
Features
- Connects 4 Dante audio inputs and 1 analog input to a AV conferencing system or a PC-based videoconferencing application
- Flexible signal routing and connectivity: analog audio (1 block in / 1 block out) to room AV conferencing system, USB (1 in/out) to connect to laptop or room PC
- Dante Domain Manager / Device Lock compatible . (Add “DDM Ready” icon)
- Easily setup and deploy settings with Designer System Configuration Software
- Power-over-Ethernet (PoE) eliminates the need for an outboard power supply
- Compact form factor is easy to mount without equipment rack
Brand:
Shure
Specifications
Product Type:
Audio Network Interface
Special Features:
Compact, Mounts Easily
Dante Interface:
1xRJ45
Power Rating:
6.5W
Maximum Operating Temperature:
40°C
Colour:
Black
Applications:
Conference
Minimum Operating Temperature:
-6.7°C
Performance
Frequency Rating:
20Hz to 20KHz
Total Harmonic Distortion:
<0.05%
Sampling Frequency:
48kHz
Audio Dynamic Range:
113dB (Analog to Dante), 117dB (Dante to Analog)
A/D and D/A Conversion Type:
24bits
Input Impedance Rating:
10.6kΩ
Output Level Type:
20dB (Line), 0dB (Auxiliary), -26dB (Mic)
Line Maximum Input Level:
+27dBV (Line), +15dBV (Auxiliary)
Inputs and Ports
Input Port Type:
1x3-Pin Block
Interface Type:
RJ45
Dimensions
Width:
14cm
Depth:
12.8cm
Height:
4cm
Weight:
668g
