DN44BOB Digital Audio Interface, Phoenix/RJ45, 4 In/Out
Please sign in so that we can notify you about a reply
DN44BOB is a 4 inputs and 4 outputs DANTE (Audio Over IP) Break Out Box. It allows to convert 4 analogue audio signals into 4 DANTE channels and send them into an Ethernet LAN, as well as to take 4 DANTE channels from the Ethernet network and convert them to analogue audio signals. It includes 4 GPI control ports (0-10VDC) and 4 GPO control ports (NO/NC relays). Can be used together with EclerNet DANTE ready products or as a stand-alone DANTE interface, together with any audio device including analogue audio inputs and/or outputs.
Features
- Ethernet, interface, DANTE audio and EclerNet compatible
- 4 MIC/LINE balanced inputs, with Phantom Power and 3 sensitivity levels, Euroblock connector
- 4 balanced LINE Outputs, Euroblock connector
- 4 GPI ports (0-10VDC)
- 4 GPO ports, NO / NC

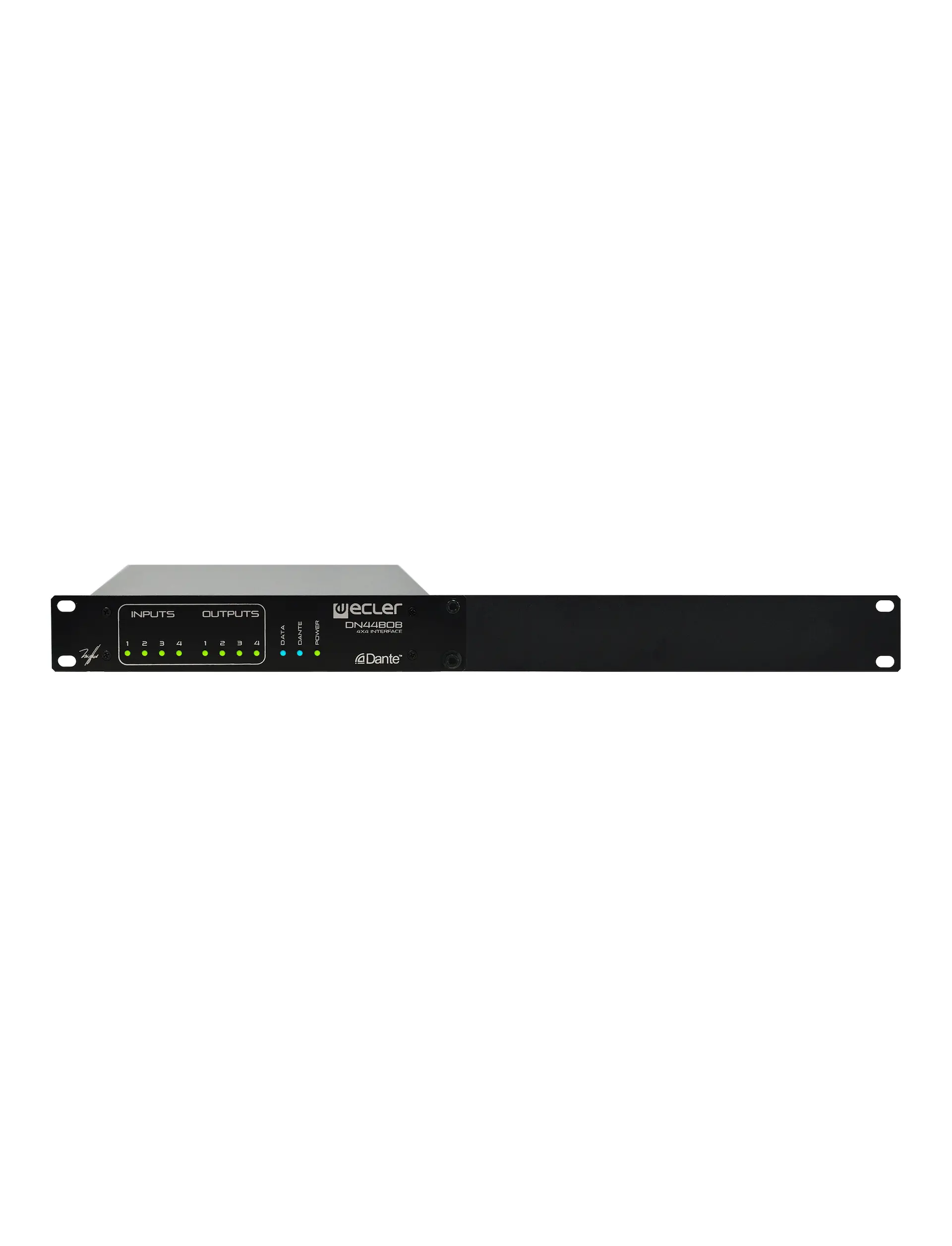

- Rack-mount kit included: 1UHRMKIT + PUM3- Rackmount accessories to mount 2 half- width RU devices in 1 standard width RU space or to mount 1 half- width RU device in 1 standard width RU space
Brand:
Ecler
Specifications
Product Type:
Digital Audio Interface
Dante Interface:
1xRJ45
Power Rating:
6.5W
Applications:
Retail, Hospitality, Leisure, Corporate, Sports & Wellness
Includes:
Rack-Mount Kit: 1UHRMKIT+PUM3 Rack-Mount Accessories to Mount 2 Half-Width RU Devicesin 1 Standard Width RU Space or to Mount 1 Half- Width RU Devicein 1 Standard Width RU Space
Performance
Maximum Gain:
6dB
Frequency Rating:
5Hz to 24KHz
Total Harmonic Distortion:
<0.004% (Line), <0.008% (Mic)
A/D and D/A Conversion Type:
24bits
Input Impedance Rating:
>4KΩ
Inputs and Ports
Input Port Type:
4xPhoenix, 4xDante/AES67
Output Port Type:
4xPhoenix, 4xDante/AES67
Interface Type:
Phoenix, RJ45
Power
Voltage Rating:
24V DC, 100 to 240V AC
Phantom Voltage Rating:
+18V DC
Standards
Standards Met:
47 CFR Part 15, Subpart B, Device Class A
Dimensions
Width:
24.1cm
Depth:
15.2cm
Height:
4.4cm
Weight:
1.1kg
