MWX45/B Wall Panel Controller, CAT5 UTP Cable, Black
Please sign in so that we can notify you about a reply

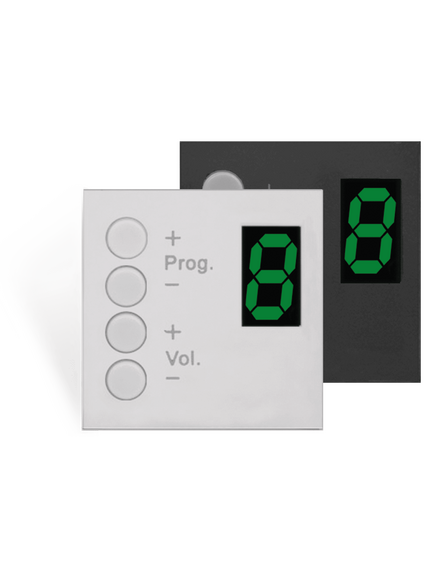

The MWX45 are wall panel controllers to be used in combination with the AUDAC MTX series multi-zone audio matrix systems and the AUDAC AMP523MK2 & RM523. It provides the possibility to select the desired audio source and control the volume for one zone. The 7 segment LED display indicates the current selected audio source (1-8) or volume. The connection between the wall panel and the matrix system is achieved by using standard CAT5 UTP cable which should be connected to the terminal block connector on the back side of the wall panel. The wall panels are available in 45 mm, this version is compatible with AUDAC, Niko, Legrand and other standard 45 x 45 mm installation materials. Thanks to its slim and good looking design, these wall panel controllers will blend into all kinds of different environments or interiors. Available in black (/B) and white (/W). There are two different AUDAC cover frames with metal subframe available, for 1 or 2 units, which are also available in black (/B) or white (/W).
Features
- Terminal block connection
- Integration with 45 x 45 mm installation materials
- Led display
- Program selection and volume control
Brand:
Audac
Specifications
Product Type:
Wall Panel Controller
Special Features:
7 Segment LED Display Indicates the Current Selected Audio Source (1-8) or Volume
Power Rating:
0.35W
Colour:
Black
Chassis Material:
ABS
Applications:
Bar, Restaurant, Retail, Hotel, Corporate, Residential
Inputs and Ports
Interface Type:
CAT5 UTP Cable
Serial Connector Type:
RS-485 Connector, 4-Pin Euro Terminal Block
Power
Voltage Rating:
24V
Current Rating:
14mA
Dimensions
Width:
4.5cm
Depth:
3.3cm
Height:
4.5cm
Weight:
0.02kg
