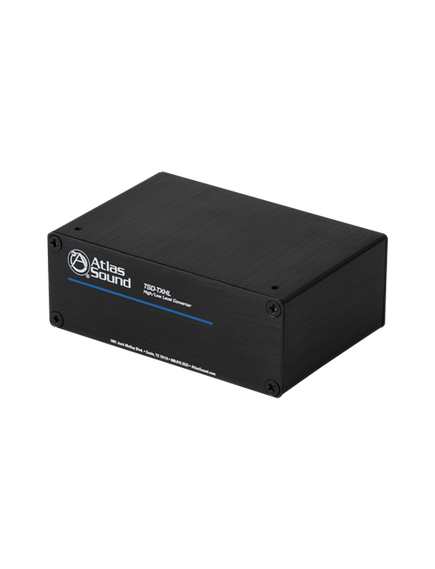

TSD-TXHL High / Low Level Converter
Please sign in so that we can notify you about a reply
The TSD-TXHL is a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices.The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations.The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with AtlasIED's CP and PA series amplifiers.
Features
- Tap into 4Ω/25/70/100V Speaker Lines to Interface with Remote Amplifiers
- Input Gain Adjustment Switch
- Trim Level Control
- Isolated Transformer
- Removable I/O Connectors
- No External Power Required
Brand:
Atlas IED
Specifications
Product Type:
High/Low Level Converter
Special Features:
Trim Level Control, Isolated Transformer
Colour:
Black
Chassis Material:
Aluminium
Applications:
Government Building, Medical Facility, Office Environment, Church, Restaurant, School, Industrial Facility, House of Worship
Performance
Frequency Rating:
40Hz to 25kHz
Power
Output Impedance Rating:
600Ω (Unbalanced)
Dimensions
Width:
10.1cm
Depth:
6.3cm
Height:
3.8cm
Weight:
0.1kg
