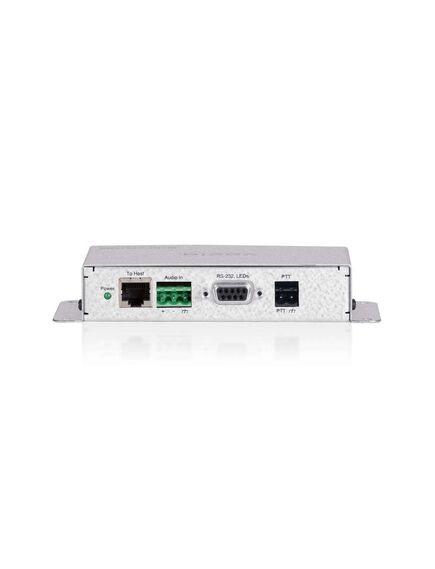

Vocia VPSI-1 Paging Station Interface, RJ45/Shielded Ethernet
Please sign in so that we can notify you about a reply
The VPSI-1 device is designed to allow third party microphones and LED indicators to interface as slave devices to the Vocia Wall Station and Desk Station (WS-4/10 and DS-4/10) series microphones and to the Vocia Input 6 (VI-6) device for paging via the Paging Ports. Up to four VPSI-1 interfaces can be connected per VI-6 when configured for Vocia Auxiliary Microphone mode. The VPSI-1 can also facilitate third party microphones and control system interfacing with Vocia standard and Emergency Wall and Desk Stations (WS-4/10, EWS-4/10 and DS-4/10). The host Paging Station must be configured for ‘Remote Control mode within the software.
Features
- Slave interface to Vocia Paging Stations and VI-6 device
- Visual feedback of Paging and Zone status
- Suitable for surface mounting
- Audio, Power and Control over a single Ethernet cable
Brand:
Biamp
Specifications
Product Type:
Paging Station Interface
Special Features:
Breakout Connection
Maximum Operating Temperature:
40°C
Colour:
Grey
Humidity:
0 to 95%
Minimum Operating Temperature:
-5°C
Performance
Total Harmonic Distortion:
<0.08%
Inputs and Ports
Interface Type:
RJ45, Shielded Ethernet, CAT5, CAT5e, CAT6, CAT7
Standards
Standards Met:
CE Marked, UL Listed, RoHS Directive
Dimensions
Width:
15.5cm
Depth:
8cm
Height:
3cm
Weight:
300g
