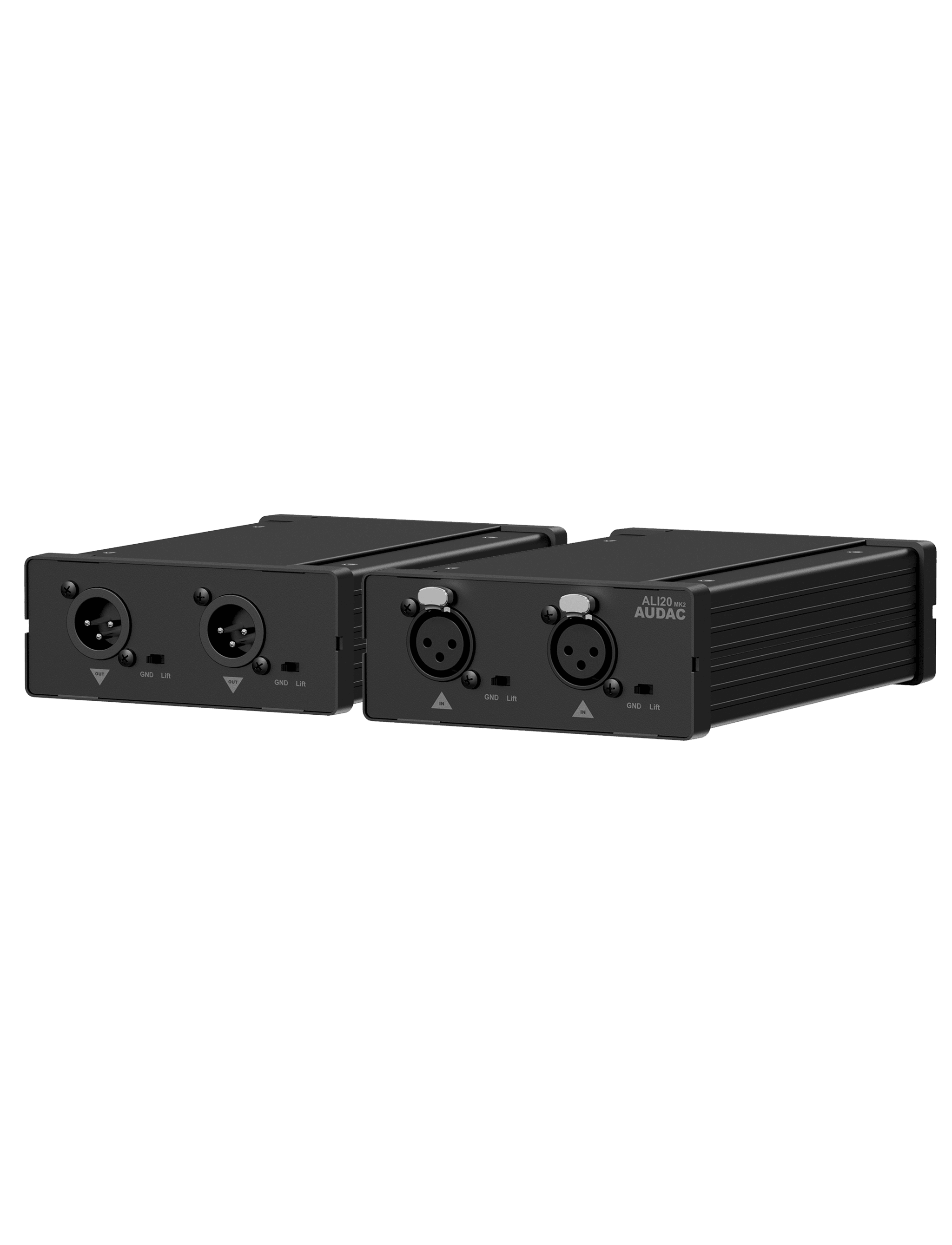

ALI20MK2 Audio Line Isolator, 2xXLR Female (Input)/2xXLR Male (Output) Shielded
Please sign in so that we can notify you about a reply
The ALI20/25 are audio line isolators designed to isolate audio devices from each other. In most cases, they are used to avoid hum caused by ground loops in audio systems. They offer a complete passive solution for the isolation of a stereo balanced audio signal. It features dual XLR in- and output connectors and a ground lift switch. The in- and output phase are matching. The ALI20/25 are both built with an audio transformer that has a turns ratio of 1:1 and an impedance of 600 Ohm. The difference is the shielding of the transformer. The ALI20 contains a shielded transformer which complies with the requirements of most standard applications, while the ALI25 contains a MU-metal shielded transformer which can be used when regular shielding becomes inadequate. This ensures the best results in even the highest EMI polluted environments.
Features
- S-box™ Modular Multifunctional Enclosure
Brand:
Audac
Specifications
Product Type:
Audio Line Isolator
Special Features:
Used to Avoid Hum Caused by Ground Loopsin Audio Systems, S-Box Modular Multifunctional Enclosure
Colour:
Black
Performance
Impedance Rating:
600Ω
Frequency Rating:
105kHz (High Cutoff ±3dB), 0.8Hz (Low Cutoff ±3dB), 20Hz to 20kHz (Response)
Inputs and Ports
Connector Type:
2xXLR Female (Input), 2xXLR Male (Output)
Dimensions
Width:
10.8cm
Depth:
16.5cm
Height:
4.4cm
Weight:
0.4kg
Shipping Weight:
0.7kg
