VEO-AXS4 De-Embedder, 2 Channel, Type-A Female HDMI 2.0 Input, Type-A Female HDMI 2.0 Output, 24 Bit
Please sign in so that we can notify you about a reply

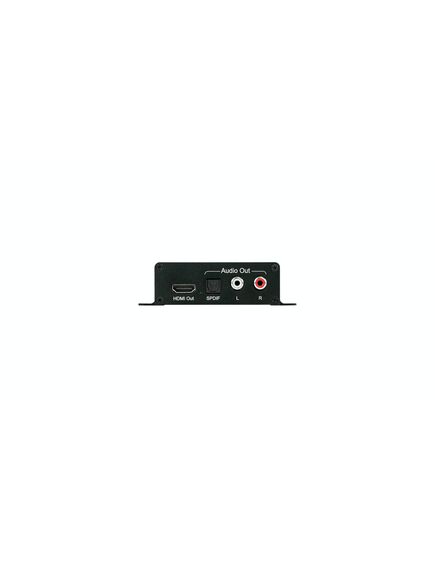

Ecler VEO-AXS4 is a professional HDMI audio de-embedder that allows to extract audio from the HDMI signal, including audio from 4K sources. VEO-AXS4 provides uncompressed LPCM analog stereo signal through RCA output as well as Dolby Digital and DTS multichannel signals through the S/PDIF digital output. The VEO-AXS4 is HDCP 2.2 and HDMI 2.0 compliant, supporting data rates up to 18 Gbps and video resolution up to 4K/60Hz with 4:4:4 chroma sample and HDR content.
Features
- Audio EDID Settings: Auto/2.0 CH/5.1CH
- Extracts digital HDMI audio signal from HDMI input to 2 channels
- Analog stereo and 5.1 S/PDIF output
- Signal amplifier and equalizer for extending HDMI input and output ports for up to 10 meters (33 feet)
- Supports LPCM, Dolby Digital and DTS
- Supports resolution up to 4K@60Hz YUV 4:4:4
- Supports deep color up to 36bit
- Supports sample rate up to 192 KHz and resolution up to 24 bit
- HDCP 2.2/1.4 Compliant
- Supports CEC
Brand:
Ecler
Specifications
Product Type:
De-Embedder
Audio Format:
LPCM 2.0, LPCM 5.1, Dolby Digital, DTS-HD Master Audio, Dolby true-HD
Control Type:
1xSwitch for 2.0CH Audio, Auto Mode (Pass-Through)/5.1CH Audio
Special Features:
Signal Amplifier and Equalizer for Extending HDMI Input and Output Ports for Up to 10m
Maximum Operating Temperature:
35°C
Applications:
All the where HDMI Audio Embedding or De-embedding is Required
Indicator Type:
LED
Material:
Metal
Humidity:
5 to 90%
Minimum Operating Temperature:
5°C
Includes:
1xInternational DC 5V Power Supply
Performance
Video Format:
HDMI
Digital Audio Bit Depths:
24Bits
Inputs and Ports
Digital Video Input Type:
Type A Female HDMI 2.0
Input Port Type:
HDMI
Output Port Type:
HDMI
Audio Connector:
Analog Stereo RCA and 5.1 S/PDIF Output
Digital Video Output Type:
Type A Female HDMI 2.0
Power
Voltage Rating:
100 TO 240V AC
Standards
Standards Met:
HDCP 2.2 Compliant, HDMI 2.0 Compliant
Dimensions
Width:
6.5cm
Depth:
10.5cm
Height:
2.9cm
Weight:
0.1kg
Shipping Weight:
0.5kg
