MX396/C-DUAL Dual-Element Boundary Microphone, Cardioid, Black
Please sign in so that we can notify you about a reply
Microflex Multi-Element Boundary microphones deliver a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.
Features
- Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
- Configurable mute switch with logic output
- RF filtering with CommShield™ technology
- End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
- Individual control of each element
- Bi-color status indicator
- Logic input/output for remote LED and mute control
Brand:
Shure
Specifications
Product Type:
Dual-Element Boundary Microphone
Polar Pattern:
Cardioid
Mounting Type:
Mounting Tube
Element Type:
Electret Condenser
Special Features:
Low Profile Aesthetic Design
Colour:
Black
Applications:
Conference Room
Includes:

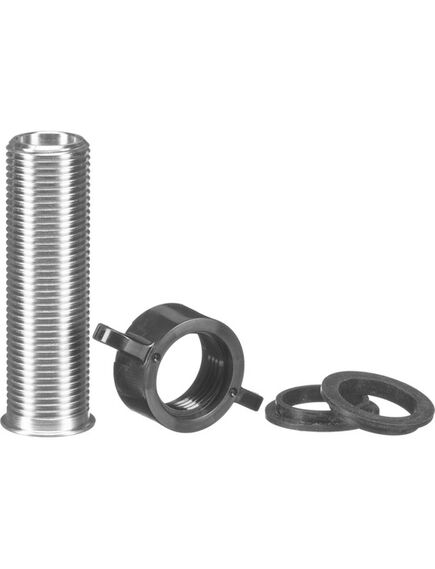

Fastening Wingnut, Fastening Tube, 1xCardioid Replacement Cartridge, Rubber Isolation Rings
Performance
Impedance Rating:
170Ω
Sensitivity Rating:
-35dBV/Pa
Signal-to-Noise Ratio:
66dB
Signal-to-Noise Ratio:
66dB
Frequency Rating:
50 to 17000Hz
Maximum Sound Pressure Level:
122dB
Total Harmonic Distortion:
1%
Noise Level:
28dB (Output)
Power
Voltage Rating:
48 to 52V DC
Power Source Type:
Phantom
Current Rating:
10mA
Dimensions
Width:
11cm
Height:
2.4cm
Weight:
0.5kg
