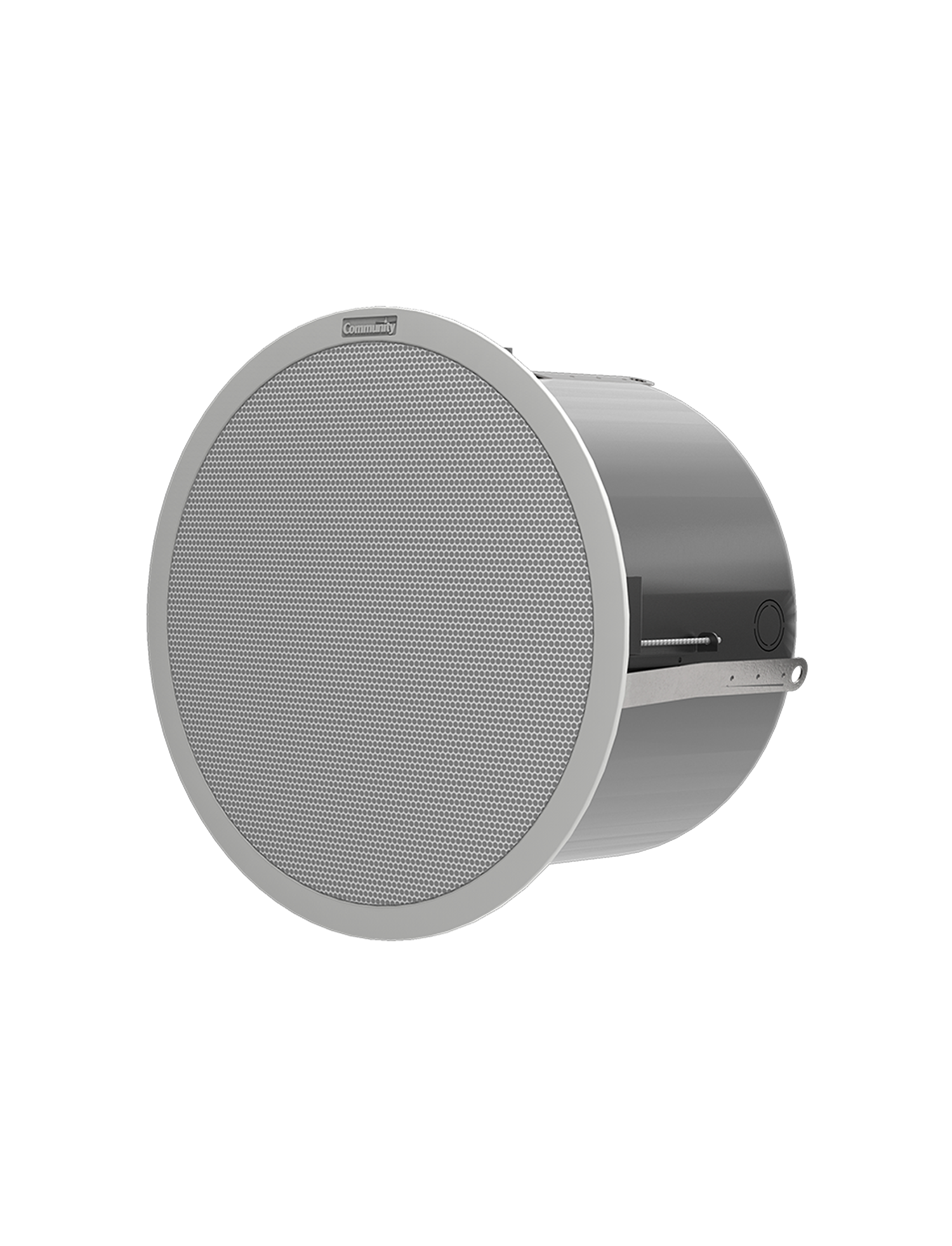

D8 Full Range Ceiling Loudspeaker, Two Way, 13", 150W, White, 100°
Please sign in so that we can notify you about a reply
The D8 has a more focused dispersion, higher sensitivity, output and greater LF extension than the smaller models. The high performance D8 is a true coaxial loudspeaker with a real compression driver concentrically arranged so that the upper frequencies e
Features- High intelligibility with exceptional uniform coverage
- Consistent, wide dispersion up to 16 kHz
- True coaxial loudspeakers with HF compression drivers
- Tru-Phase™ high-frequency waveguide
- Patented Carbon Ring Cone Technology™
- Spring loaded Drop-Stop™
Brand:
Biamp
Specifications
Product Type:
Full Range Ceiling Loudspeaker
Coverage Angle:
100° (Conical 1kHz to 6kHz)x115° (Conical 500Hz to 6kHz)
Diameter:
33.5cm
Speaker Configuration:
Two Way
Mounting Type:
Ceiling Mount
Sound Level:
117dB (Peak 8Ω), 123dB (Peak 8Ω)
Series:
D
Power Rating:
150W (Continuous), 375W (Program)
Colour:
White
Applications:
Convention Center, Exhibit Hall, Corporate Training Room, Ballroom, Athletic Venue, Sports Facility, Health Club, Houses of Worship, Mall, Airport
Material:
Steel
Performance
Frequency Rating:
60Hz to 22kHz
Inputs and Ports
Number of I/O Connector:
4
Input Connector Type:
Euroblock Connector
Power
Voltage Rating:
70 to 100V
Standards
Standards Met:
ETL Listed, UL1480, UL2043, CSA60065, NFPA 70, NFPA 90
Dimensions
Depth:
20.7cm
Weight:
7.4kg
