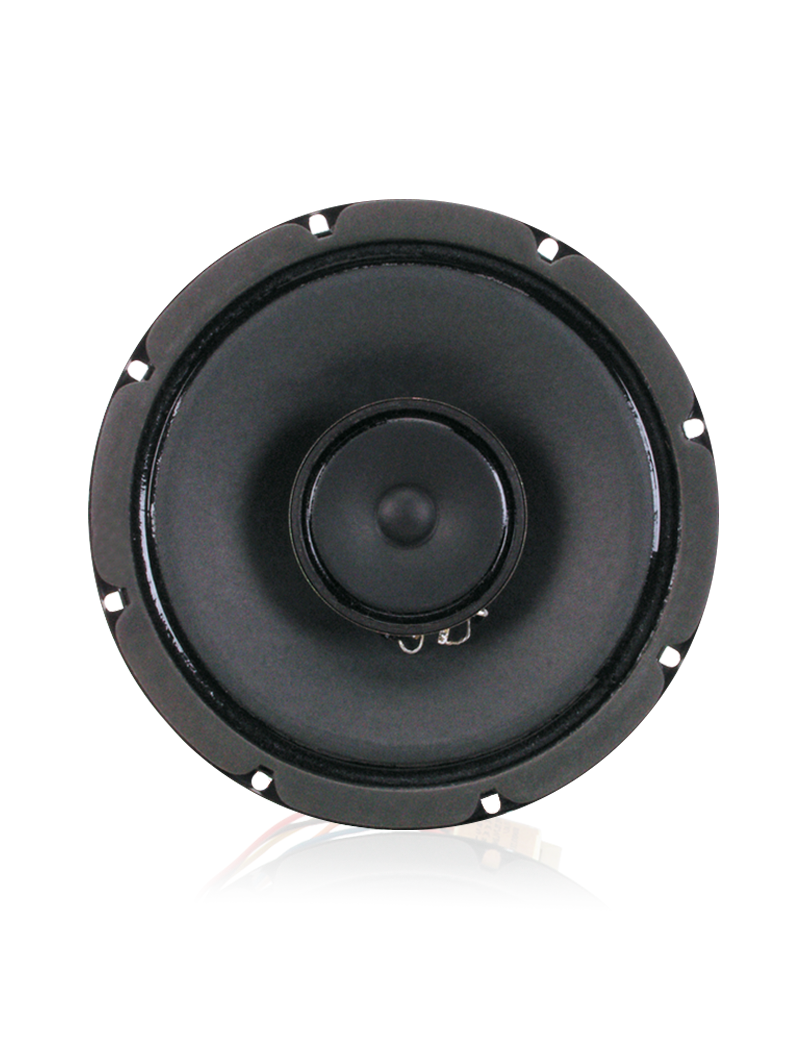

GD87 8" In-Ceiling Coaxial Speaker with 8-Watt 70.7V Transformer
Please sign in so that we can notify you about a reply
The GD87 is a high performance coaxial speaker with performance specifications identical to the legendary AtlasIED Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87 without any noticeable sonic or performance differences. The high-quality, 16 watt Model GD87 utilizes a post mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 45Hz - 19kHz (nominal) frequency response and a broad, uniform dispersion pattern of 105° (2kHz octave band). The GD87 combines a full-size 8" (203mm) dia., low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1m). The speaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz - 15kHz. The primary taps are 1, 2, 4, and 8 watts.
Features- Individually Packaged for Stocking & Ordering Convenience
- Safety Listed to UL 1480 & UL 2043
- Industry Standard 8" (203mm) Coaxial, 16 Watt, Loudspeaker with High Quality Factory Installed 8 Watt Line Matching Transformer
- Offers Proven Performance with Wide Frequency Response
- Post-Mounted Tweeter Adds Strength and a More Attractive Appearance
Brand:
Atlas IED
Specifications
Product Type:
Coaxial Speaker/Transformer Assembly
Coverage Angle:
105°
Diameter:
20.5cm
Number of Included Speakers:
1
Series:
C
Power Rating:
15W (RMS)
Colour:
Black
Applications:
Commercial, Industrial, Institutional
Performance
Frequency Rating:
55Hz to 15kHz
Power
Voltage Rating:
70V
Standards
Standards Met:
UL 1480, UL 2043
Dimensions
Depth:
7.3cm
Weight:
908g
