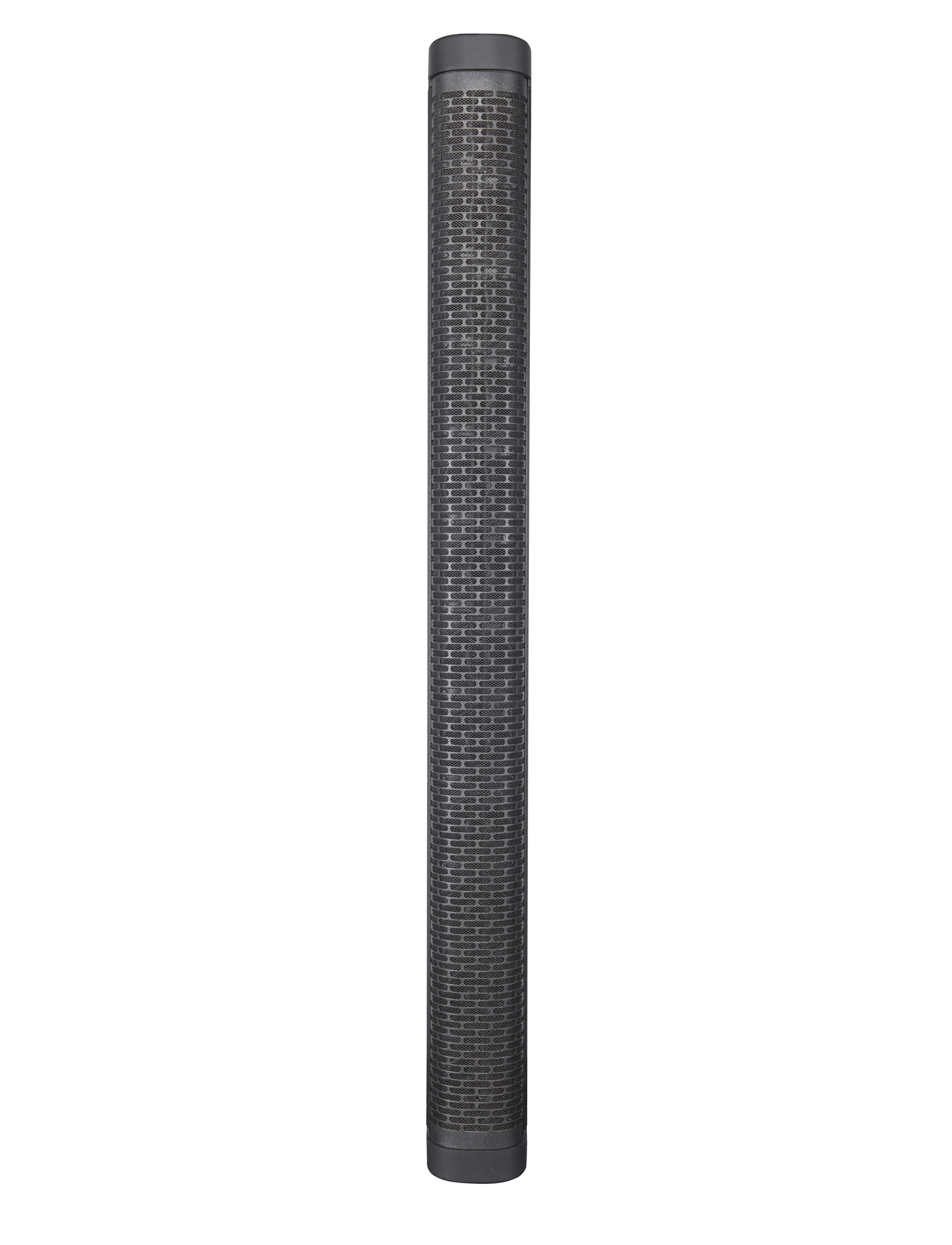

AX12LF 12 x 3.5” (88mm), High Power, Passive, Portable Line Array Element
Please sign in so that we can notify you about a reply
The AX12LF Line Array is a passive system equipped with twelve 3.5” long-excursion neodymium transducers with waterproof cones, designed to provide low-frequency extension for AX12C and AX6C multiple systems. Wherever a subwoofer is not needed, such as in speech applications or corporate events, the AX12LF provides a one octave low frequency extension to the AX12C and AX6C. The same lightweight aluminum frame box and the common suspension systems allow perfect integration with AX12C and AX6C elements.
Features- High Power Passive Portable Line Array Element
- 12 X 3.5” Long-Excursion Neodymium Transducers with Waterproof Cones
- 320w Continuous Power – 640W Program Power
- 90 - 200 Hz Low-Frequency Extension For AX12C And AX6C Systems
- Acoustic Transmission Line Back Loading Design
- Fast, Easy-to-Use Integrated Suspension System
- Aluminium Frame Structure
- Designed for Mobile and Installed Applications
- Black or White Finish
Brand:
Axiom
Specifications
Product Type:
Portable Line Array Element
Principle:
Line Array Element, Short Transmission Line Back Loading
Coverage Angle:
360°(Horizontal)
Transducer Type:
LF -12x88 mm Neodymium Magnet Woofers/25mm Voice Coil
Series:
AX
Special Features:
Fast, Easy-to-Use Integrated Suspension System
Colour:
Black
Applications:
Installed System for Theatres, Houses of Worship, Conference Rooms, Portable AV System For Corporate Events
Coating Type:
High Resistance Water Based Paint
Enclosure Material:
Aluminium
Performance
Impedance Rating:
8Ω
AES Power Rating:
320W
Maximum Sensitivity Rating:
124dB
Program Power Rating:
640W
Frequency Rating:
90Hz to 200Hz
Inputs and Ports
Input Connector Type:
Neutrik speakON NL4x2
Dimensions
Width:
10.7cm
Depth:
19.3cm
Height:
121.2cm
Weight:
15.3kg
