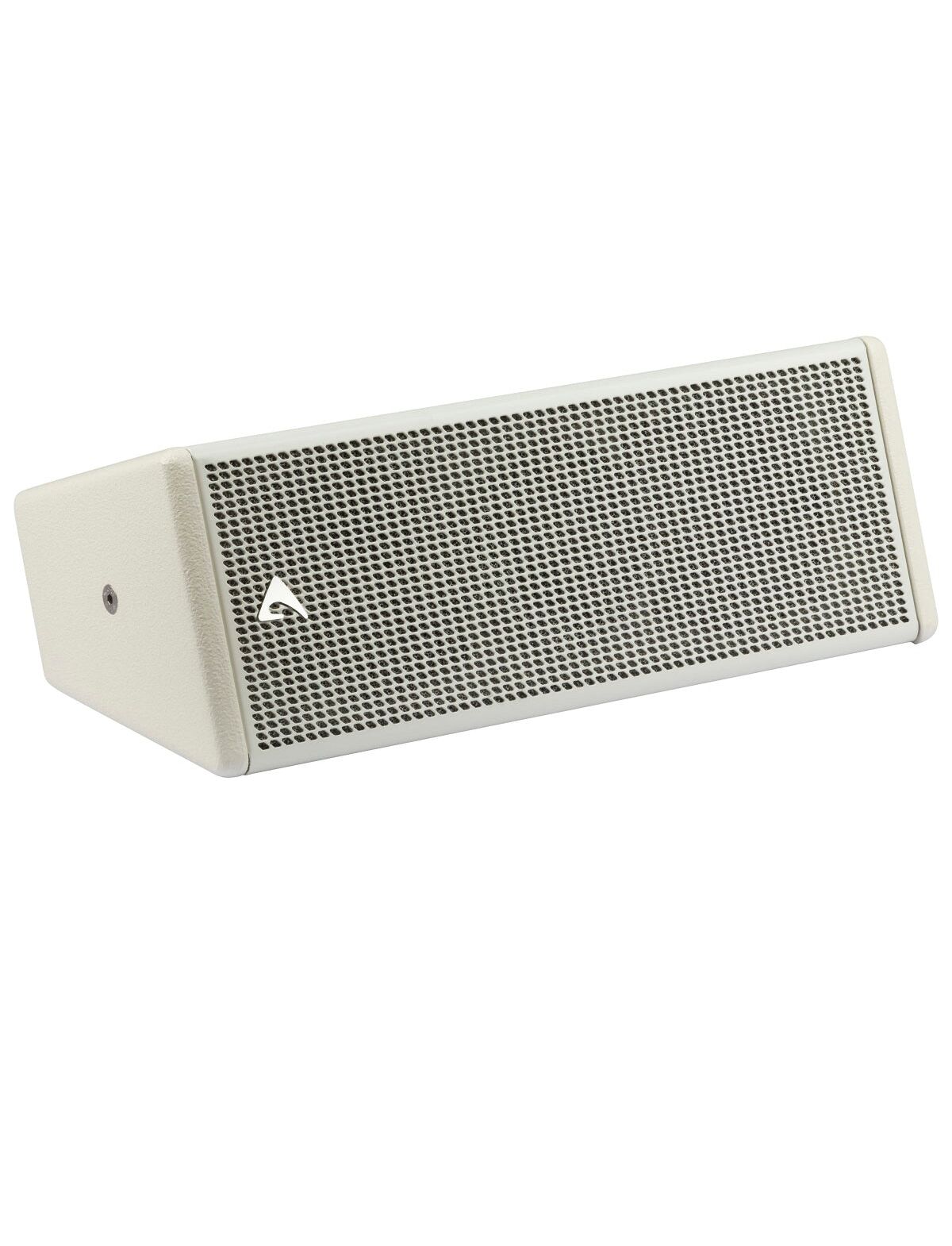

ED25PWH 2 x 5.25” Passive Two-way Full Range Loudspeaker, White
Please sign in so that we can notify you about a reply
Designed for near-field sound reinforcement applications such as television, stage front, conferencing, theatres, and audio-visual, the ED25P is an ultra-compact passive two-way loudspeaker that can be used either on its own or in small loudspeaker arrays creating even and seamless coverage. Its two 5.25” woofers and high frequency dome tweeter with Spherical Wave Guide Horn are arranged in a WTW linear enclosure configuration to give a wide dispersion pattern that works well in fixed installations using a minimal number of units, allowing widely spaced units to cover large spaces with high quality background sound. The cabinet is trapezoidally shaped, and also asymmetrical, and this profile not only allows the assembly of small clusters using the integral flypoints, but also enables it to be suspended horizontally very close to a ceiling or placed on a stage front as a low profile monitor. Due to its low profile, the ED25P is an ideal stage lip monitor, and especially useful for fashion show catwalks where it can be unobtrusively provide alternate inwards/outwards coverage for both audience and presenters. The ED25P features high quality passive crossovers for efficient use of available amplifier power and simplicity of operation.
Features- WTW Configuration with a Spherical Wave Guide Horn (SWGH)
- FEA Computer Modelled Horn Profile
- Ultra-Compact Size
- Easily Configurable in Small Arrays
Brand:
Axiom
Specifications
Product Type:
Compact Loudspeaker System
Coverage Angle:
80°(Horizontal), 65°(Vertical)
Number of Included Speakers:
1
Driver Size:
LF Transducer: 5.25in
Speaker Configuration:
Two Way
Mounting Type:
Wall Mount
Sound Level:
116dB (Peak)
Series:
ED
Power Rating:
100W (AES), 200W (Program)
Colour:
White
Applications:
Distributed Systems, Theatre Underbalcony, Corporate and A/V, TV and Broadcast, Conferencing, Stage Lip Monitoring, Near Fill and Front Fill, Live Music Venues, Bars and Restaurants, House of Worship, Retail Outlets
Enclosure Material:
Plywood
Enclosure Type:
Vented
Included Accessories:
FEA Computer Modeled Horn Profile
Performance
Impedance Rating:
16Ω
Frequency Rating:
125Hz to 20kHz
Inputs and Ports
Number of I/O Connector:
2 (Input)
I/O Interface Type:
Neutrik SpeakON NL4MPx2
Standards
Standards Met:
RoHS Directive 2011/65/EU and 2015/863/EU, WEEE Directive 2012/19/EU, S.I. 2012/3032
Dimensions
Width:
17.6cm
Depth:
19cm
Height:
46cm
Weight:
7kg
No reviews found
