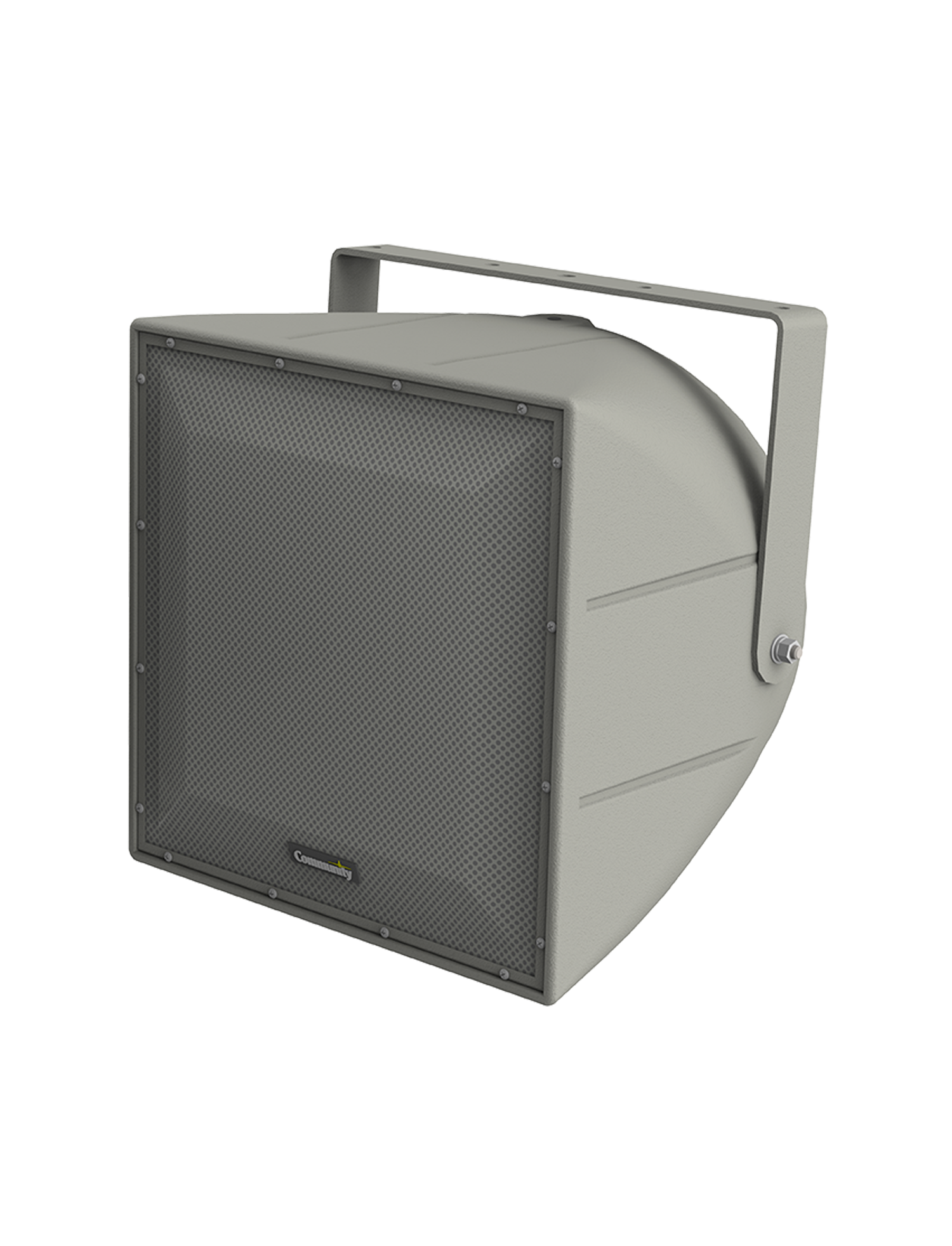

R.5HPT Horn Loaded Weather-Resistant Full-Range Loudspeaker, Three Way, Grey, 60° Hx40° V
Please sign in so that we can notify you about a reply
The higher power three-way R.5HP offers higher sensitivity and additional mid range clarity for noisy or reverberant environments. The R.5HP maximizes vocal projection and intelligibility over distance by incorporating a Community M200 midrange compression driver on a coaxially mounted 60° x 40° horn, creating a focused directivity pattern with a pronounced response emphasis in the midrange voice band. The LF and HF contribute significantly to the response, resulting in effortless, realistic voice reproduction that is ideal for voice PA applications in stadiums, fair grounds, or auto racing tracks.
Features- FEATURES:
- Weather-resistant, rotomolded UV enclosure
- Weather-treated drivers and crossovers
- Corrosion-resistant zinc-rich epoxy dual-layer powder coated steel grille and yoke
- Pattern control down to 630 Hz
- High efficiency
- Integral mounting points
- High power passive crossover
- Five-year product warranty / Fifteen-year enclosure warranty
- APPLICATIONS:
- Primary Loudspeakers for stadia and athletic fields
- Outdoor background music / paging systems
- Theme and amusement parks
- Fairgrounds, rodeos, air shows
- Malls, cruise ships, skating rinks
- Swimming pools
- Convention centers
- Portable sound systems
- Racetrack catch fence systems
Brand:
Biamp
Specifications
Product Type:
Horn Loaded Full Range Weather-Resistant Loudspeaker
Coverage Angle:
60° (Horizontal)x40° (Vertical)
Number of Included Speakers:
1xLF, 1xMF, 1xHF
Driver Size:
12in (LF), 1in (HF)
Speaker Configuration:
Three Way
Mounting Type:
Bracket Mount
Sound Level:
128dB
Series:
Point Source R
Power Rating:
70V: 200W, 100W, 50W, 25W, 100V: 200W, 100W, 50W
Colour:
Grey
Applications:
Stadia, Athletic Field, Outdoor Background Music/Paging System, Theme and Amusement Park, Fairground, Rodeo, Air Show, Mall, Cruise Ship, Skating Rink, Swimming Pool, Convention Center, Portable Sound System, Racetrack Catch Fence System
Enclosure Material:
Rotomolded LLDPE
Included Accessories:
Yoke Bracket, Aiming Strap
Performance
Impedance Rating:
25Ω
Frequency Rating:
85Hz to 16kHz
Crossover Frequency:
600Hz, 4kHz
Crossover Type:
High Power Passive
Amplifier Power Rating:
25 to 200W@70V, 50 to 200W@100V
Inputs and Ports
I/O Interface Type:
#18 Multi-Conductor Cable (4 m)
Power
Voltage Rating:
70, 100V
Standards
Standards Met:
IP55W per IEC 60529 Designed to MIL-STD-810G
Dimensions
Width:
40.6cm
Depth:
41.1cm
Height:
40.6cm
Weight:
20.6kg
Shipping Weight:
23.6kg
