CANTO7.6/B 6 x CIRA524 + COM108 Black version
Please sign in so that we can notify you about a reply

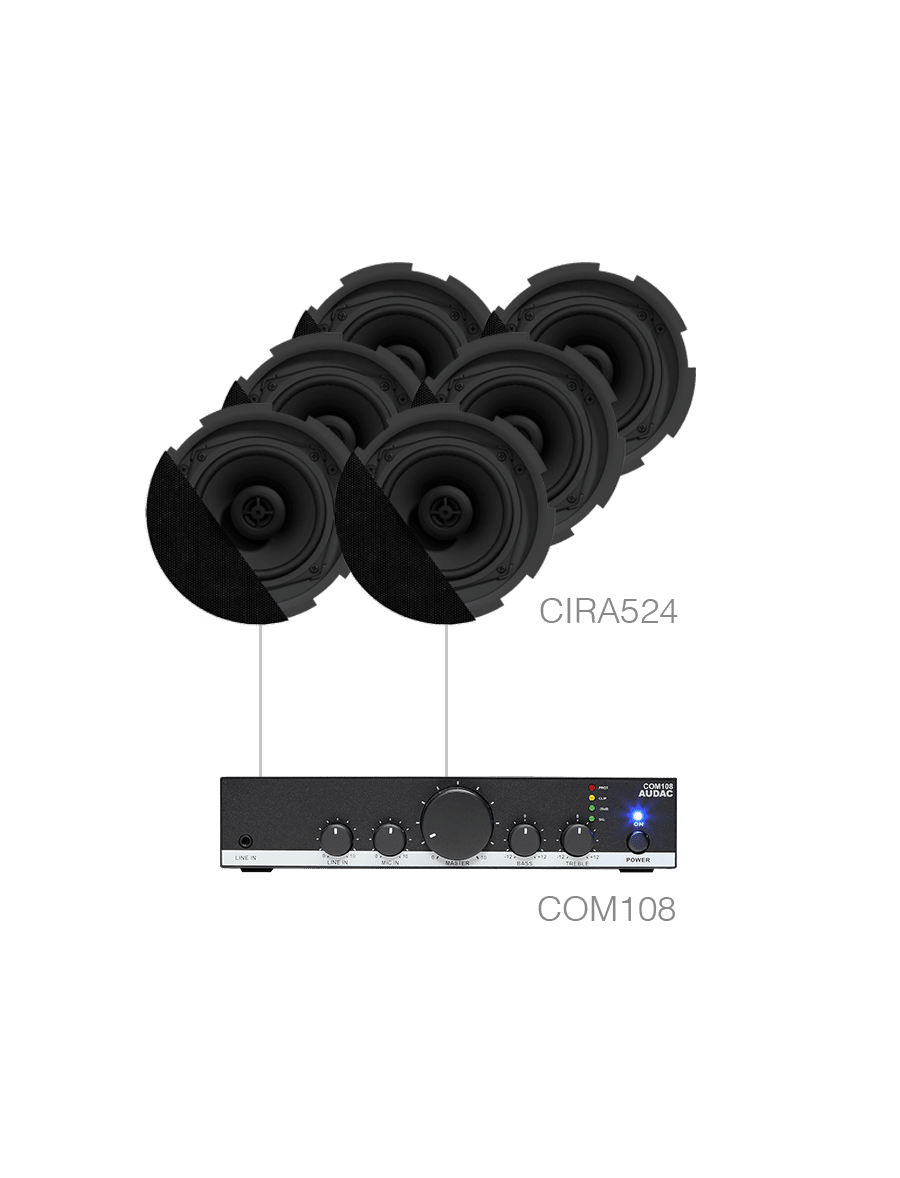

The CANTO7.6 Set is Composed of The CIRA524 Full-Range Ceiling Speakers With Borderless Grill Design. The CIRA524 Provides A Clear And Intelligible Sound, Suited For Versatile 100 Volt Background Music And Announcement Systems. Powered By A Com108 Amplifier, Great Flexibility For Connecting Sources And Microphones Is Offered. This System, Using Six CIRA524 Ceiling Speakers, Can Cover Areas Of Around 100 M². For This 100v Solution, A 12w Power Tapping On The Cira524 is Required.
Features- Easy To Use
- High Quality Sound
- Versatile Solution
- Borderless Grill Design
- Connection Flexibility
Brand:
Audac
Specifications
Product Type:
Ceiling Speaker, Public Address Amplifier
Coverage Angle:
145° (Conical)
Diameter:
19.3cm (Speaker), 21.7cm (Amplifier)
Number of Included Speakers:
6
Driver Size:
5-1/4in (Woofer LF), 1in (HF)
Indoor/Outdoor:
Indoor, Outdoor
Speaker Configuration:
Two Way Coaxial
Music Level:
2
Speech Level:
3
Series:
CIRA, COM
Colour:
Black
Applications:
Bar & Restaurant, Corporate, Retail
Material:
ABS (Speaker), Steel (Amplifier)
Humidity:
95%
Operating Temperature Range:
-20 to 60°C (Speaker), 0 to 40°C (Amplifier)
Performance
Amplifier Class:
Class D
Impedance Rating:
Speaker: 8Ω, Amplifier: 4Ω
SNR Ratio:
>90dB
Loudspeaker Sound Level:
102dB
Loudspeaker Power Rating:
30W (RMS/AES), 120W (Peak)
Loudspeaker Frequency Rating:
60Hz to 20kHz@±3dB
Coverage Area:
100sq m
Amplifier Frequency Rating:
20Hz to 20kHz@±3dB
Amplifier Sensitivity:
-0 to +50dB (Balanced Microphone), -4 to 20dB (Unbalanced Stereo)
Amplifier Power Rating:
80W
Inputs and Ports
Number of I/O Connector:
2 (Input), 1 (Output)
I/O Interface Type:
Multi-Tap Fast-Con™ Connection (Speaker), Input: 3-Pin Euro Terminal Block (Balanced Microphone)/RCA/0.3 cm Jack (Unbalanced Stereo), Output:4-Pin Euro Terminal Block
Power
Voltage Rating:
100V (Speaker), 100/70V (Amplifier)
Dimensions
Depth:
8.3cm (Speaker), 30cm (Amplifier)
Height:
4.3cm (Amplifier)
Weight:
1.1kg (Speaker), 3kg (Amplifier)
