CONGRESS1.3+/B 2x KYDO + NOBA8A + AMP523MK2 Black
Please sign in so that we can notify you about a reply
Description

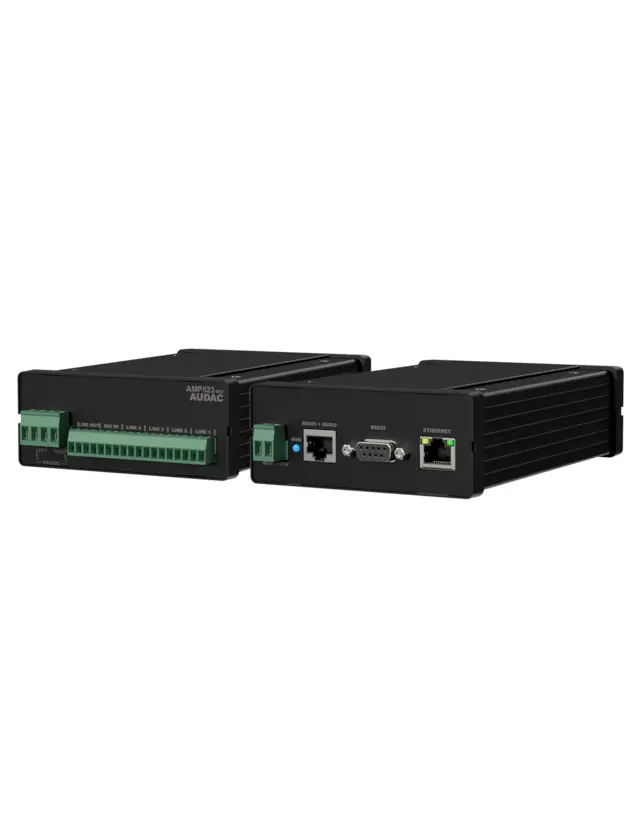

CONGRESS1.3+/B is a set of two KYDO/B speaker systems, a NOBA8A/B subwoofer and an amplifier with a web interface AMP523MK2. NOBA8A/B is an active low-impedance (8 Ohm) subwoofer with a class D amplifier, output power to satellites is 2x75 W, KYDO/B is an acoustic column with 6x2'' speakers with a sensitivity of 90 dB, a power of 60W RMS. AMP523MK2 – miniature amplifier 2x15 W. Black color.
Features
- Unique innovative design
- High intelligibility at medium distances in rooms with difficult acoustics
- Built-in Class D amplifier
- High energy efficiency
- AMP523MK2 increases the number of available inputs and allows control via a web interface
- The set is available in two color options - black (/B) and white (/W
Brand:
Audac
Specifications
Product Type:
Design Column Speaker, Compact Active Bass Cabinet, Mini Stereo Amplifier
Coverage Angle:
170° (Horizontal)x45° (Vertical)
Number of Included Speakers:
2
Driver Size:
Speaker: 2in, Subwoofer: 8in (Ferrite)
Speaker Configuration:
Broadband Column
Series:
KYDO, NOBA, AMP523
Colour:
Black
Applications:
Hotel, Corporate, Residential, Bar & Restaurant, Retail, Education, Houses of Worship
Enclosure Type:
Bass Reflex Cabinet (Subwoofer)
Material:
Aluminium (Speaker), Aluminium with Plastic Side Cover (Subwoofer)
Operating Temperature Range:
-10 to 50°C (Speaker)
Included Accessories:
Wall Mounting Bracket, PSD241 Power Supply 24V/1.67A
Performance
Amplifier Class:
Class D
Impedance Rating:
Speaker: 12Ω, Amplifier: 20kΩ (Balanced Stereo)/47kΩ (Balanced Microphone)
SNR Ratio:
>85dB (Subwoofer), >95dB (Amplifier)
Loudspeaker Sound Level:
106dB (Speaker), 108dB (Subwoofer)
Loudspeaker Power Rating:
Speaker: 60W (RMS/AES)/Subwoofer: 100W (RMS/AES)/400W (Peak)
Loudspeaker Frequency Rating:
Speaker: 100Hz to 17kHz@±3dB/80Hz to 19kHz@-10dB, Subwoofer: 90Hz to 350Hz@±3dB/45Hz to 350Hz@-10dB
Amplifier Frequency Rating:
47 to 63Hz
Amplifier Sensitivity:
-10 to +4dBV (Balanced Stereo), -45 to -20dBV (Balanced Microphone)
Amplifier Power Rating:
2x15W@4Ω, 2x7.5W@8Ω, 30W@8Ω
Inputs and Ports
Number of I/O Connector:
Subwoofer: 1 (Input), 1 (Output), Amplifier: 5 (Input), 1 (Output), 3 (Other)
I/O Interface Type:
Subwoofer: 3-Pin Euro Terminal Block (Input)/2-Pin Euro Terminal Block (Output), Amplifier: Unbalanced Stereo (Input)/Balanced Microphone (Input)/RS-485 & Differential Audio (Input)/RS-232 (Input)/Ethernet (Input)/Stereo Loudspeaker (Output)
Power
Voltage Rating:
100V (Speaker), 24V DC (Amplifier)
Dimensions
Width:
7cm (Speaker), 55.8cm (Subwoofer), 10.8cm (Amplifier)
Depth:
10.5cm (Speaker), 14.9cm (Subwoofer), 16.5cm (Amplifier)
Height:
50.5cm (Speaker), 38.3cm (Subwoofer), 4.4cm (Amplifier)
Weight:
2.5kg (Speaker), 9.7kg (Subwoofer), 0.8kg (Amplifier)
